Removal

1UR-FSE COOLING: COOLING FAN MOTOR (for 2WD): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

4. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

5. REMOVE NO. 1 AIR CLEANER INLET Removal

6. REMOVE ENGINE ROOM SIDE COVER RH Removal

7. REMOVE ENGINE ROOM SIDE COVER LH Removal

8. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair

9. DRAIN ENGINE COOLANT Service and Repair

10. DISCONNECT NO. 1 RADIATOR HOSE

11. DISCONNECT NO. 2 RADIATOR HOSE

12. REMOVE ECM OUTLET DUCT Removal

13. REMOVE RADIATOR RESERVOIR ASSEMBLY Removal

14. REMOVE FAN SHROUD WITH FAN AND MOTOR

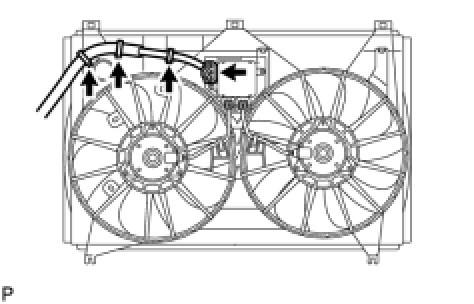

(a) Disconnect the cooling fan ECU connector.

(b) Using a clip remover, detach the 3 clamps.
