Windshield Washer Motor: Testing and Inspection

WIPER AND WASHER: WASHER MOTOR: INSPECTION

1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

HINT
This check should be performed with the front washer motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.

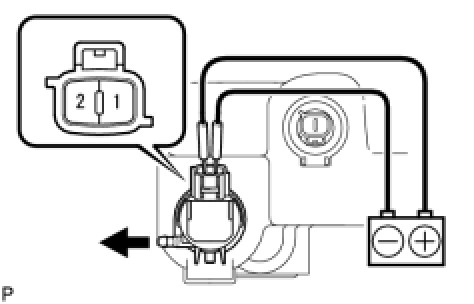

(b) Connect the positive (+) battery lead to terminal 1 of the washer motor and pump and the negative (-) lead to terminal 2.

(c) Check that washer fluid flows from the washer jar.

OK:

Washer fluid flows from washer jar.

2. INSPECT HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

HINT
This check should be performed with the headlight cleaner motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.

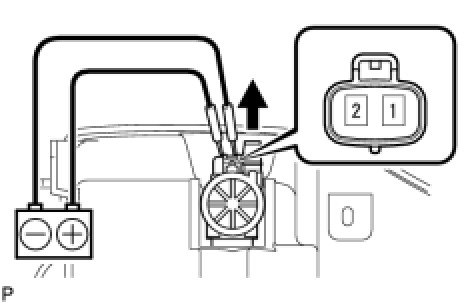

(b) Connect the positive (+) battery lead to terminal 1 of the headlight cleaner motor and pump and the negative (-) lead to terminal 2.

(c) Check that washer fluid flows from the washer jar.

OK:

Washer fluid flows from washer jar.
