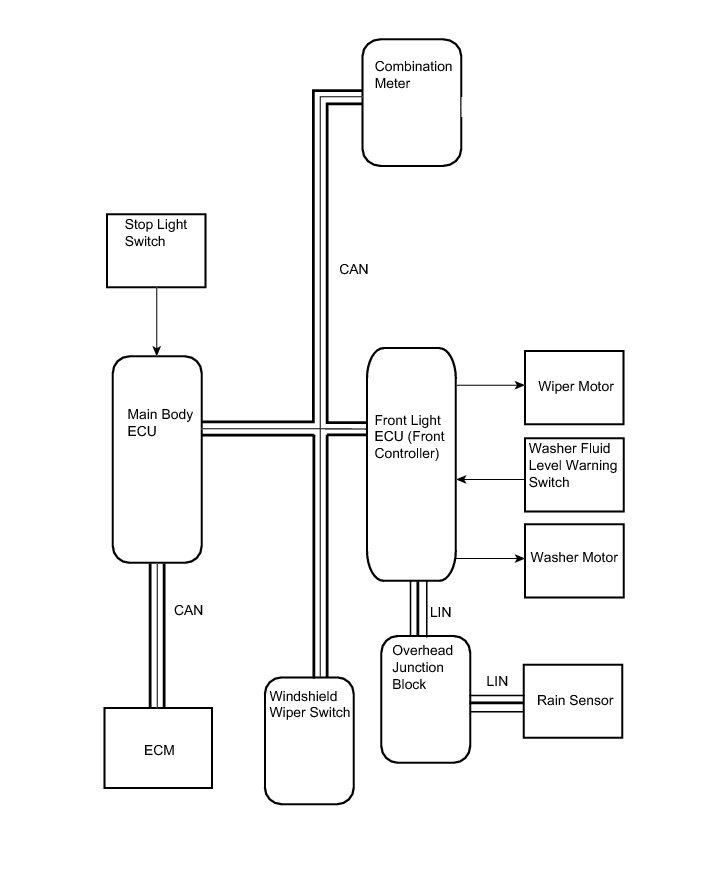

System Diagram
WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM

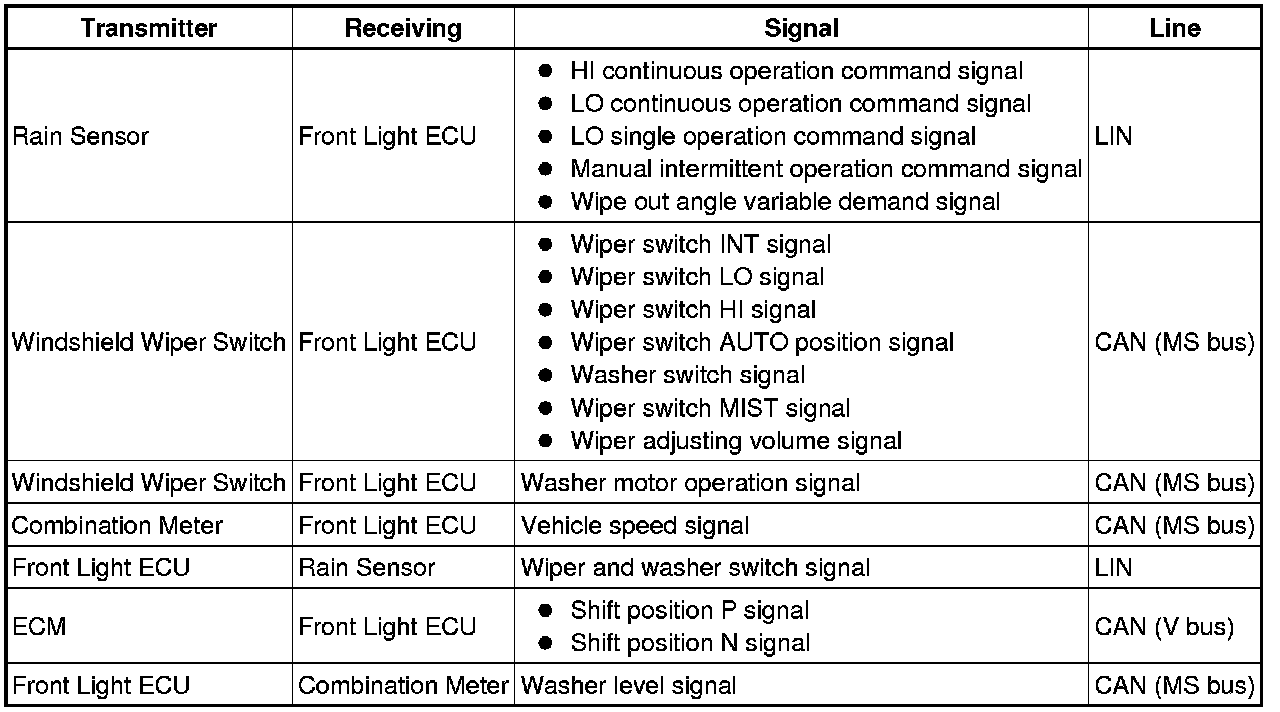

Communication table
HINT
* Wiper operation is controlled by the main body ECU.
* The rain sensor controls the auto wiper function.
WIPER AND WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM
Communication table
HINT
* Wiper operation is controlled by the main body ECU.
* The rain sensor controls the auto wiper function.
