Rear Switch Cannot Operate Right and / or Left Door Sunshade

INTERIOR: REAR DOOR SUNSHADE SYSTEM: Rear Switch cannot Operate Right and / or Left Door Sunshade
- Rear Switch cannot Operate Right and / or Left Door Sunshade

DESCRIPTION

A rear door sunshade switch signal is sent from the rear power seat switch to the rear multiplex network door ECU LH or rear multiplex network door ECU RH through CAN communication, and the rear curtain sub-assembly LH or rear curtain sub-assembly RH operate.

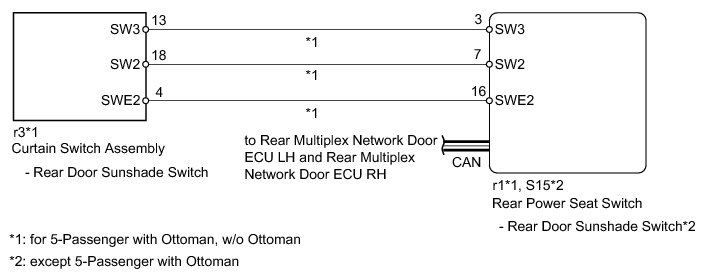

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (CAN COMMUNICATION SYSTEM)

(a) Clear the DTCs Rear Door Sunshade System.

(b) Check for DTCs Rear Door Sunshade System.

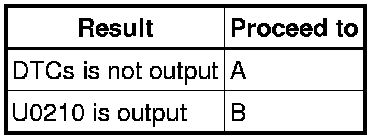

Result





B -- GO TO CAN COMMUNICATION SYSTEM CAN Communication System
A -- Continue to next step.

2. CHECK VEHICLE EQUIPMENT

(a) Check if the vehicle is equipped with the Ottoman.

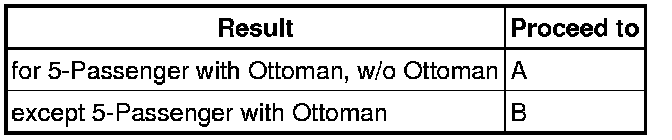

Result





B -- READ VALUE USING TECHSTREAM (REAR CONSOLE SWITCH)
A -- Continue to next step.

3. READ VALUE USING TECHSTREAM (REAR CONSOLE SWITCH)

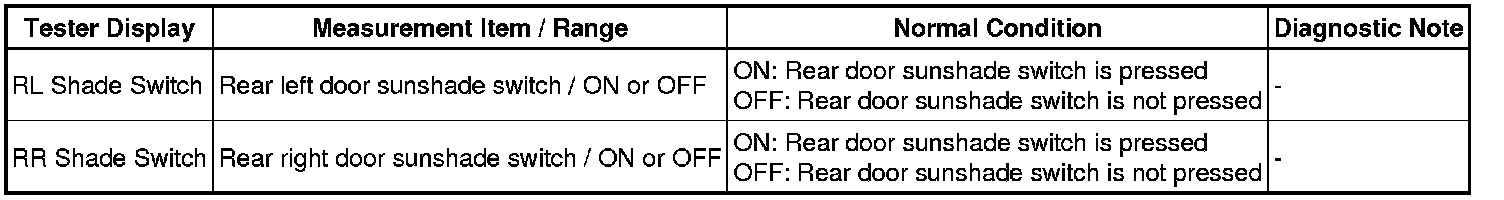

(a) Select the item below in the Data List, and read its value displayed on the Techstream to check the rear door sunshade switch Rear Door Sunshade System.

Rear Console Switch





OK:

Rear curtain is operated normally.

NG -- CHECK HARNESS AND CONNECTOR (CURTAIN SWITCH - REAR POWER SEAT SWITCH)

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

4. CHECK HARNESS AND CONNECTOR (CURTAIN SWITCH - REAR POWER SEAT SWITCH)

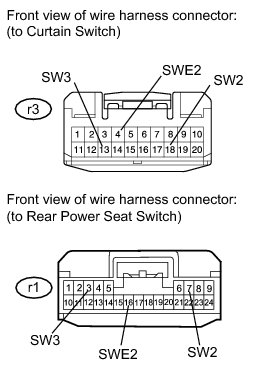

(a) Disconnect the r3 curtain switch connector.

(b) Disconnect the r1 rear power seat switch connector.

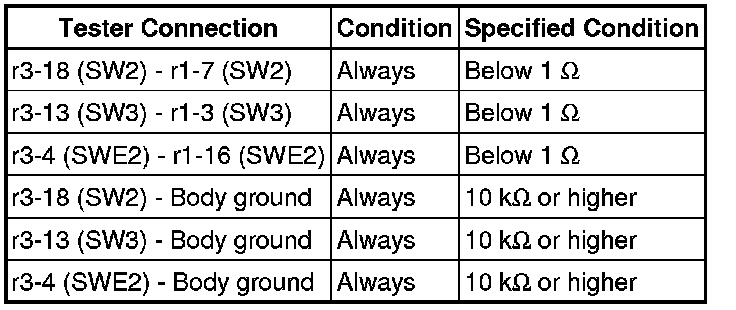

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK CURTAIN SWITCH ASSEMBLY

(a) Temporarily replace the curtain switch assembly with a new or normally functioning one Removal.

(b) Check that the curtain can be raised or lowered by using the curtain switch assembly.

OK:

Curtain can be raised or lowered with curtain switch assembly.

NG -- REPLACE REAR POWER SEAT SWITCH Removal

OK -- END (CURTAIN SWITCH IS DEFECTIVE)

6. READ VALUE USING TECHSTREAM (REAR CONSOLE SWITCH)

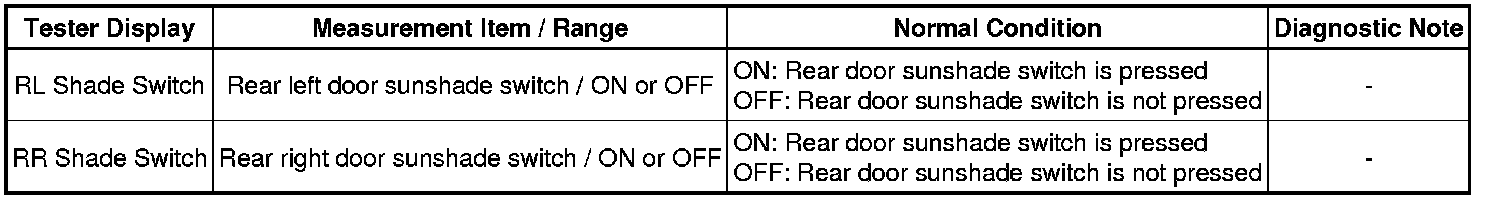

(a) Select the item below in the Data List, and read its value displayed on the Techstream to check the rear door sunshade switch Rear Sunshade System.

Rear Console Switch





OK:

Rear curtain is operated normally.

NG -- REPLACE REAR POWER SEAT SWITCH Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
