Front And Rear Switch Cannot Operate Left Door Sunshade

INTERIOR: REAR DOOR SUNSHADE SYSTEM: Front and Rear Switch cannot Operate Left Door Sunshade
- Front and Rear Switch cannot Operate Left Door Sunshade

DESCRIPTION

The rear multiplex network door ECU LH (rear door ECU LH) operates the motor of the rear curtain sub-assembly LH.

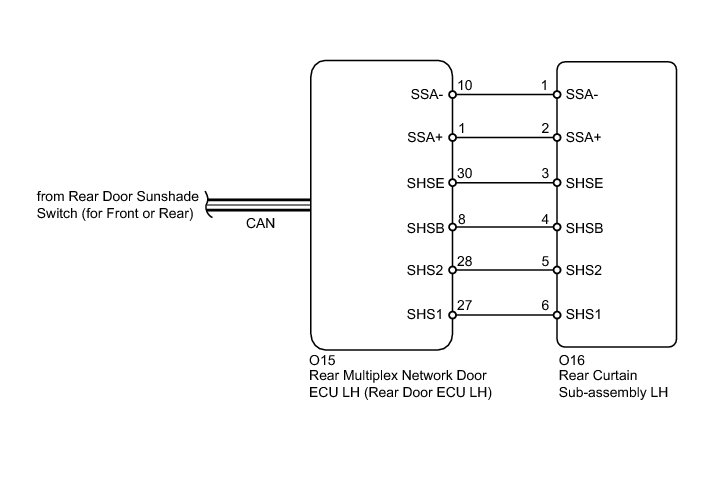

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTC Rear Door Sunshade System.

(b) Check for DTC Rear Door Sunshade System.

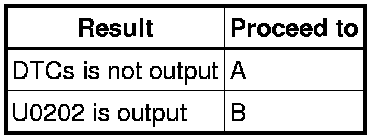

Result

B -- GO TO CAN COMMUNICATION SYSTEM CAN Communication System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (REAR LEFT DOOR)

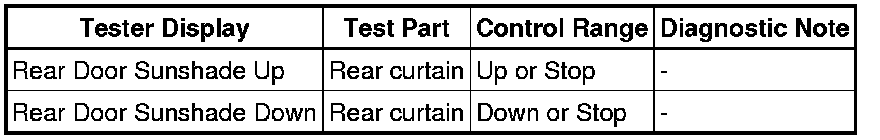

(a) Select the Active Test, use the Techstream to generate a control command, and then check that the rear door sunshade system operates Rear Door Sunshade System.

Rear Left Door

OK:

Rear curtain is operated normally.

NG -- CHECK HARNESS AND CONNECTOR (REAR CURTAIN LH - REAR DOOR ECU LH)

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

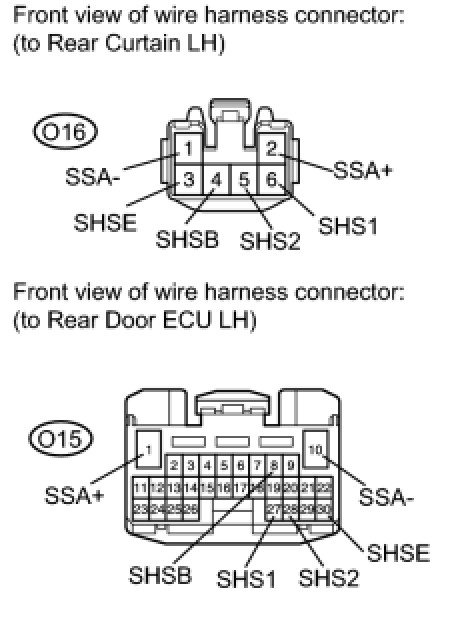

3. CHECK HARNESS AND CONNECTOR (REAR CURTAIN LH - REAR DOOR ECU LH)

(a) Disconnect the O15 ECU connector.

(b) Disconnect the O16 curtain connector.

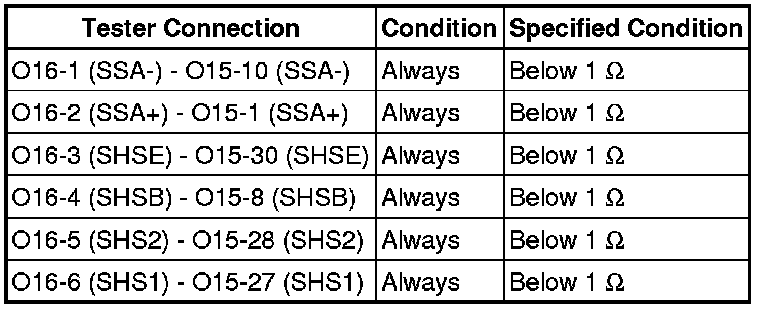

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT REAR CURTAIN SUB-ASSEMBLY LH (REAR CURTAIN LH)

(a) Remove the rear curtain LH Removal.

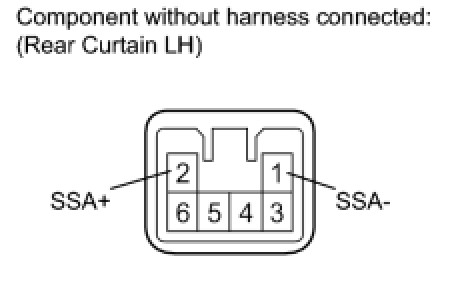

(b) Apply battery voltage and check the operation of the rear curtain LH.

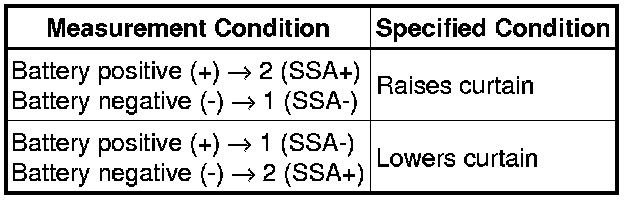

Standard:

(d) Measure the waveform according to the value(s) in the table below.

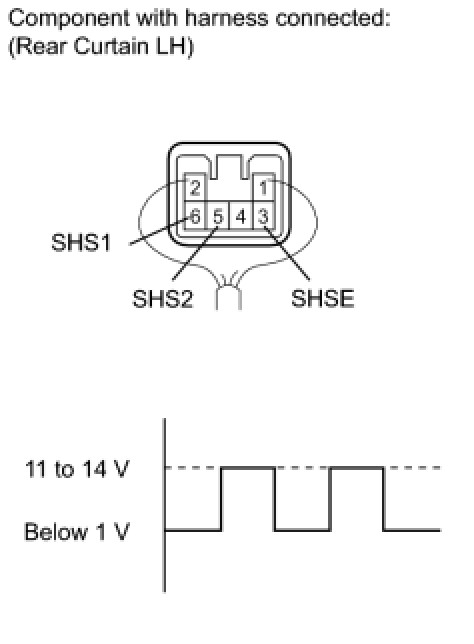

Waveform (Reference)

NG -- REPLACE REAR CURTAIN SUB-ASSEMBLY LH Removal

OK -- REPLACE REAR MULTIPLEX NETWORK DOOR ECU LH Removal
