Installation

INTERIOR: REAR SUNSHADE ASSEMBLY: INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL REAR SUNSHADE ASSEMBLY





(a) Temporarily install the rear sunshade withe the bolt labeled A.

(b) Install the 4 bolts and tighten the bolt labeled A.

2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY

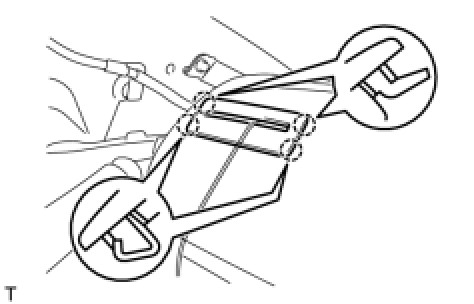

(a) Attach the 5 claws and 3 clips to install the No. 2 package tray trim panel.

3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY Installation

4. INSTALL REAR NO. 4 AIR DUCT (w/ Rear Cooler) Installation

5. INSTALL REAR NO. 5 AIR DUCT (w/ Rear Cooler) Installation

6. INSTALL ROOF SIDE NO. 2 AIR DUCT LH (w/ Rear Cooler) Installation

7. INSTALL ROOF SIDE NO. 2 AIR DUCT RH (w/ Rear Cooler) Installation

8. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

(a) w/ Rear Cooler:

(1) Connect the solar sensor connector.





(b) except 4-Passenger with Ottoman:

(1) Pass the 3 rear seat belt floor anchors through the package tray trim panel.





(c) for 4-Passenger with Ottoman:

(1) Pass the 2 rear seat belt floor anchors through the package tray trim panel.

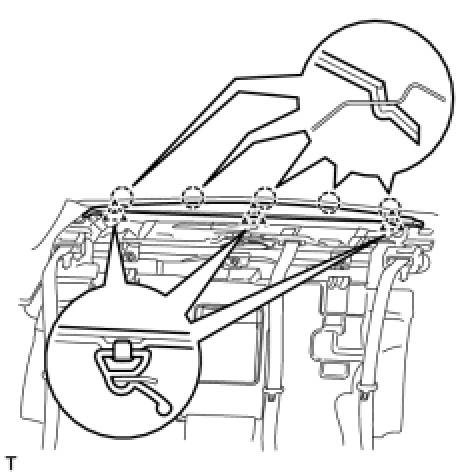

(d) Insert the rear part of the package tray trim panel into the rear sunshade.

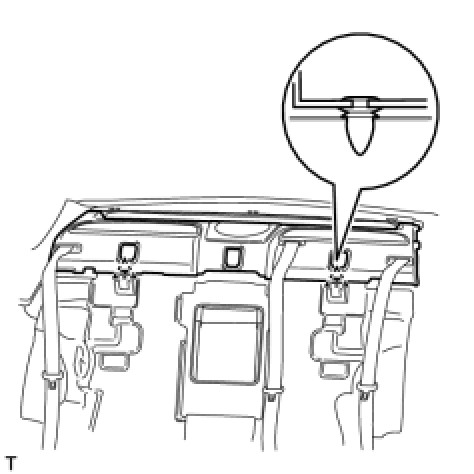

(e) Attach the 2 clips to install the package tray trim panel.





(f) except 4-Passenger with Ottoman:

(1) Attach the 4 claws to install the 3 belt guides.

(g) for 4-Passenger with Ottoman:

(1) Attach the 4 claws to install the 2 belt guides.

9. INSTALL ROOF SIDE GARNISH INNER LH Installation

10. INSTALL ROOF SIDE GARNISH INNER RH Installation

11. INSTALL REAR SEAT SIDE GARNISH LH Installation

12. INSTALL REAR SEAT SIDE GARNISH RH Installation

13. INSTALL REAR DOOR SCUFF PLATE LH

(a) for Standard Body:

Install the rear door scuff plate Installation.

(b) for Long Body:

Install the rear door scuff plate Installation.

14. INSTALL REAR DOOR SCUFF PLATE RH

(a) for Standard Body:

Install the rear door scuff plate Installation.

(b) for Long Body:

Install the rear door scuff plate Installation.

15. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

(a) Install the rear seat assembly Installation.

16. INSTALL REAR SEAT ASSEMBLY (for Power Seat)

(a) Install the rear seat assembly Installation.

17. INSTALL REAR SEAT ASSEMBLY (for 5-Passenger with Ottoman)

(a) Install the rear seat assembly Installation.

18. INSTALL REAR SEAT ASSEMBLY (for 4-Passenger with Ottoman)

(a) Install the rear seat assembly Installation.

19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

20. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

21. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
