Front Door Window Regulator: Testing and Inspection

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR (for Front Door): INSPECTION

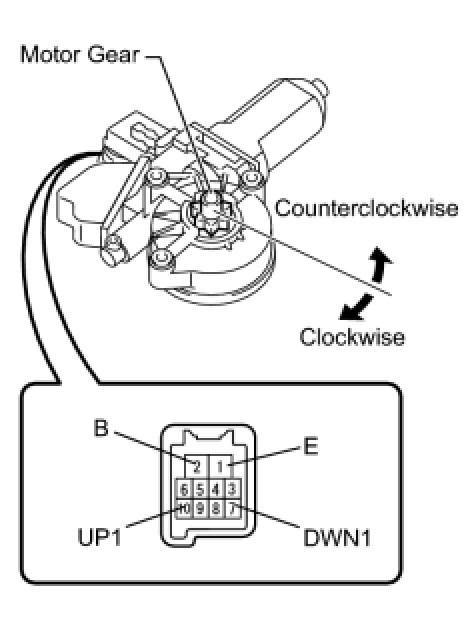

1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front LH)

(a) Apply positive (+) battery voltage to the connector terminal 2.





NOTICE:
Do not apply positive (+) battery voltage to any terminals, except terminal 2, to avoid damaging the pulse sensor inside the motor.

(b) Apply negative (-) battery voltage to the connector terminals 1 and 7 / 10.

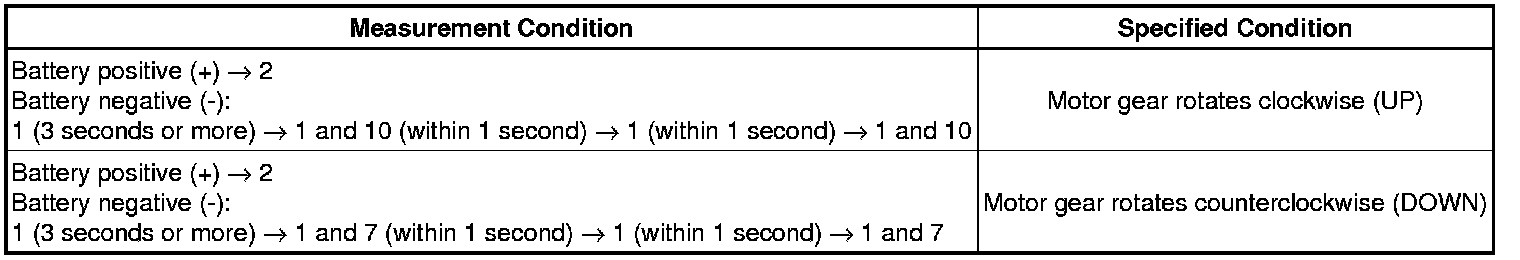

(c) Check that the motor gear rotates smoothly as follows.

OK:





* If the result is not as specified, replace the regulator motor assembly.

CAUTION:
Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.

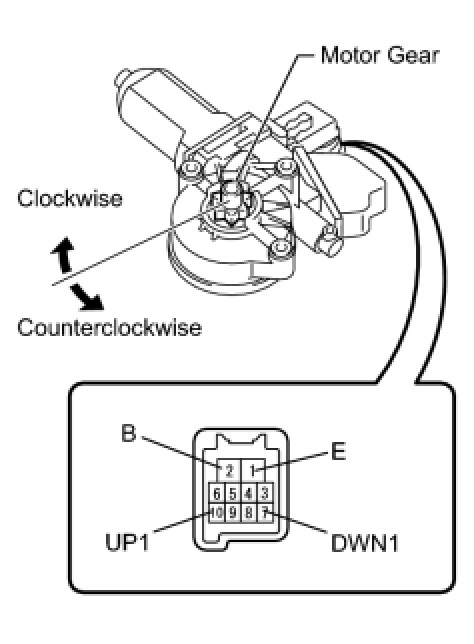

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front RH)

(a) Apply positive (+) battery voltage to the connector terminal 2.





NOTICE:
Do not apply positive (+) battery voltage to any terminals, except terminal 2, to avoid damaging the pulse sensor inside the motor.

(b) Apply negative (-) battery voltage to the connector terminals 1 and 7 / 10.

(c) Check that the motor gear rotates smoothly as follows.

OK:





* If the result is not as specified, replace the regulator motor assembly.

CAUTION:
Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.
