AA80F Automatic Transmission

AA80F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSPECTION

1. INSPECT SHIFT SOLENOID VALVE SL1





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

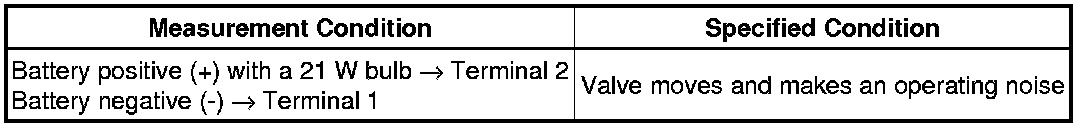

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

2. INSPECT SHIFT SOLENOID VALVE SL2





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

3. INSPECT SHIFT SOLENOID VALVE SL3





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

4. INSPECT SHIFT SOLENOID VALVE SL4





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

5. INSPECT SHIFT SOLENOID VALVE SL5





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Measure the resistance according to the value(s) in the table below.

OK:





If the result is not as specified, replace the solenoid valve.

6. INSPECT SHIFT SOLENOID VALVE SL





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

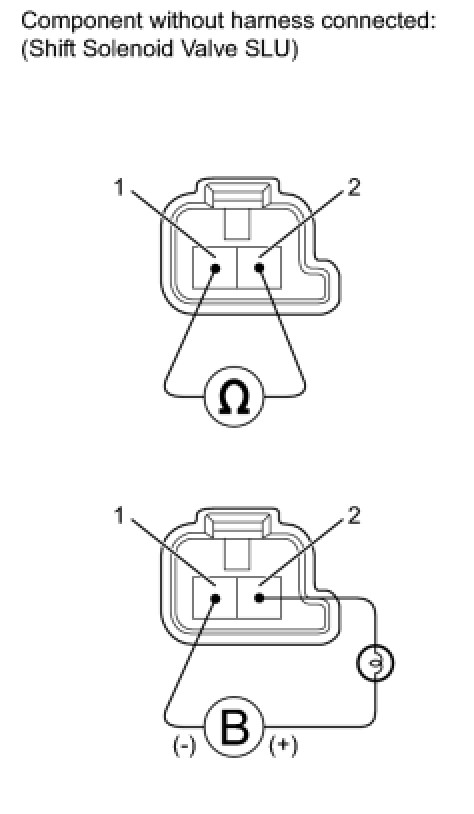

7. INSPECT SHIFT SOLENOID VALVE SLU





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

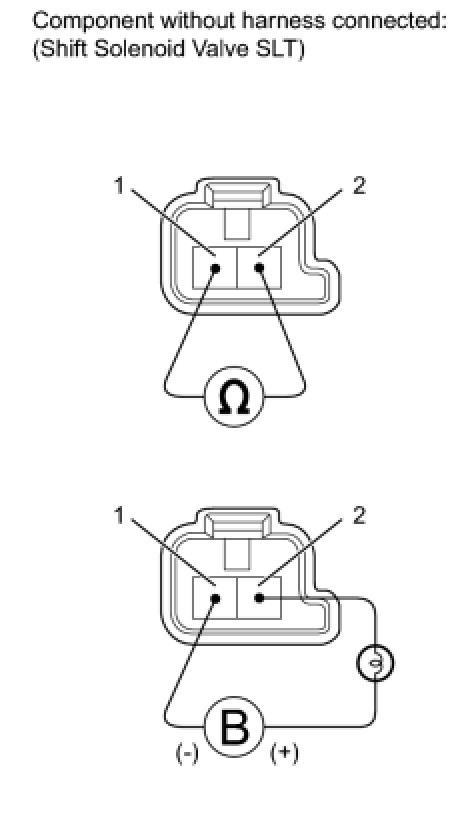

8. INSPECT SHIFT SOLENOID VALVE SLT





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

9. INSPECT SHIFT SOLENOID VALVE SR





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.
