Transmission Control Switch Circuit

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: Transmission Control Switch Circuit
- Transmission Control Switch Circuit

DESCRIPTION

After moving the shift lever to M*1 or S*2, it is possible to switch the shift range between "1" and "8" using the transmission control switch.

Moving the shift lever to "+" once raises the shift range by one, and moving the shift lever to "-" lowers the shift range by one.

*1: w/ Sport Package

*2: w/o Sport Package

HINT
Depending on the specifications of the vehicle, the shift lever will have an "S" or "M" position. The following inspection procedure refers to this position as the "S" shift lever position.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Disconnect the L42 transmission control switch connector.

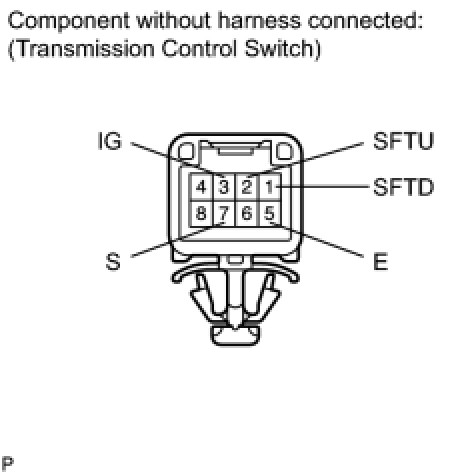

(b) Measure the resistance according to the value(s) in the table below.

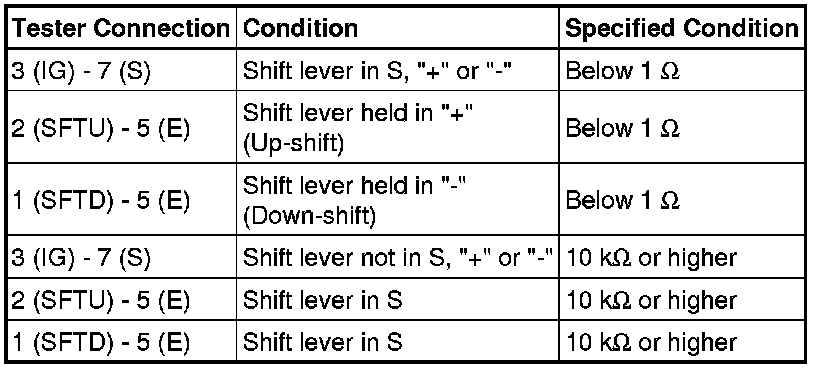

Standard Resistance:





NG -- REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (TRANSMISSION CONTROL SWITCH) Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BATTERY, BODY GROUND)

(a) Disconnect the L42 transmission control switch connector.





(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

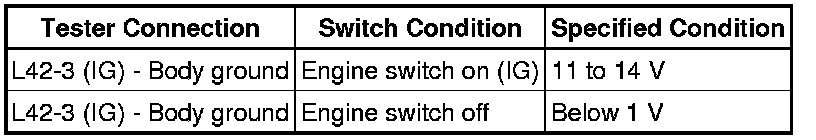

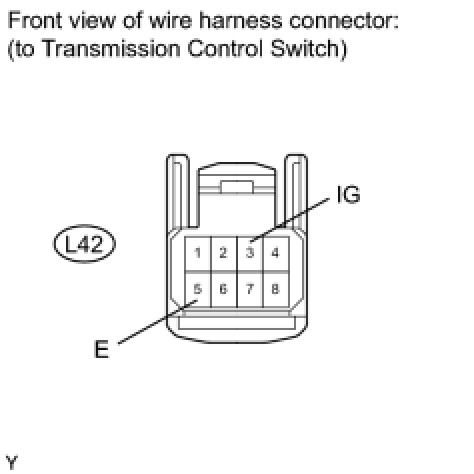

Standard Voltage:





(d) Turn the engine switch off.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

(a) Turn the engine switch on (IG).





(b) Measure the voltage according to the value(s) in the table below.

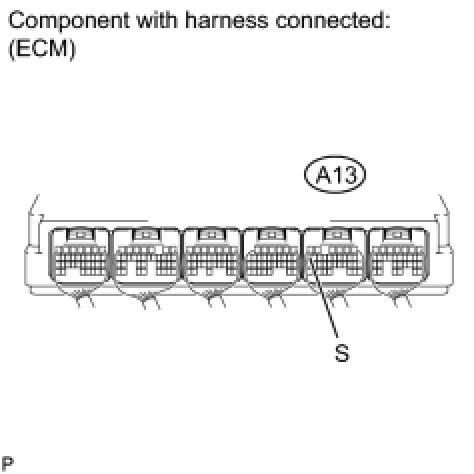

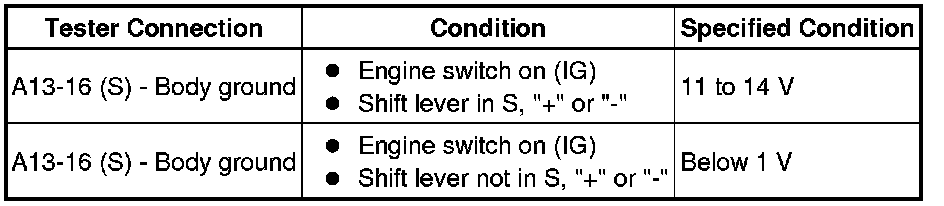

Standard Voltage:





(c) Turn the engine switch off.





(d) Disconnect the A13 ECM connector.

(e) w/ Sport Package:

Disconnect the transmission shift switch assembly (shift paddle switch) connector.

(f) Measure the resistance according to the value(s) in the table below.

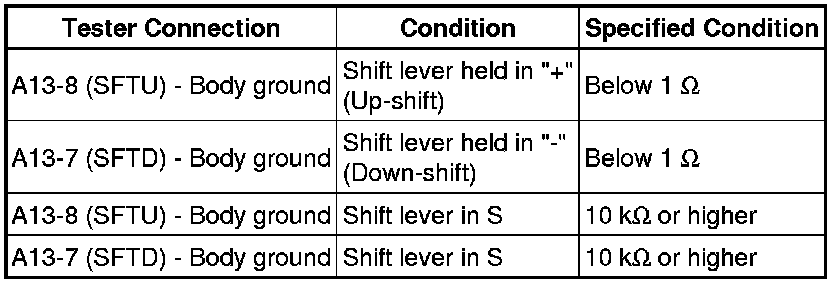

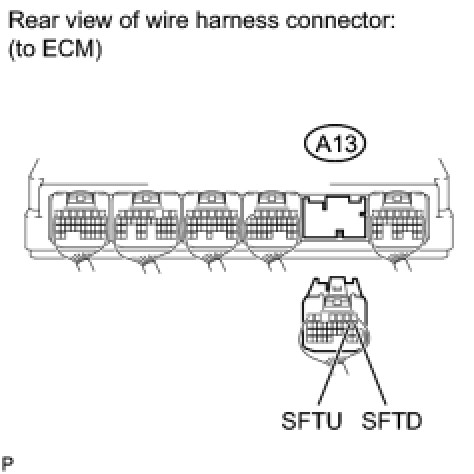

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE AA80E Automatic Transmission System
