AA80E Automatic Transmission

AA80E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

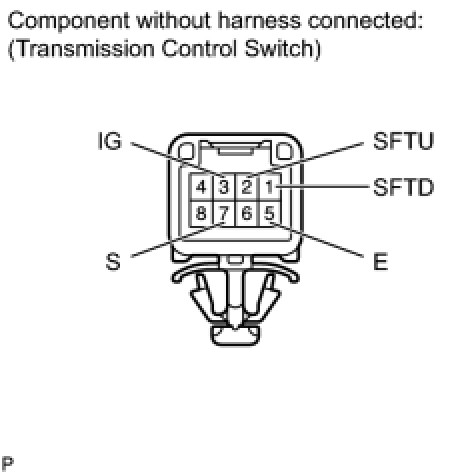

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Measure the resistance between each terminal of the shift lock control unit assembly when the shift lever is moved to each position.

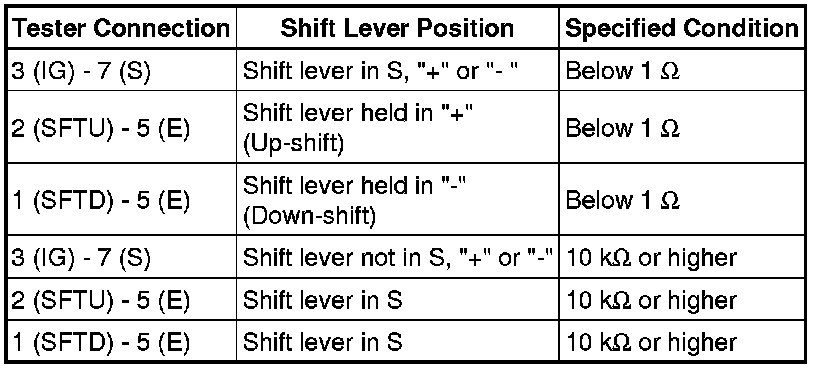

Standard resistance:





If the resistance value is not as specified, replace the transmission floor shift assembly.
