Inspection

AA80E AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSPECTION

1. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (RH (+))

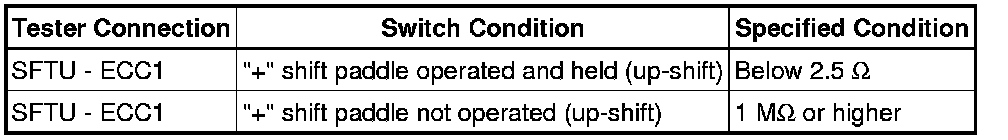

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





If the result is not as specified, replace the transmission shift switch assembly (RH (+)).

2. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (LH (-))

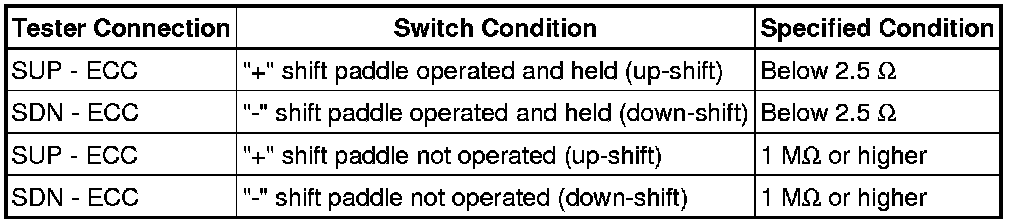

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





If the result is not as specified, replace the transmission shift switch assembly (LH (-)).
