Disassembly

AA80F AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: DISASSEMBLY

1. REMOVE SHIFT POSITION INDICATOR

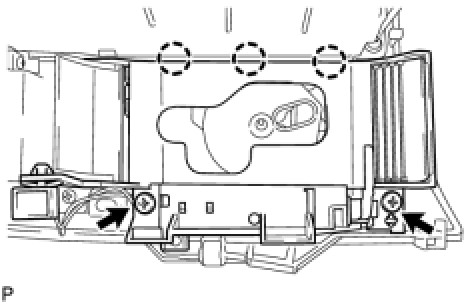

(a) Remove the 2 screws and detach the 3 hooks. Then remove the shift position indicator from the rear console upper panel.

2. REMOVE CONTROL POSITION INDICATOR PLATE

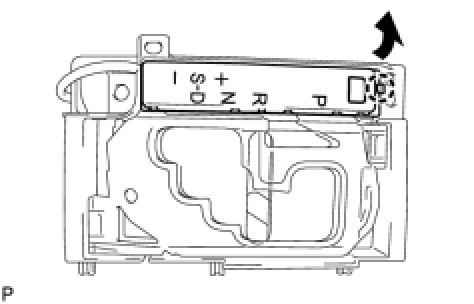

(a) Using a small screwdriver, detach the claw and remove the indicator plate.

3. REMOVE SHIFT LEVER CAP

(a) Detach the 2 claws and remove the shift lever cap.

4. REMOVE POSITION INDICATOR LENS





(a) Using a small screwdriver, detach the 4 claws and remove the lens from the shift position indicator.

5. REMOVE POSITION INDICATOR SLIDE COVER





(a) Remove the position indicator slide cover from the shift position indicator.

(b) Remove the No. 2 slide cover from the slide cover.

6. REMOVE SHIFT LOCK RELEASE BUTTON

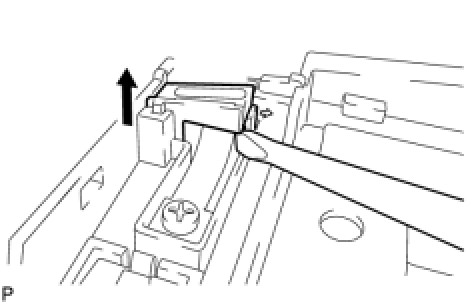

(a) Using a small screwdriver, detach the claw and remove the button.

7. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY





(a) Detach the connector clamp.

(b) Using a small screwdriver, detach the 2 claws and remove the wire.
