Inspection

AA80F AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: INSPECTION

1. INSPECT SHIFT LOCK SOLENOID

(a) Measure the resistance according to the value(s) in the table below.





HINT
Disconnect the solenoid connector.

Standard Resistance:





If the result is not as specified, replace the transmission floor shift assembly.

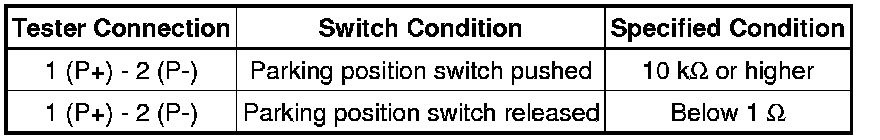

(b) Measure the resistance according to the value(s) in the table below.





HINT
Disconnect the solenoid connector.

Standard Resistance:





If the result is not as specified, replace the transmission floor shift assembly.
