Inspection

AA80E AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: INSPECTION

1. INSPECT SHIFT LOCK SOLENOID

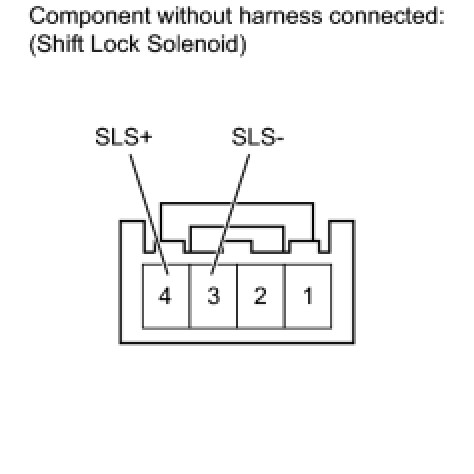

(a) Measure the resistance according to the value in the table below.





HINT
Disconnect the solenoid connector.

Standard resistance:





If the result is not as specified, replace the transmission floor shift assembly.

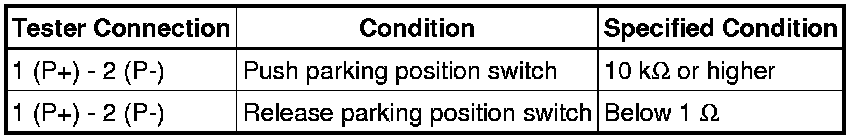

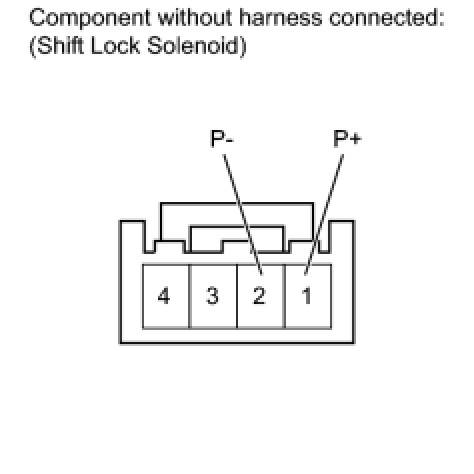

(b) Measure the resistance according to the values in the table below.





HINT
Disconnect the solenoid connector.

Standard resistance:





If the result is not as specified, replace the transmission floor shift assembly.
