Replacement

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION REAR OIL SEAL: REPLACEMENT

1. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

(a) Remove the propeller with center bearing shaft Removal.

2. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

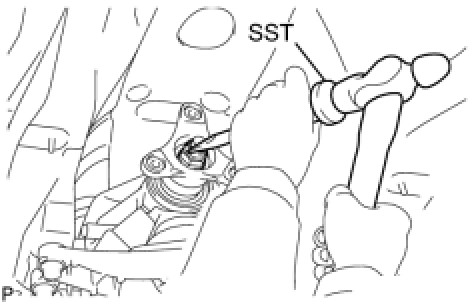

(a) Using SST and a hammer, loosen the staked part of the nut.

SST : 09930-00010

HINT
Move the shift lever to P.

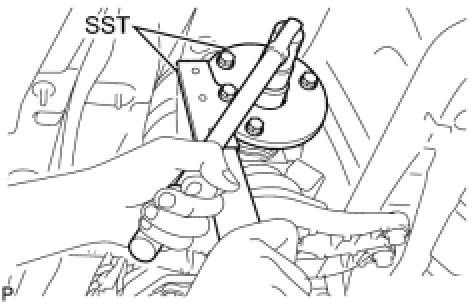

(b) Set SST.

SST : 09330-00021

SST : 09950-30012

09955-03040





(c) Using SST and a 30 mm socket wrench, remove the nut.

(d) Remove SST.

(e) Tap out the flange yoke with a plastic-faced hammer to remove it.

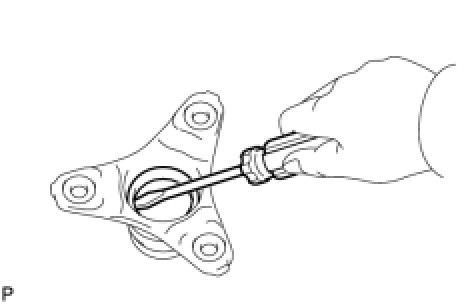

(f) Using a screwdriver, pry out the oil seal from the automatic transmission flange yoke.





3. REMOVE AUTOMATIC TRANSMISSION REAR OIL SEAL

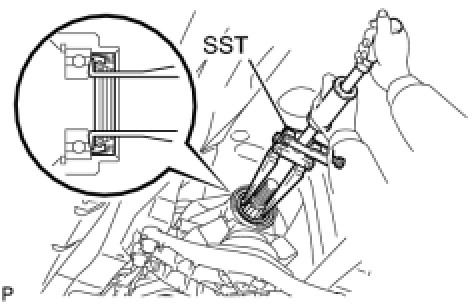

(a) Using SST, tap out the oil seal.

SST : 09308-00010

4. INSTALL AUTOMATIC TRANSMISSION REAR OIL SEAL

(a) Coat the lip of a new oil seal with MP grease.

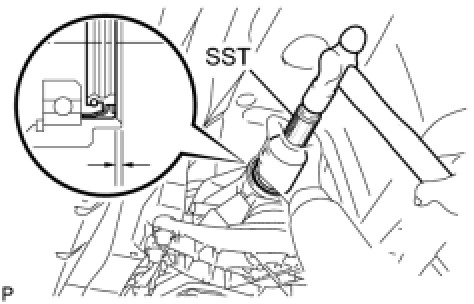

(b) Using SST and a hammer, tap in the oil seal.

SST : 09214-76011





Standard depth:

3.5 +/-0.2 mm (0.138 +/-0.008 in.)

5. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY





(a) Using SST and a hammer, tap in a new oil seal.

SST : 09950-60010

09951-00410

SST : 09950-70010

09951-07100

(b) Install the automatic transmission flange yoke.

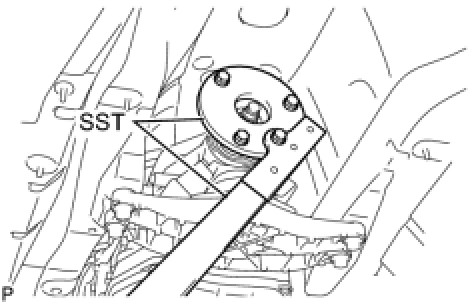

(c) Set SST.





SST : 09330-00021

SST : 09950-30012

09955-03040

(d) Using SST and a 30 mm socket wrench, install and tighten a new nut.

Torque : 126 Nm (1285 kgf-cm, 93 ft-lbf)

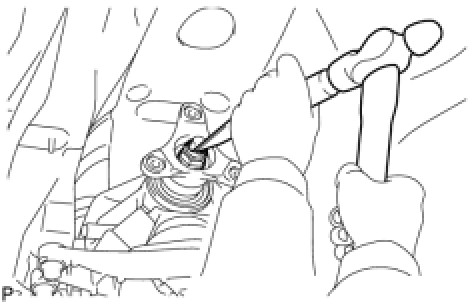

(e) Using a chisel and hammer, securely stake the nut.





6. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

(a) Install the propeller with center bearing shaft Installation.

7. ADJUST AUTOMATIC TRANSMISSION FLUID

(a) Add automatic transmission fluid AA80E Automatic Transmission.
