System Diagram





AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

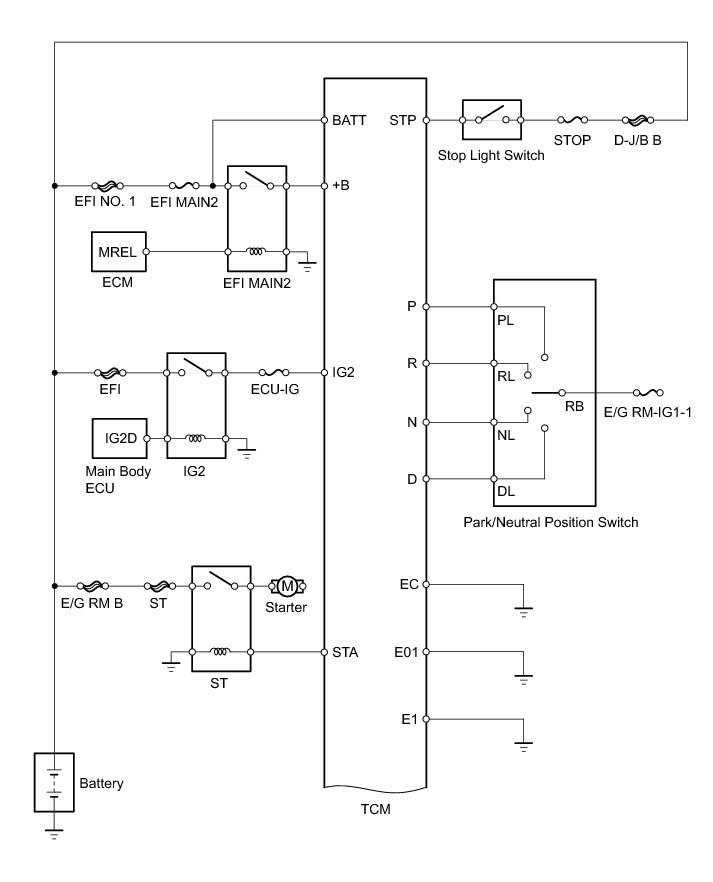

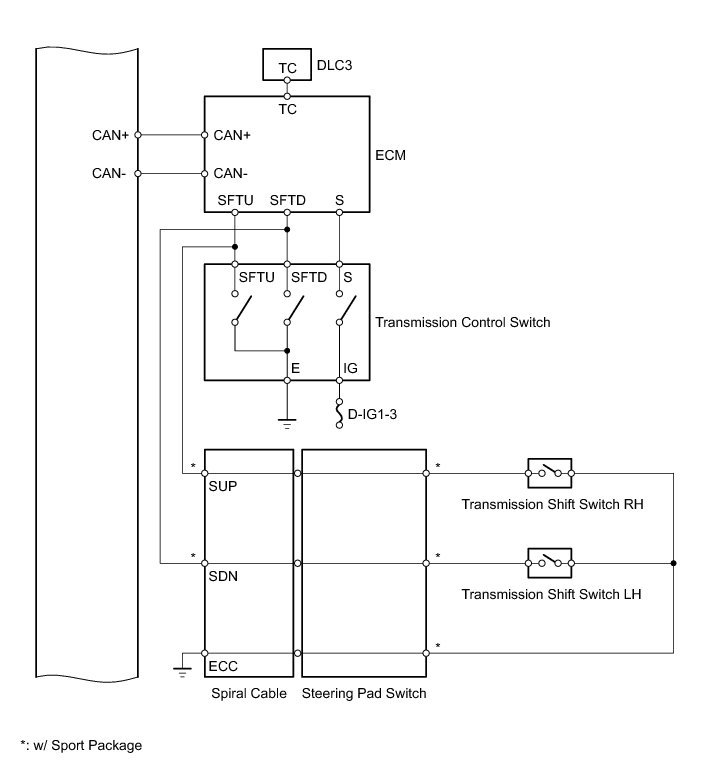

The configuration of the electronic control system in the AA80E automatic transmission is as shown in the following chart.
