Reassembly

SUSPENSION: REAR SHOCK ABSORBER: REASSEMBLY

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. INSTALL REAR COIL SPRING INSULATOR LOWER LH





(a) Install the rear coil spring insulator lower to the rear shock absorber so that both recessed parts are aligned.

2. INSTALL REAR COIL SPRING LH





(a) Using SST, compress the coil spring.

SST : 09727-30021

09727-00010

09727-00021

09727-00031

NOTICE:
Do not use an impact wrench. It will damage SST.





(b) Install the coil spring so that the end comes to the stepped portion of the coil spring insulator lower.

3. INSTALL REAR COIL SPRING INSULATOR UPPER LH





(a) Align the bolt of the rear suspension support and the cutout of the rear coil spring insulator, and install the rear coil spring insulator on the rear suspension support.

(b) Align the width across flat of the piston rod end and of the rear suspension support to install the rear shock absorber.

4. INSTALL REAR SUSPENSION SUPPORT ASSEMBLY

(a) Install the suspension support assembly with the insulator upper to the shock absorber.

5. INSTALL REAR SUPPORT TO REAR SHOCK ABSORBER LH COLLAR

(a) Install the collar to the shock absorber.

6. INSTALL REAR SUPPORT TO REAR SHOCK ABSORBER LH NUT

(a) Temporarily install a new lock nut to the rear shock absorber.

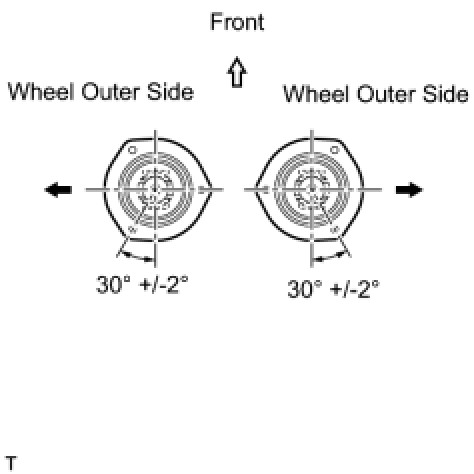

(b) Adjust the rear suspension support so that the bolts come to the positions as shown in the illustration, and remove SST from the rear coil spring.

NOTICE:
* Do not use an impact wrench.
* Make sure that the width across flat on the piston rod end is located parallel to the shock absorber bush.
* Make sure of the direction of the rear suspension support when removing SST.
