Data List / Active Test
SUSPENSION CONTROL: AIR SUSPENSION SYSTEM: DATA LIST / ACTIVE TEST
1. READ DATA LIST
HINT

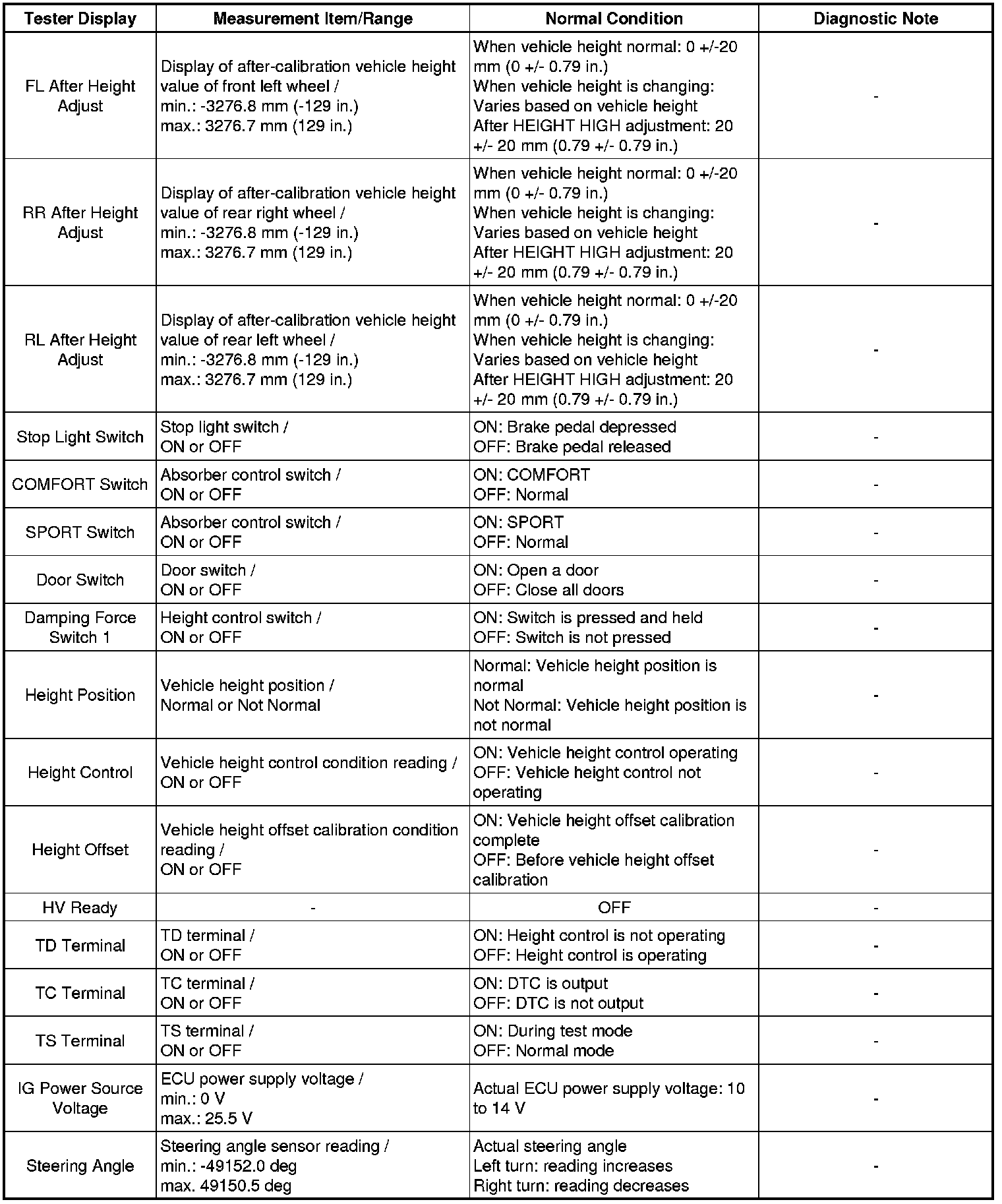

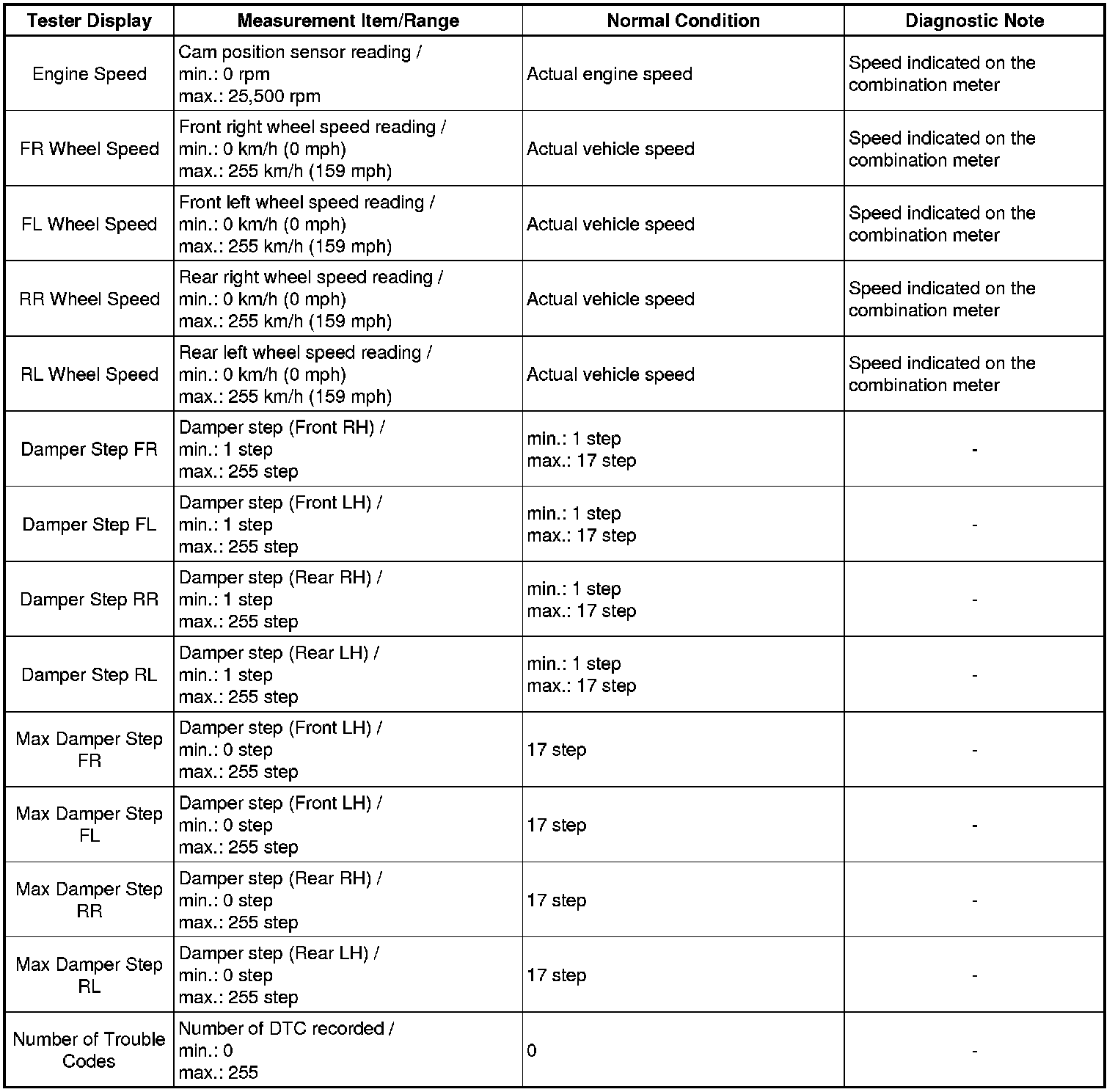

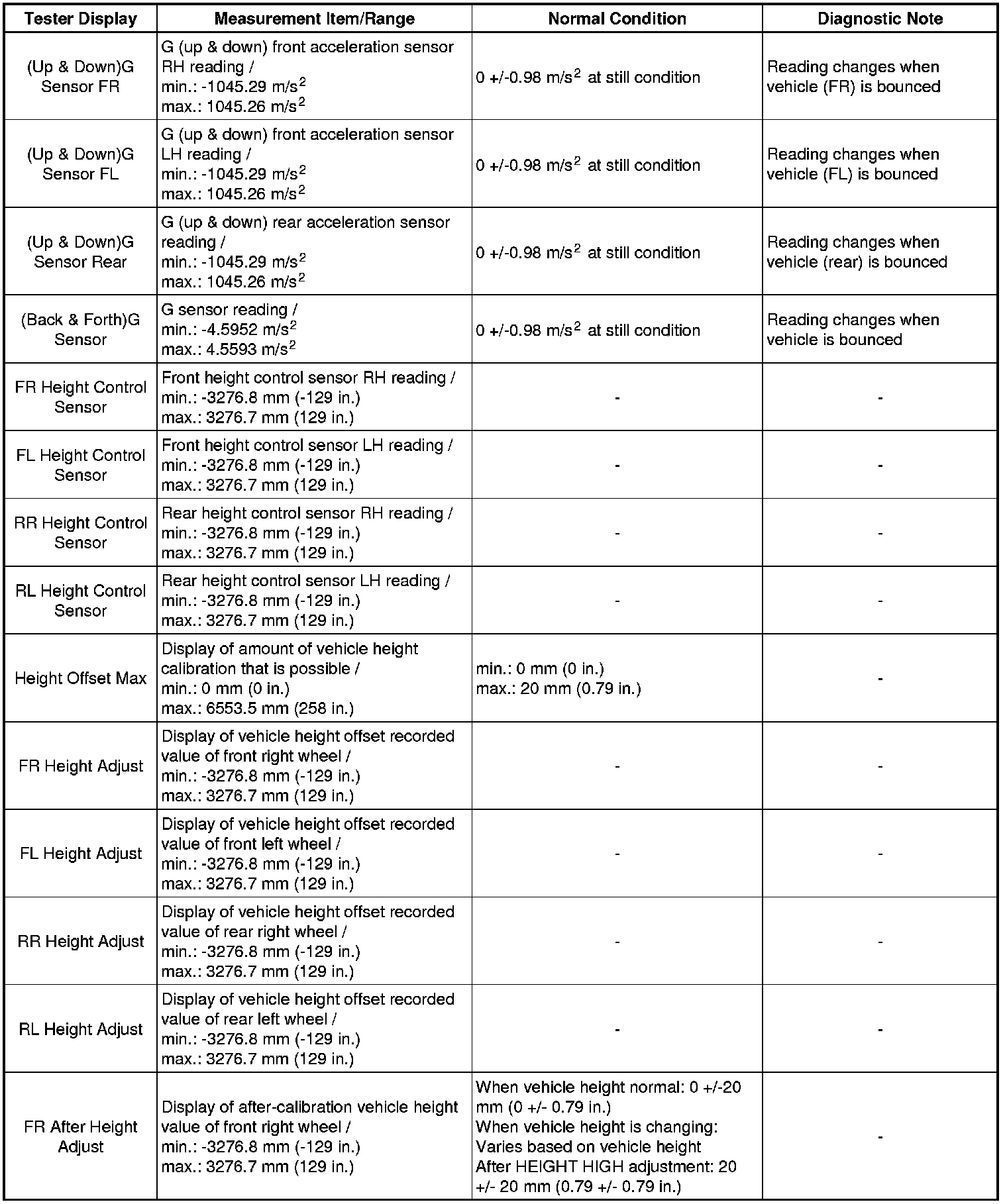

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and the Techstream on.
(c) Enter the following menus: Chassis / Air suspension / Data List.
(d) Read the Data List by following the directions on the Techstream screen.
Air suspension
(e) Enter the following menus: Body Electrical / Center Console Switch / Data List.
(f) Read the Data List by following the directions on the Techstream screen.
Center Console Switch
2. PERFORM ACTIVE TEST
HINT

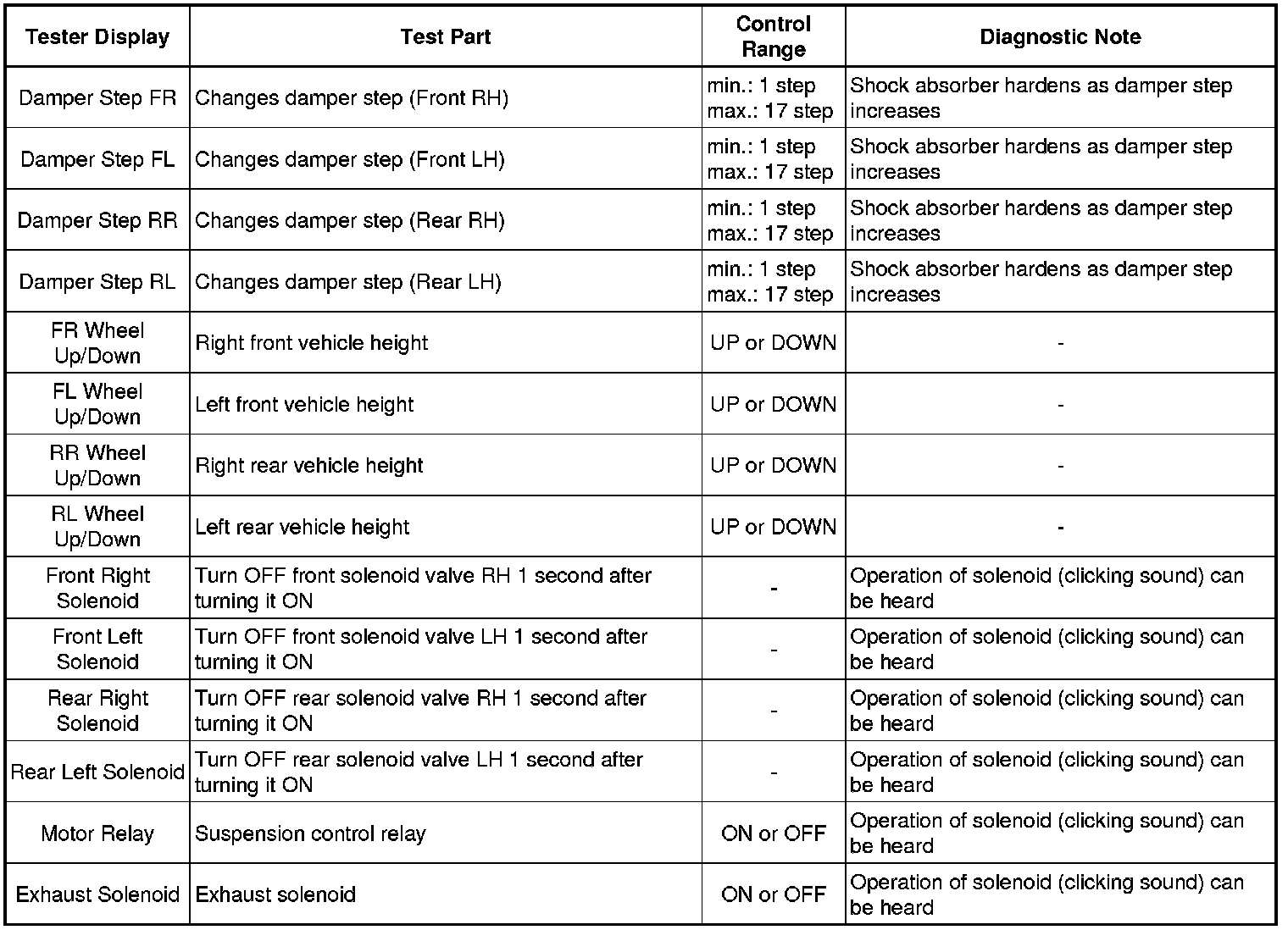

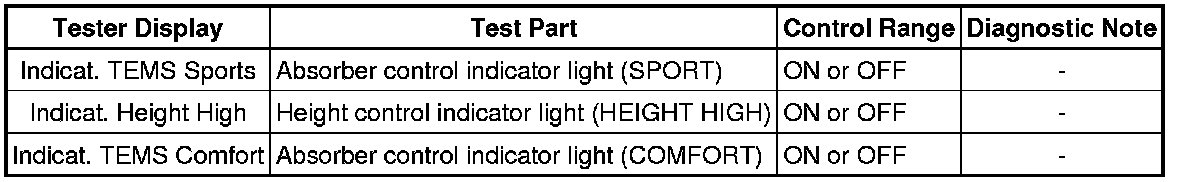

Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and the Techstream on.
(c) Enter the following menus: Chassis / Air suspension / Active Test.
(d) Perform the Active Test by following the prompts on the Techstream.
Air suspension
(e) Enter the following menus: Body Electrical / Combination Meter / Active Test.
(f) Perform the Active Test by following the prompts on the Techstream.
Combination Meter
