Pinout Values and Diagnostic Parameters

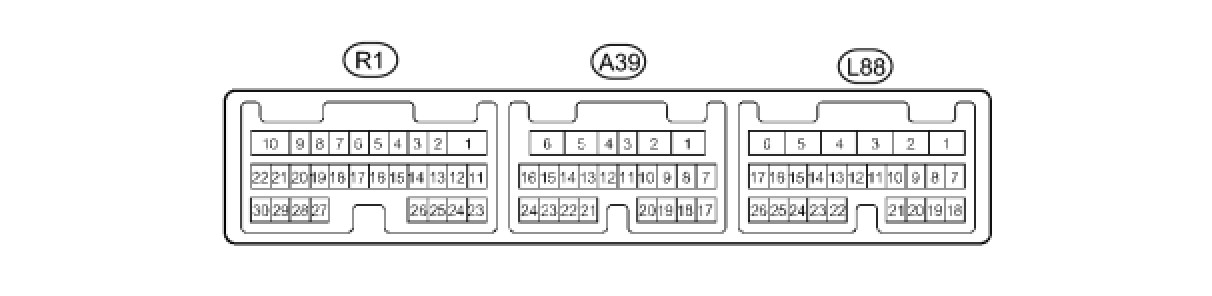

SUSPENSION CONTROL: AIR SUSPENSION SYSTEM: TERMINALS OF ECU

HINT
Inspect the connectors from the back side while the connectors are connected.

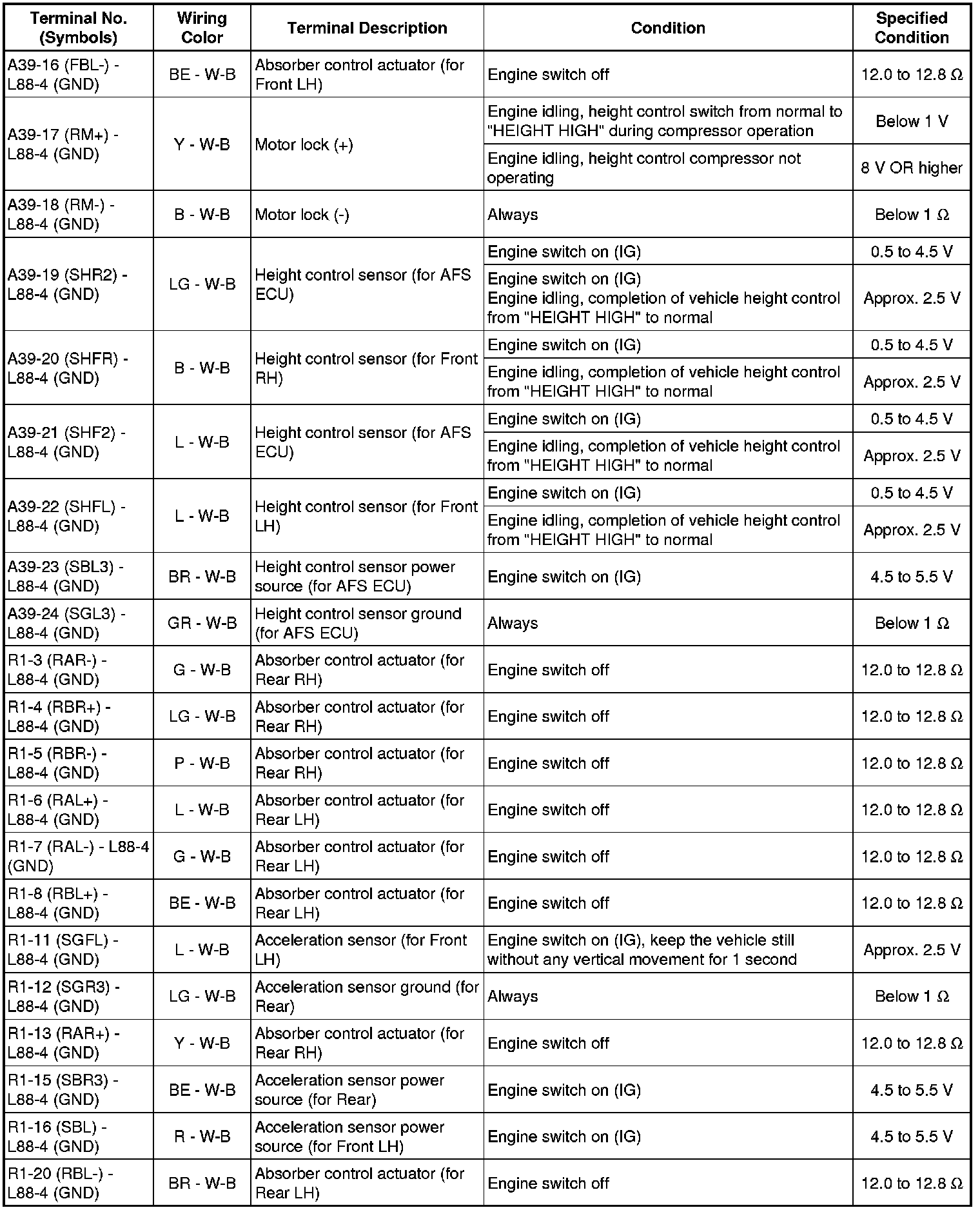

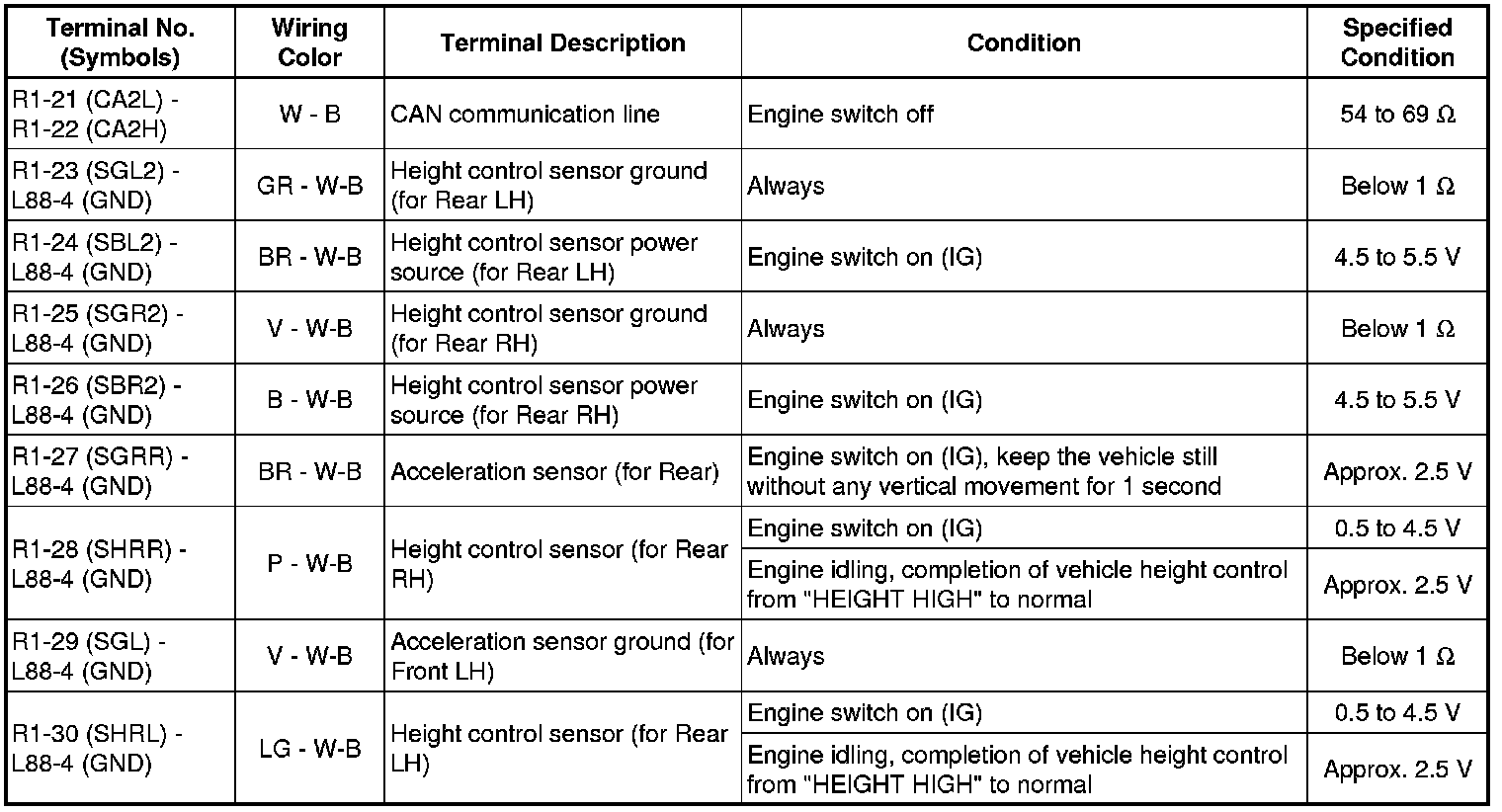

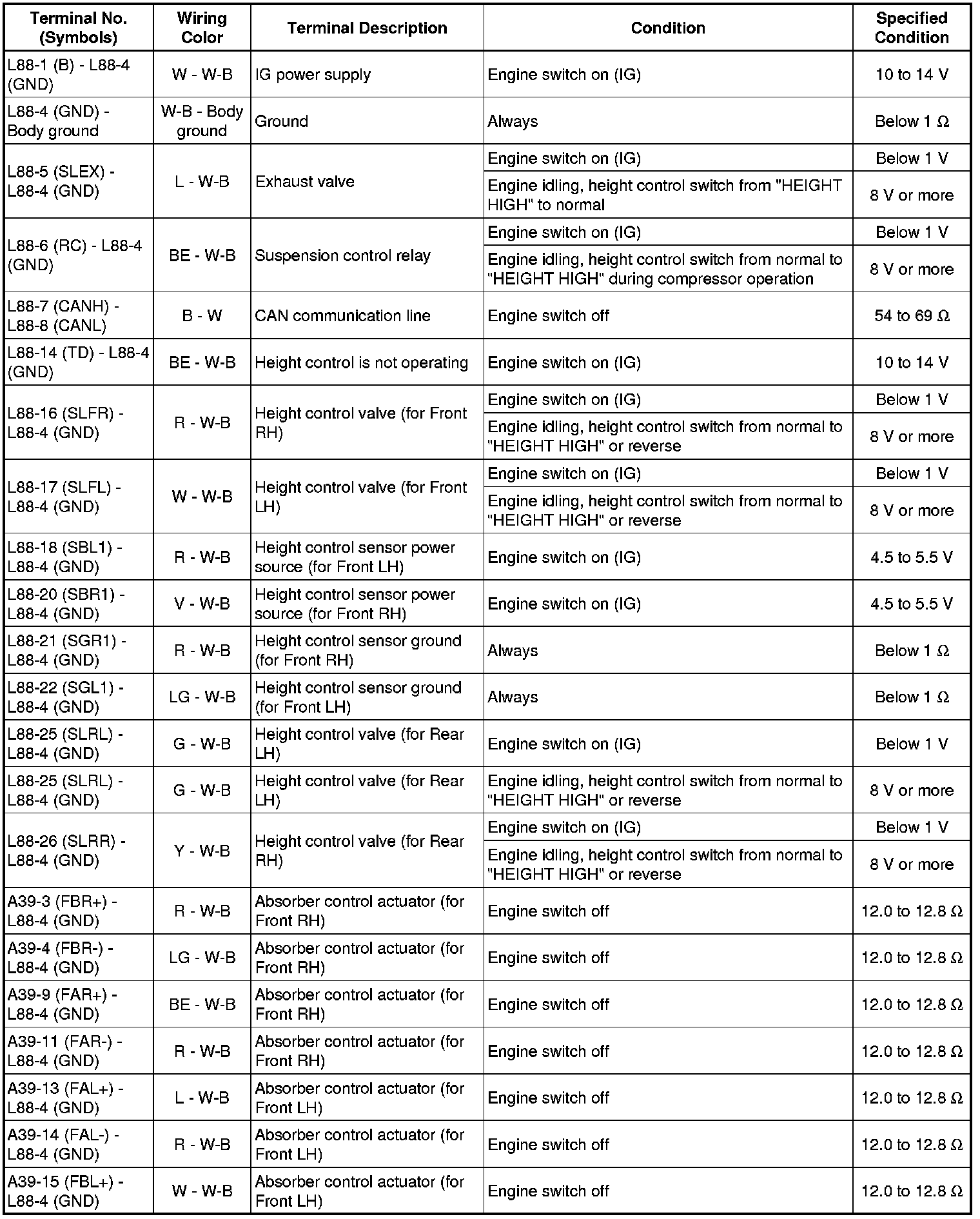

1. CHECK SUSPENSION CONTROL ECU
