Height Control Sensor (for Front LH)

SUSPENSION CONTROL: HEIGHT CONTROL SENSOR (for Front LH): INSPECTION

1. INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH

(a) Connect 3 dry batteries of 1.5 V in series.





(b) Connect terminal 3 to the batteries' positive (+) terminal, and terminal 1 to the batteries' negative (-) terminal.

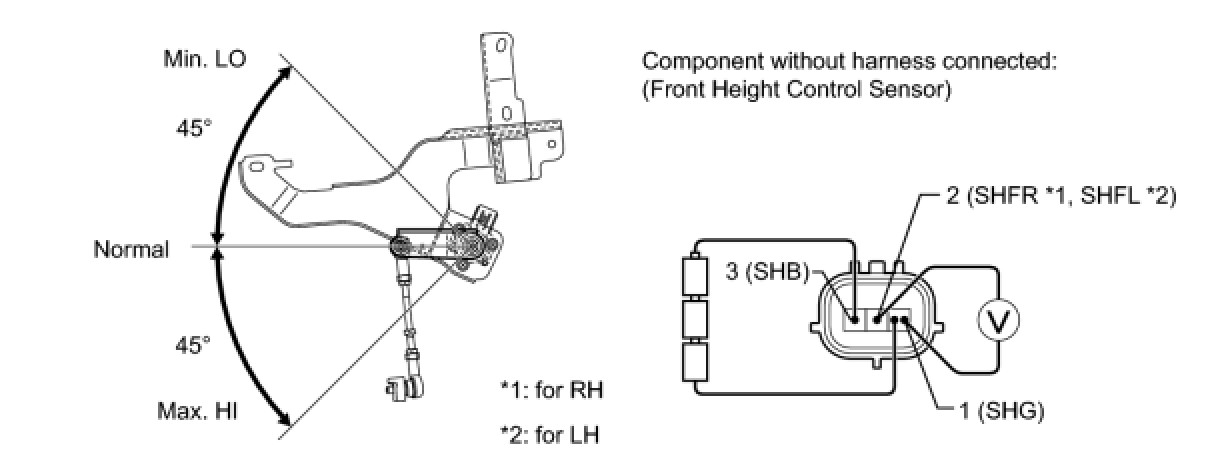

(c) Measure the voltage between terminals 1 and 2, when the height control sensor link is slowly moved up and down.

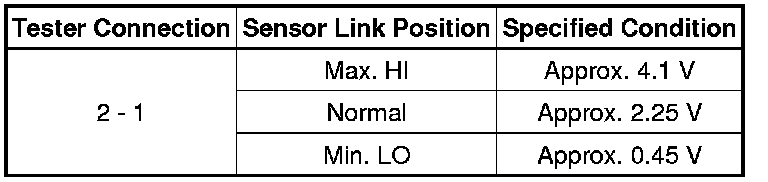

Standard voltage:





NOTICE:
* Do not apply a voltage of more than 6 V.
* Do not drop the height control sensor. If it is dropped, replace it with a new one.
