Removal

SUSPENSION CONTROL: HEIGHT CONTROL SENSOR (for Front LH): REMOVAL

CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Suspension Control System.

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
w/ Navigation System (for HDD):

After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

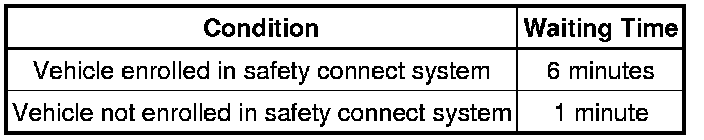

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:

3. REMOVE FRONT WHEEL

4. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH

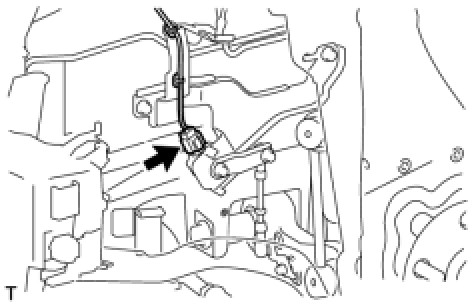

(a) Disconnect the connector.

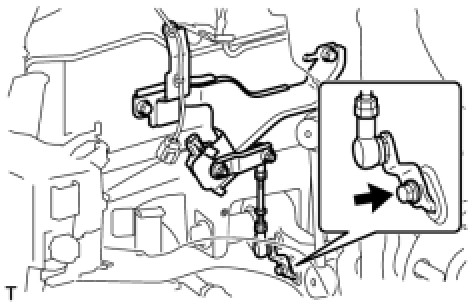

(b) Remove the bolt and disconnect the height control sensor link from the lower arm.

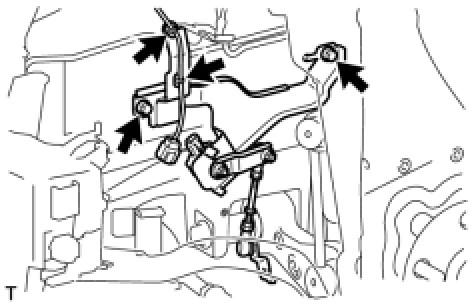

(d) Remove the height control sensor.

NOTICE:
Do not drop the height control sensor. If it is dropped, replace it with a new one.
