Control Valve Assembly (for Front Side)

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY (for Front Side): INSPECTION

1. INSPECT NO. 1 HEIGHT CONTROL VALVE SUB-ASSEMBLY

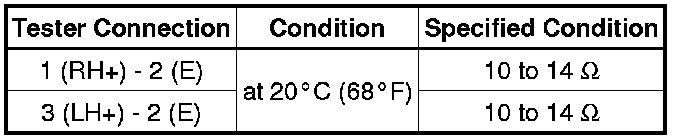

(a) Measure the resistance according to the value(s) in the table.





Standard resistance:

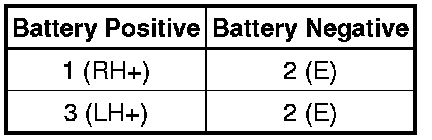

(b) Check the operating sound of the height control valve when battery voltage is applied to the terminals.









OK:

It makes an operating sound.
