Removal

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY (for Rear Side): REMOVAL

CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Suspension Control System.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
w/ Navigation System (for HDD):

After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:

3. REMOVE REAR WHEEL RH

4. REMOVE QUARTER PANEL WHEEL OPENING MOULDING RH

(a) Remove the 4 screws and moulding.

5. REMOVE REAR WHEEL HOUSE LINER RH

(a) Remove the 2 clips and 3 screws.

(b) Remove the 11 nuts and rear wheel house liner.

6. REMOVE NO. 2 HEIGHT CONTROL VALVE SUB-ASSEMBLY

(a) Disconnect the connector.

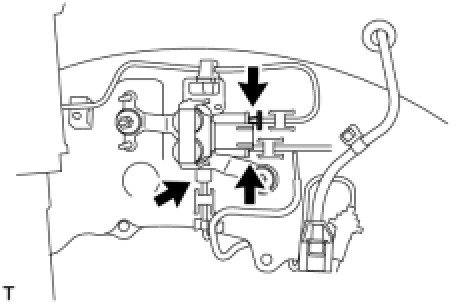

(b) Using SST, disconnect the 3 air tubes Suspension Control System.

SST : 09730-00010
