Absorber Control Actuator (for Front Side)

SUSPENSION CONTROL: ABSORBER CONTROL ACTUATOR (for Front Side): INSPECTION

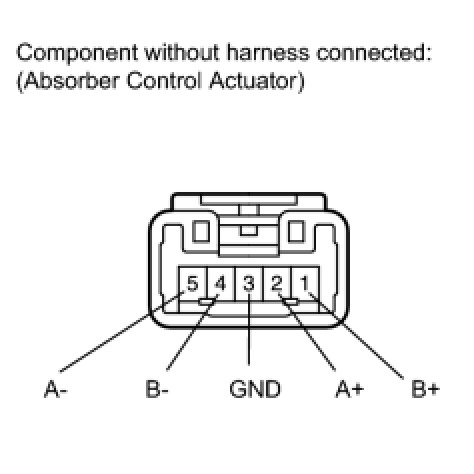

1. INSPECT ABSORBER CONTROL ACTUATOR

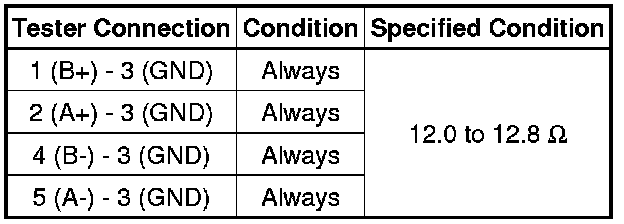

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





2. CHECK ABSORBER CONTROL ACTUATOR OPERATION

(a) Check the absorber control actuator operation Operation Check.
