Removal

SUSPENSION: TOE CONTROL LINK: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL

2. REMOVE REAR SPEED SENSOR LH Removal

3. REMOVE LOAD SENSING VALVE SENSOR BRACKET Removal

4. REMOVE TOE CONTROL LINK SUB-ASSEMBLY LH





(a) Remove the nut on the rear axle carrier side.

(b) Install 2 spacers (SST spacer B) onto the toe control link so that there is a space of approximately 1 mm (0.039 in.) between the arm and spacers.

SST : 09960-20010

09961-02060

NOTICE:
* Make sure to install the spacers (SST spacer B) as the axle carrier spacer may shift.
* As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.039 in.) or less.

(c) Using SST, disconnect the toe control link from the axle carrier.

SST : 09960-20010

09961-02010

NOTICE:
* Do not damage the dust cover.
* As the dust cover may be damaged, adjust SST with the center nut so that the body and crow are parallel.
* Make sure to tie the string of to the vehicle to prevent SST from dropping.

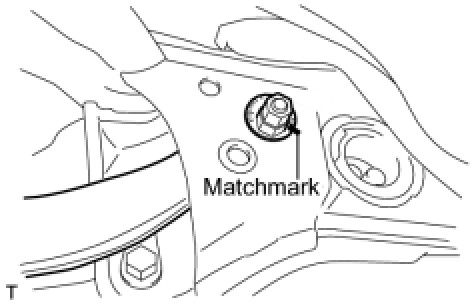

(d) Place matchmarks on the No. 2 suspension toe adjust plate and suspension member.

(e) Remove the nut, No. 2 toe adjust plate, toe adjust cam and toe control link from the suspension member.
