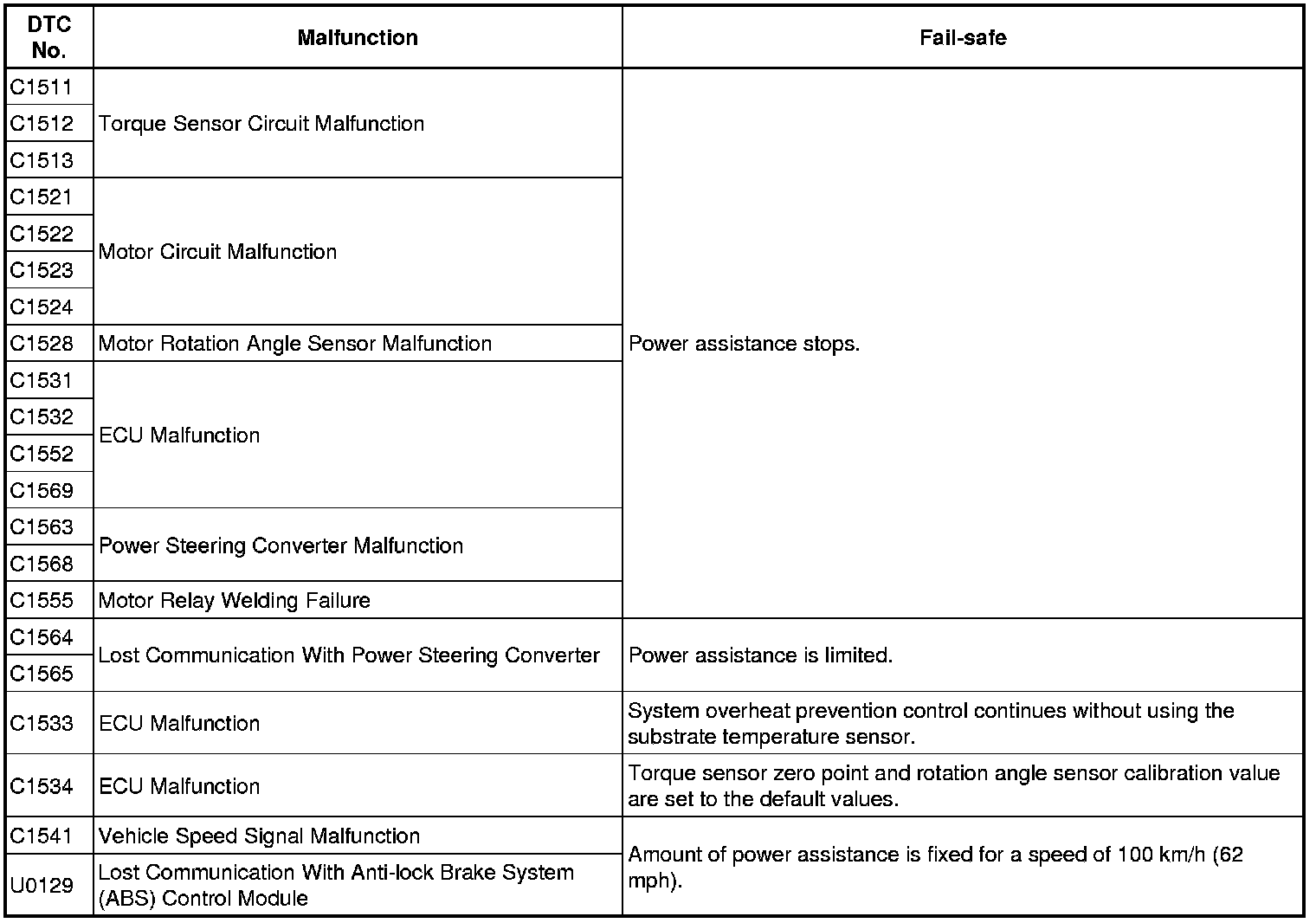

Fail-Safe Chart

POWER STEERING: POWER STEERING SYSTEM: FAIL-SAFE CHART

If a problem occurs in the electric power steering system, the PS warning light will come on in the combination meter and steering power assistance will be stopped, fixed at a particular point, or decreased simultaneously to protect the system.





HINT
* With the vehicle stopped or driving very slowly, if the steering wheel is turned repeatedly or turned to a lock position and driven for an extended period of time, the power assistance amount is decreased to prevent overheating of the motor and ECU. If this occurs, idle the engine and do not turn the steering wheel for approximately 10 minutes to return the power assistance to normal.
* If the battery has not been recharged enough or the voltage drops temporarily, the power assistance amount may be decreased and the P/S warning light may be illuminated. If this occurs, the power assistance returns to normal when the battery returns to normal. When troubleshooting malfunctions, use the Techstream to check for power load malfunctions through the electric power control system's load control history Data List / Active Test.
