STEERING COLUMN: HEATED STEERING WHEEL CONTROLLER: INSTALLATION

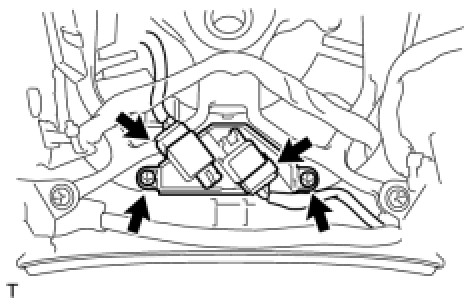

1. INSTALL HEATED STEERING WHEEL CONTROLLER

(a) Install the controller with the 2 screws and connect the 2 connectors.





2. INSTALL STEERING PAD ASSEMBLY Installation

3. INSTALL NO. 2 STEERING WHEEL COVER LOWER Installation

4. INSTALL SWITCH AND VOLUME CASE Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. CHECK SRS WARNING LIGHT

Diagnosis System

8. PERFORM INITIALIZATION

Repair Instruction - Initialization

NOTICE:
Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
