How To Proceed With Troubleshooting

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedures to troubleshoot the power tilt and telescopic steering column system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK FOR DTC (ELECTRIC POWER CONTROL SYSTEM)*

(a) Using the Techstream, check if the electric power control system is functioning normally.

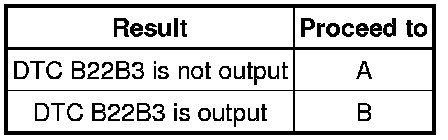

Result





B -- Go to ELECTRIC POWER CONTROL SYSTEM
A -- Continue to next step.

4. CHECK CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN communication system is functioning.

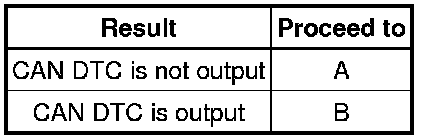

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.

5. CHECK FOR DTC*

(a) Check for DTC Power Tilt and Power Telescopic Steering Column System.

(b) Clear the DTC Power Tilt and Power Telescopic Steering Column System.

(c) Recheck the DTC Power Tilt and Power Telescopic Steering Column System.

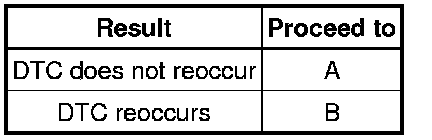

Result:





B -- Go to DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE

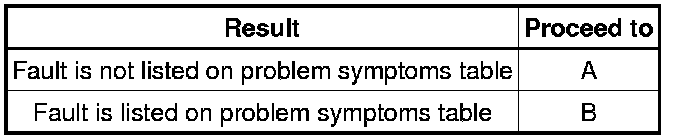

Result





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Power Tilt and Power Telescopic Steering Column System

(b) DATA LIST/ACTIVE TEST Data List / Active Test

NEXT -- Continue to next step.

8. REPAIR

NEXT -- Continue to next step.

9. CONFIRMATION TEST

NEXT -- END
