Tilt and Telescopic Manual Switch Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Tilt and Telescopic Manual Switch Circuit
- Tilt and Telescopic Manual Switch Circuit

DESCRIPTION

The signals generated by operating the manual switch are sent to the multiplex tilt and telescopic ECU through the communication bus.

INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (TILT AND TELESCOPIC MANUAL SWITCH)

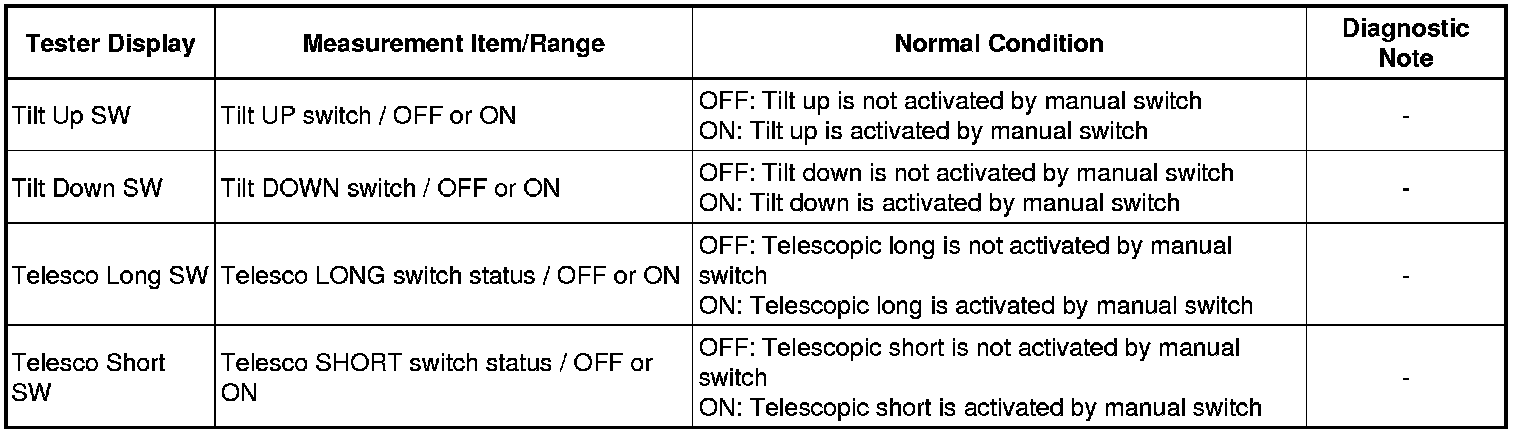

(a) Use the Data List to check if the tilt and telescopic manual switch is functioning properly.

Combination Switch:





OK:

"ON" is displayed on the tester screen when each switch is turned on.

"OFF" is displayed on the tester screen when each switch is turned off.

NG -- REPLACE WINDSHIELD WIPER SWITCH Removal

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
