Actuator Power Source Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Actuator Power Source Circuit
- Actuator Power Source Circuit

DESCRIPTION

This is the power source for the motors.

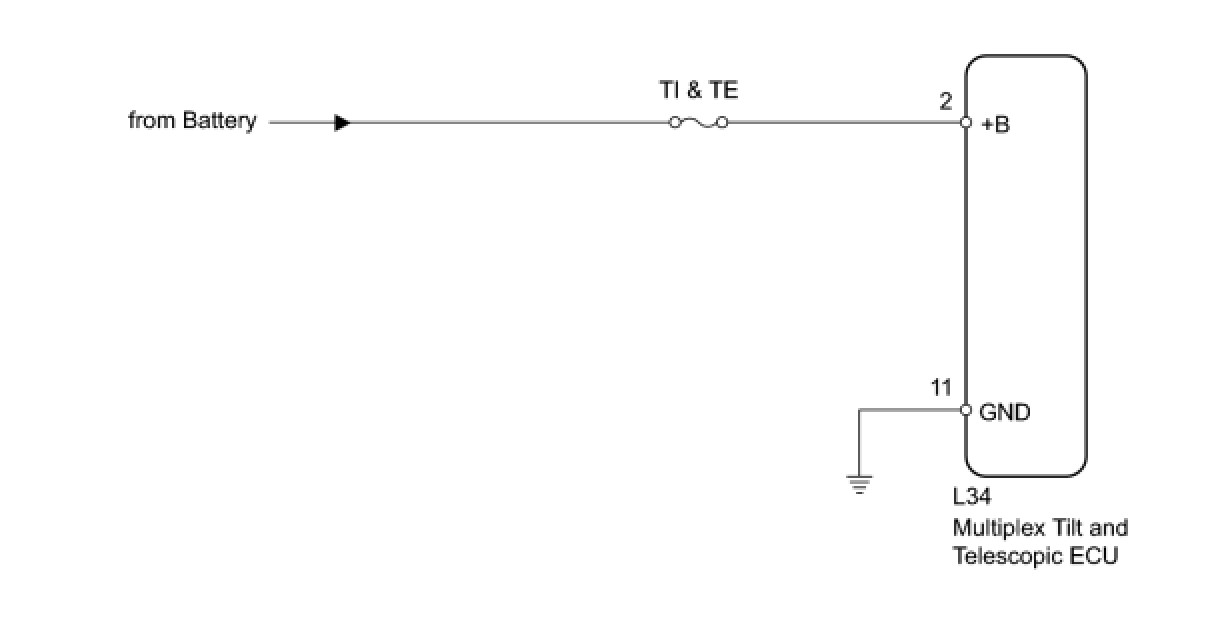

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (TI & TE)

(a) Remove the TI & TE fuse from the main body ECU.

(b) Measure the resistance of the fuse.

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the L34 connector from the multiplex tilt and telescopic ECU.

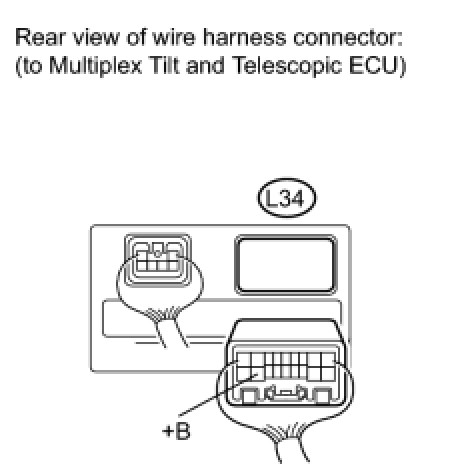

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- CHECK IG POWER SOURCE CIRCUIT IG Power Source Circuit
