STEERING COLUMN: TILT AND TELESCOPIC MANUAL SWITCH: INSTALLATION

1. INSTALL TILT AND TELESCOPIC MANUAL SWITCH

(a) Attach the claw to install the tilt and telescopic manual switch.

(b) Connect the connector.

2. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)

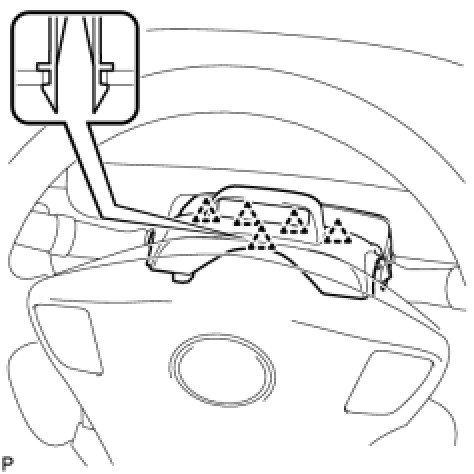

(a) Attach the clip to install the steering column cover upper.

(b) Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

(c) Install the steering column lower cover and attach the 2 claws.

(d) Install the screw.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

(e) Install the 2 screws.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

HINT
Turn the steering wheel to the right and left as necessary to install the 2 screws.

3. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)

(a) Connect the connector.

(b) Attach the claw and 4 clips to install the cover.

(d) Install the screw.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

(e) Install the 2 screws.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

HINT
Turn the steering wheel to the right and left as necessary to install the 2 screws.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter Programming and Relearning.

5. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

6. INSPECT SRS WARNING LIGHT

Diagnosis System

7. PERFORM INITIALIZATION

Repair Instruction - Initialization

NOTICE:
Some systems need initialization after reconnecting the cable to the negative battery terminal.
