Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Electrical Diagrams >> 63 - 65 - J/B No.5 - Inner Circuit

63 - 65 - J/B No.5 - Inner Circuit

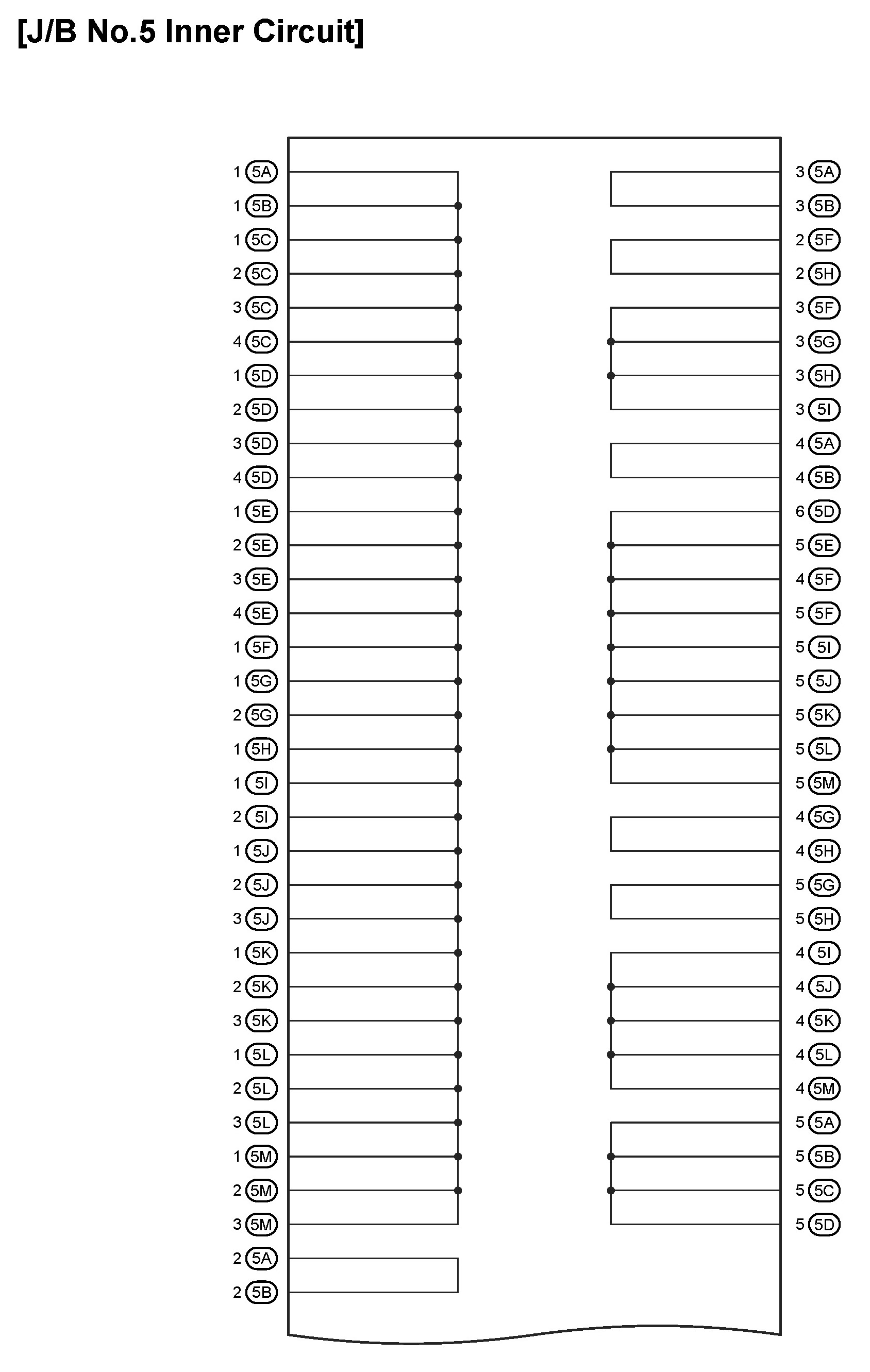

63 - J/B No.5 Inner Circuit:

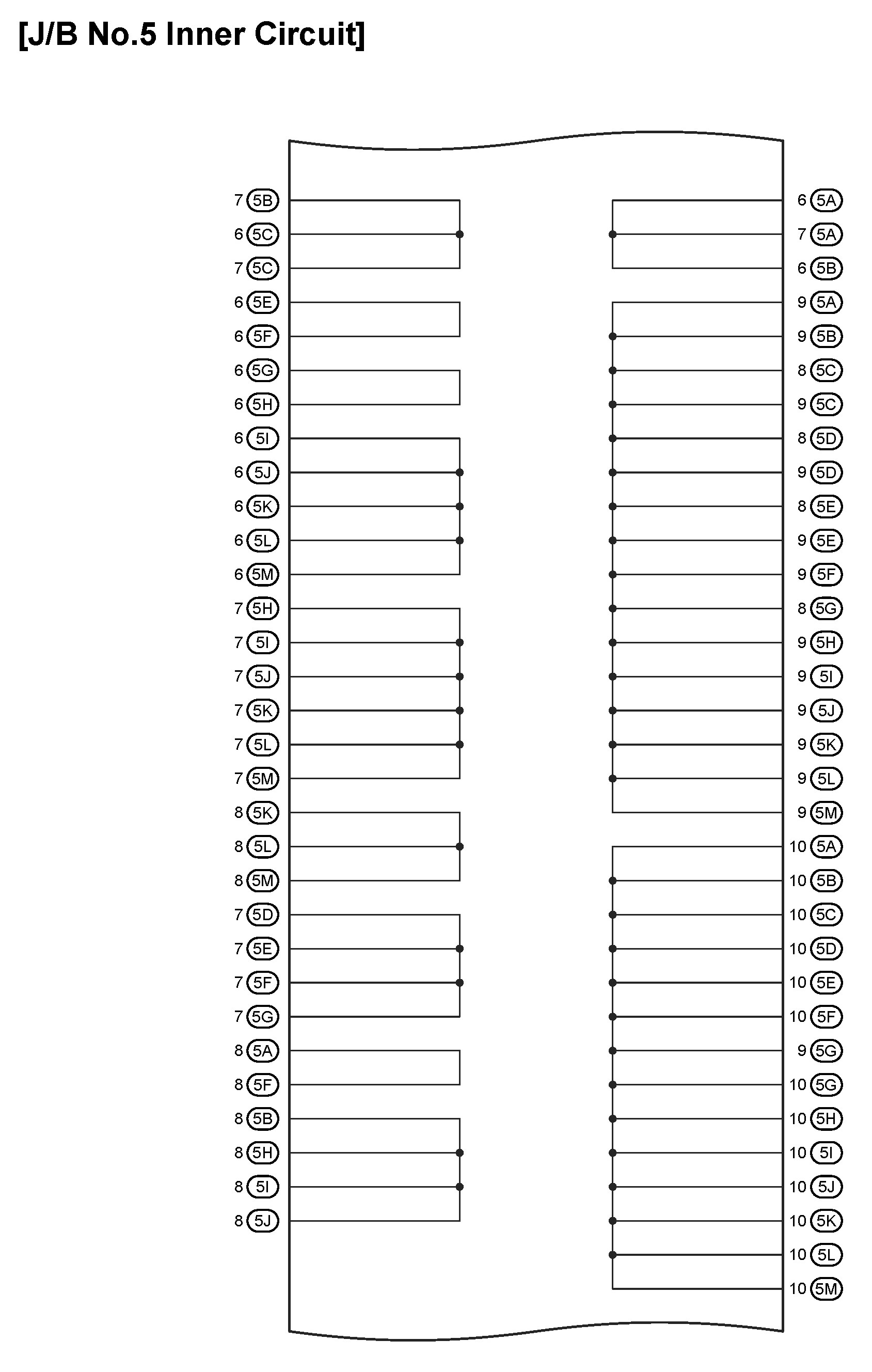

64 - J/B No.5 Inner Circuit:

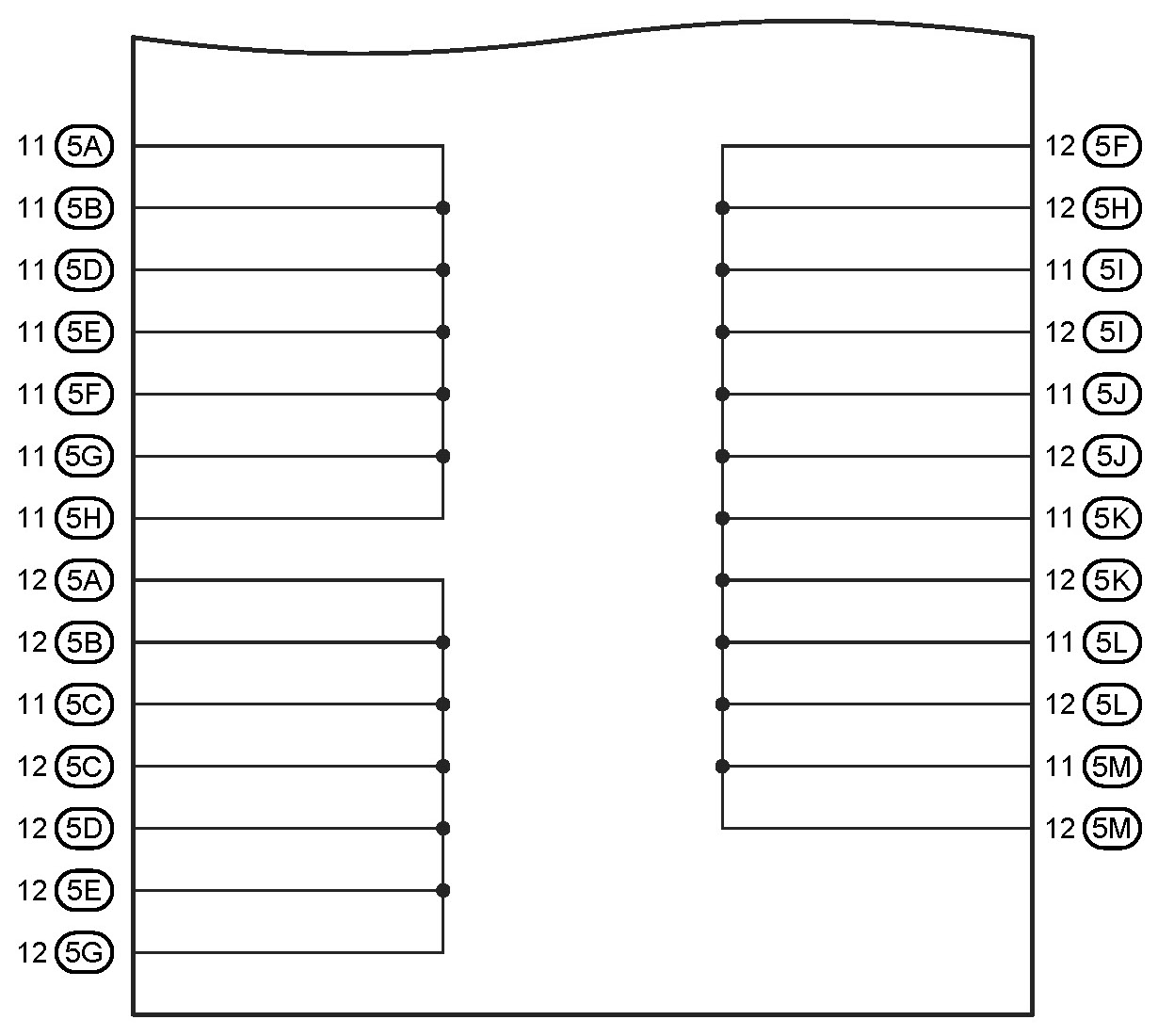

65 - J/B No.5 Inner Circuit:
