Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Electrical Diagrams >> 55 - 57 - J/B No.3 Inner Circuit

55 - 57 - J/B No.3 Inner Circuit

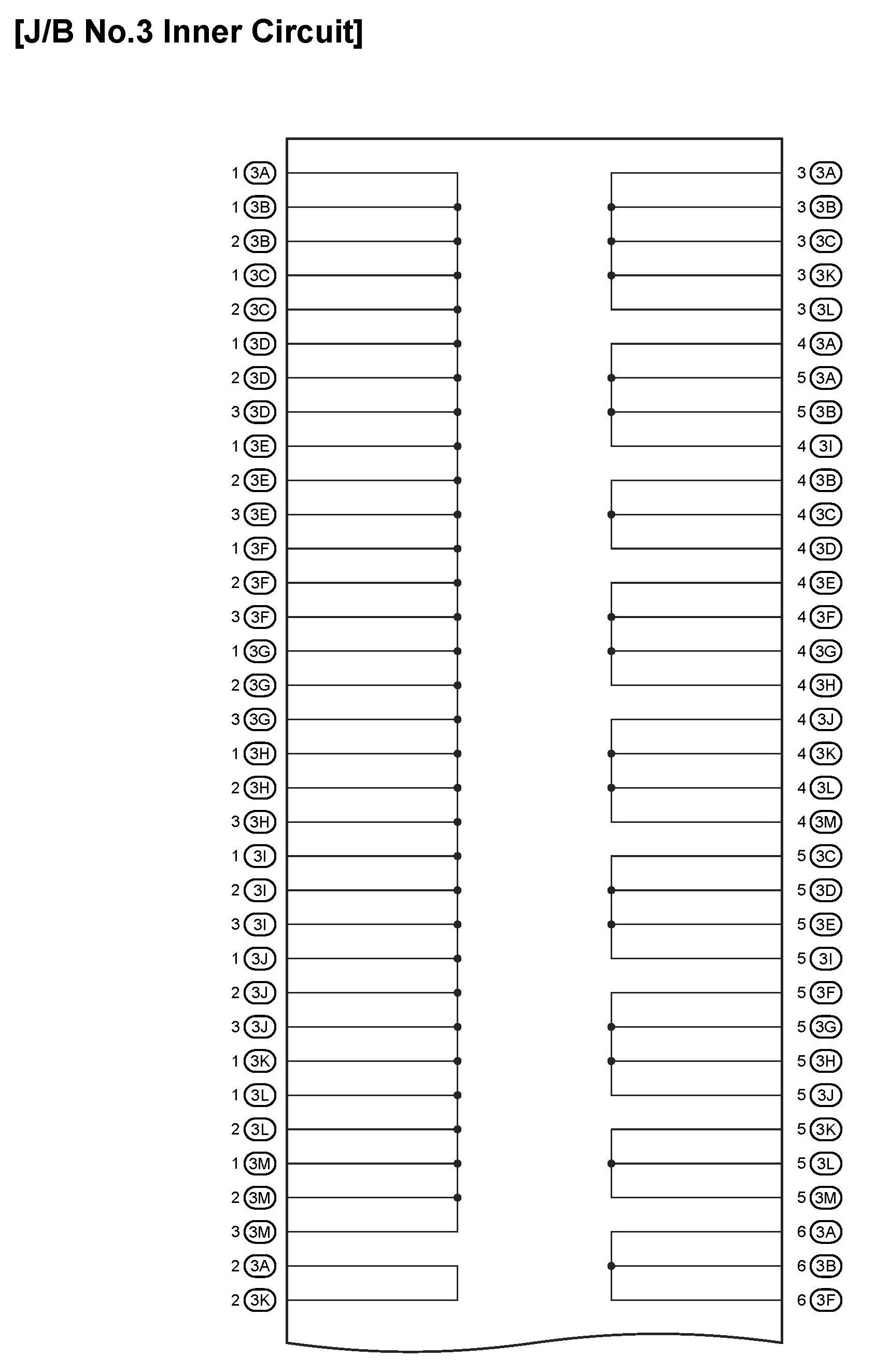

55 - J/B No.3 Inner Circuit:

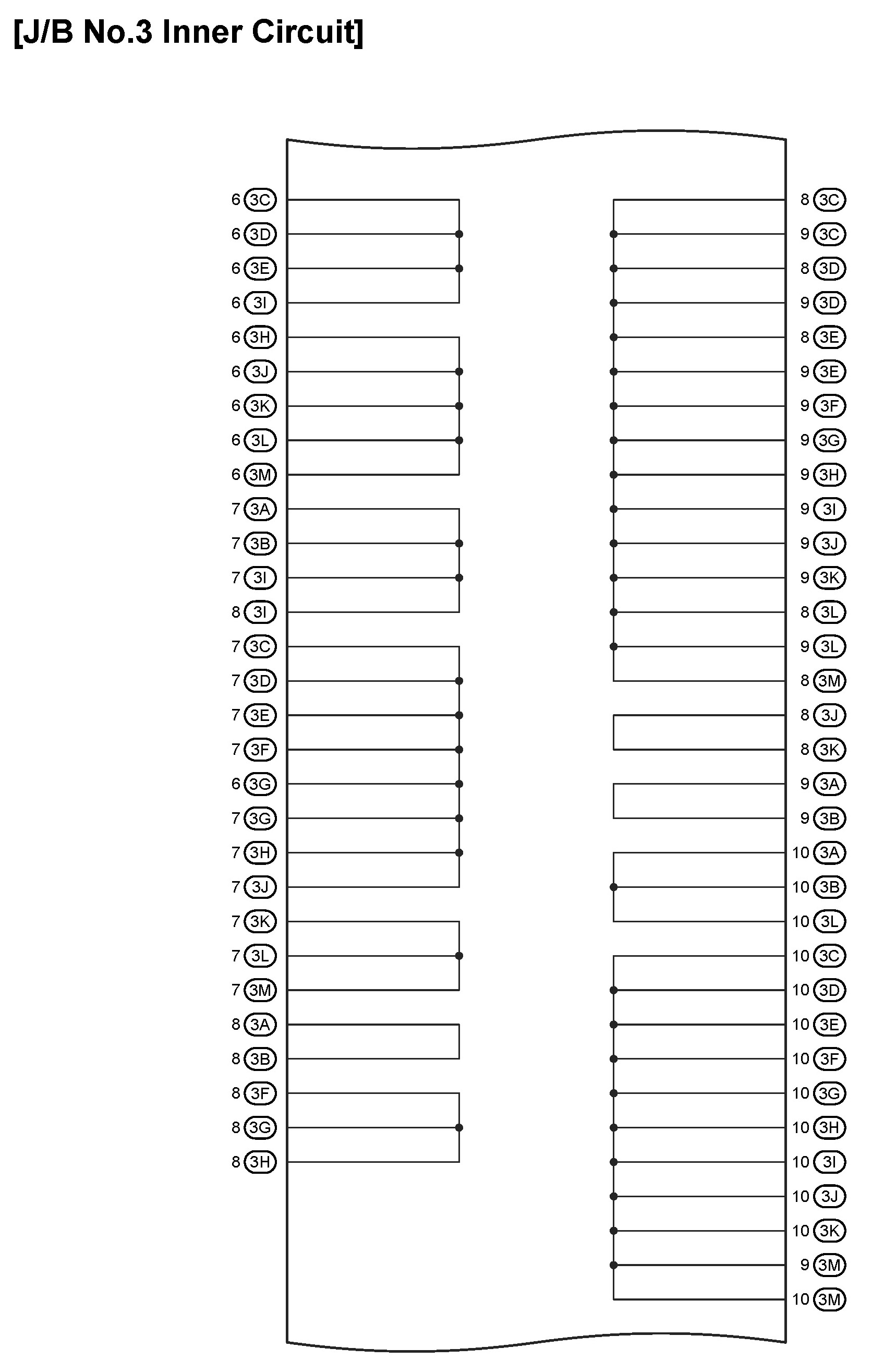

56 - J/B No.3 Inner Circuit:

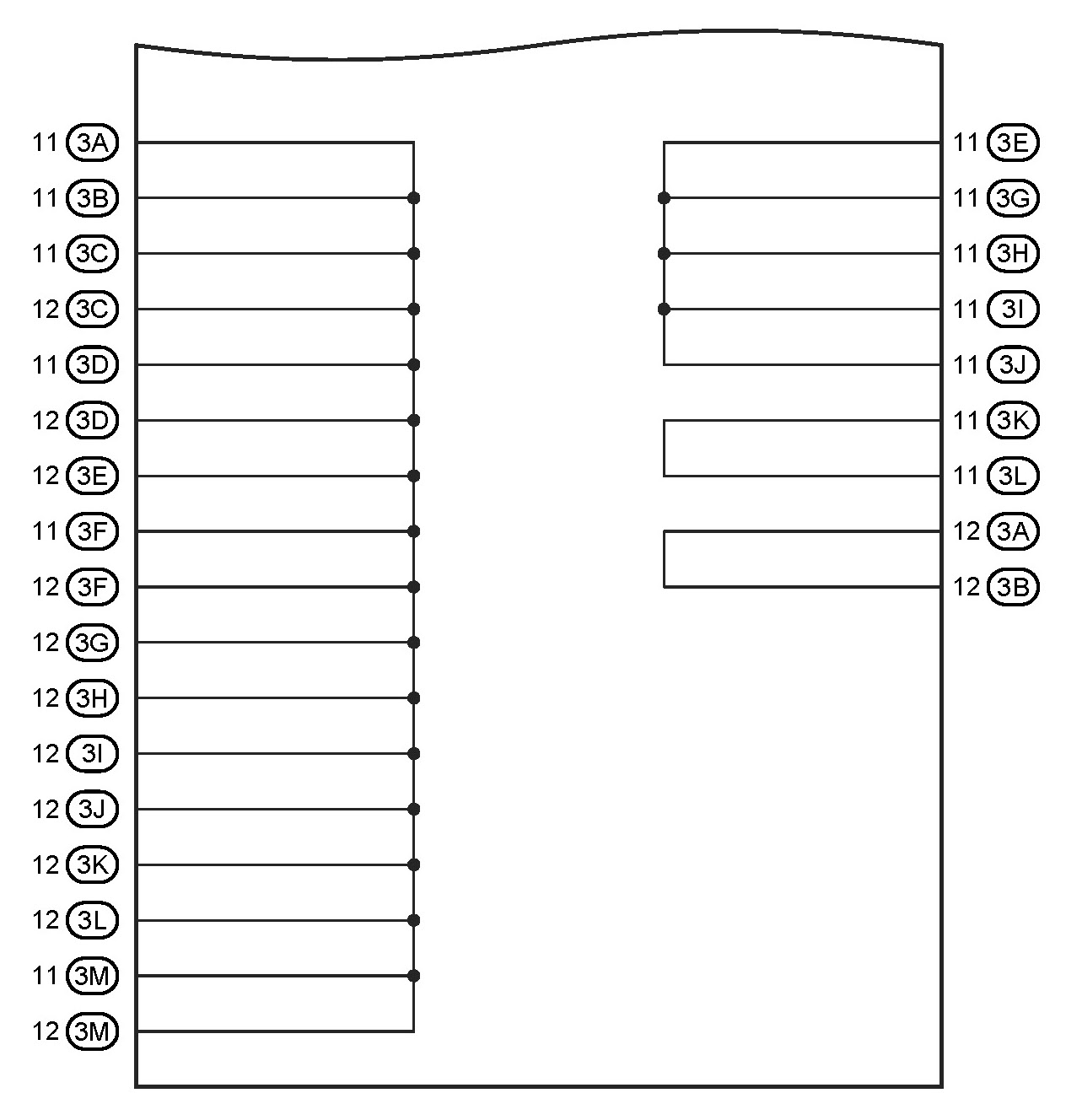

57 - J/B No.3 Inner Circuit:
