Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector Views >> Junction Connectors (Wire Harness) >> Part 2

Part 2

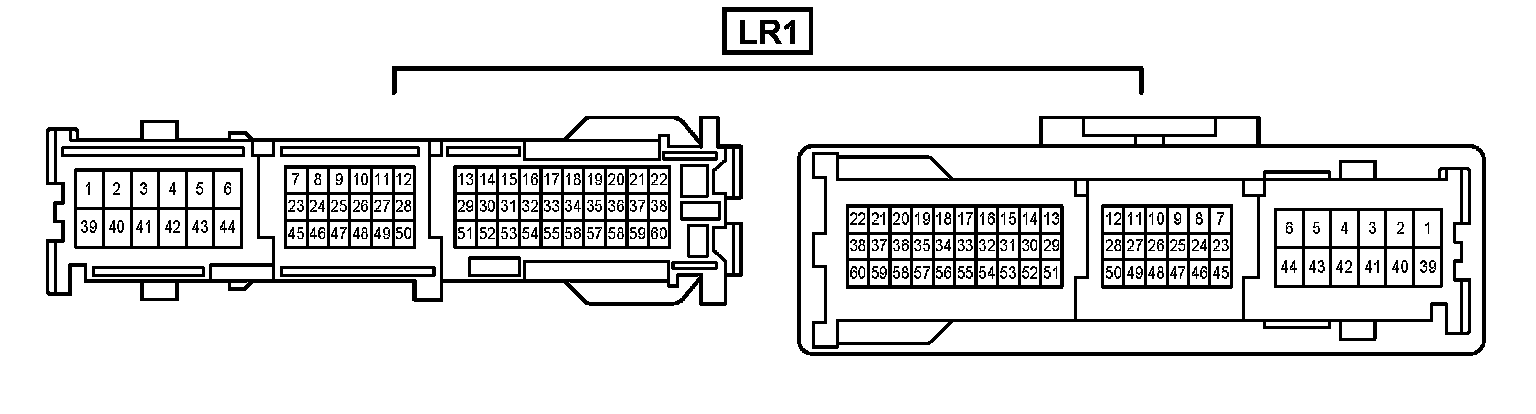

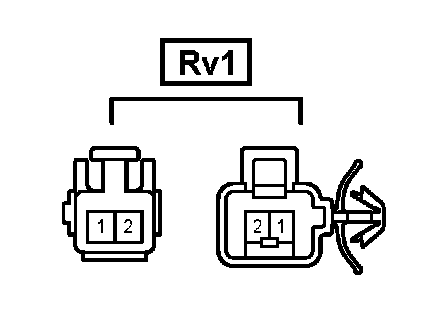

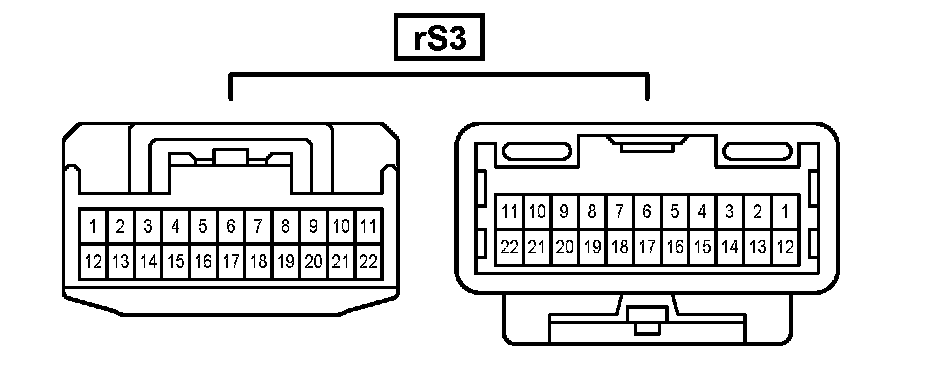

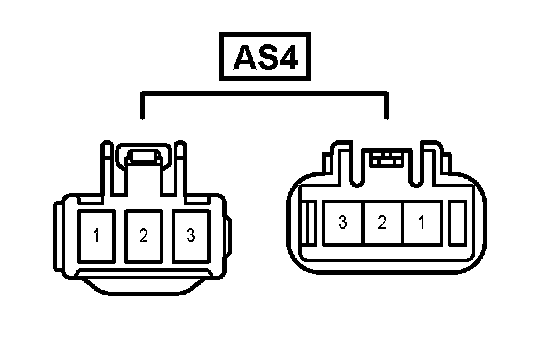

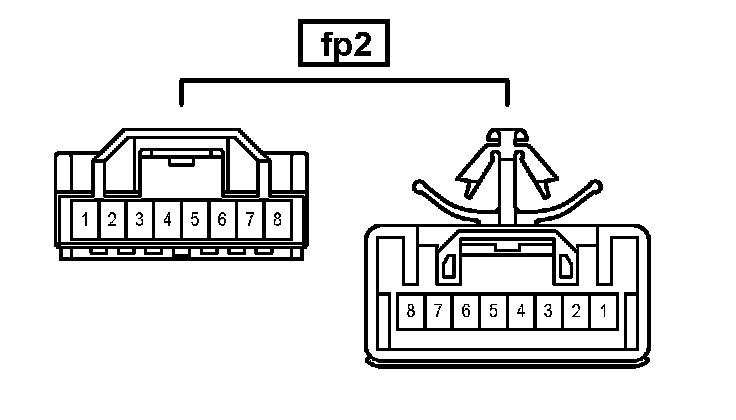

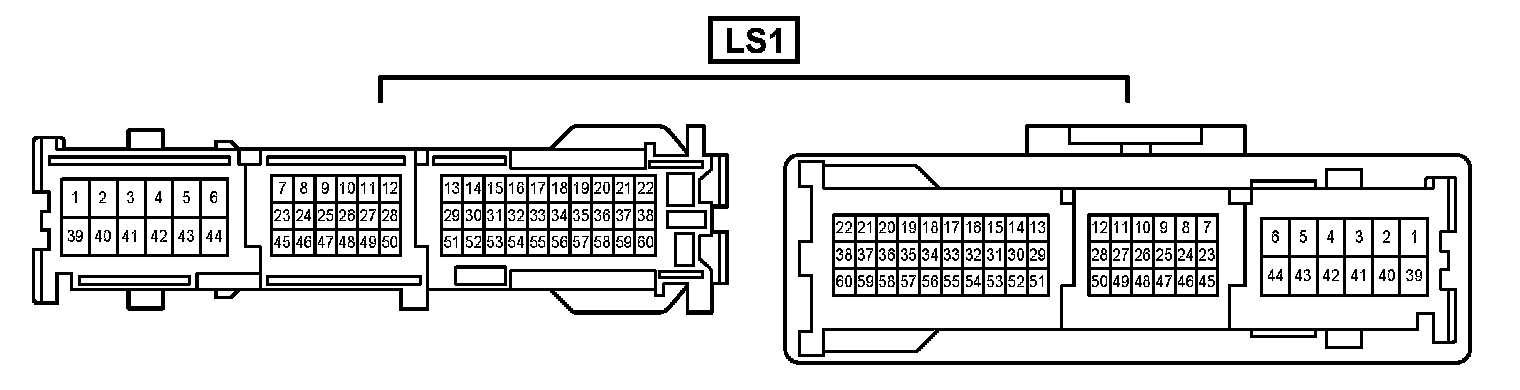

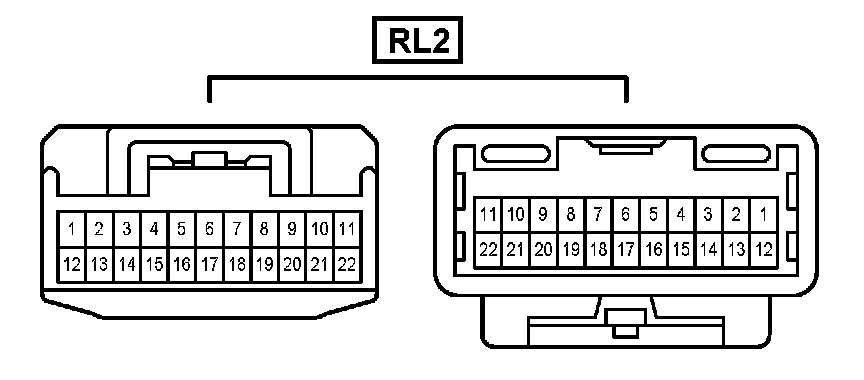

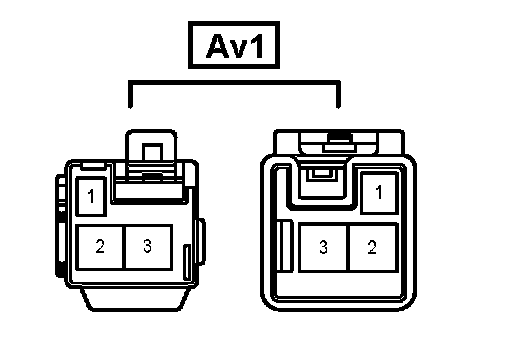

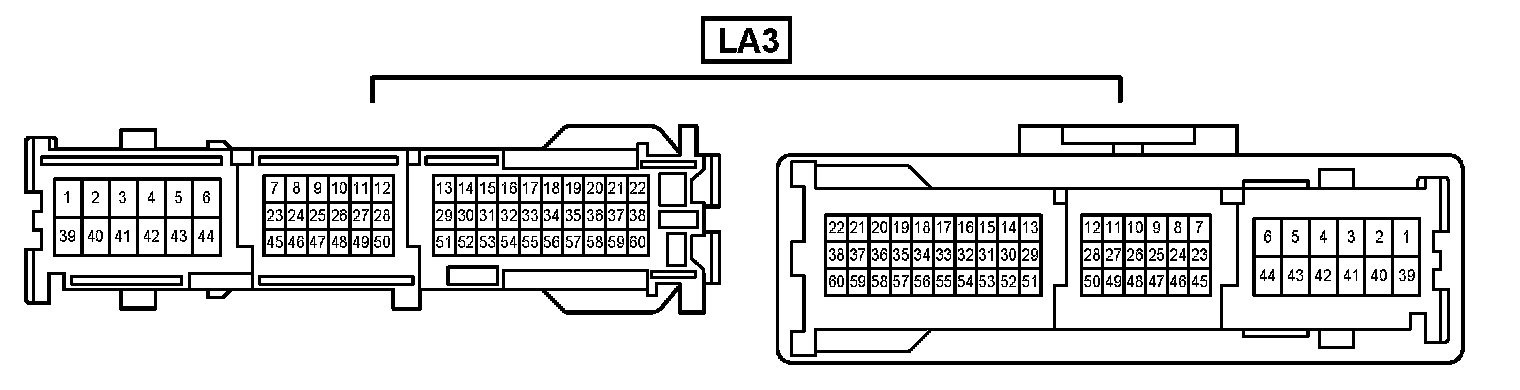

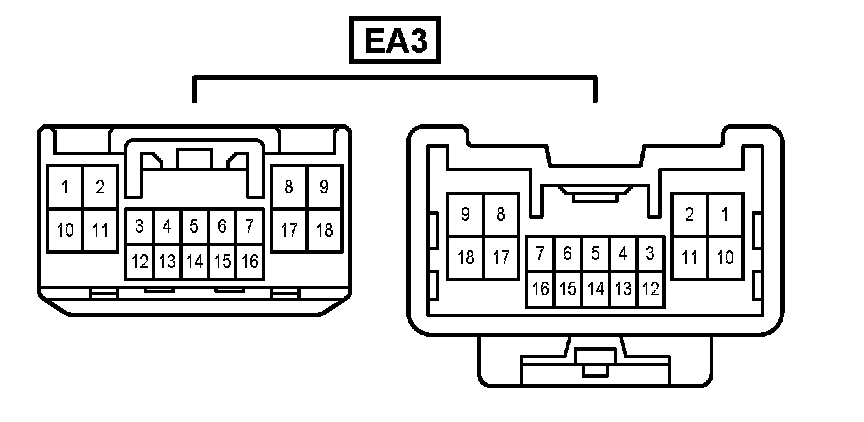

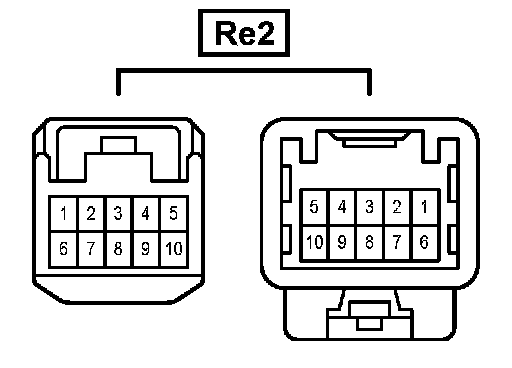

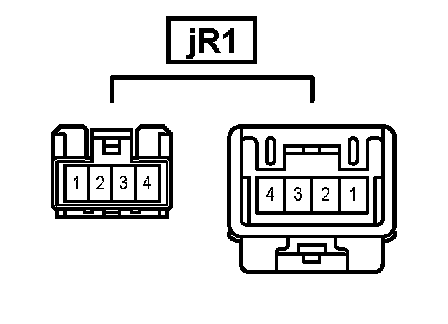

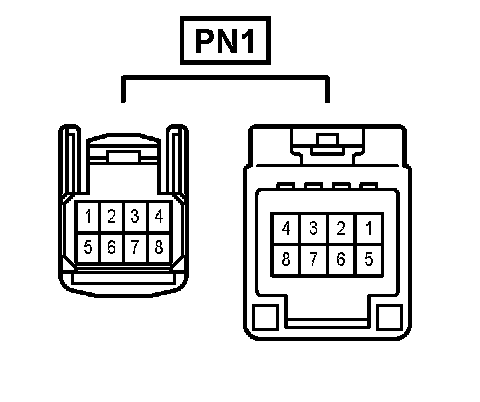

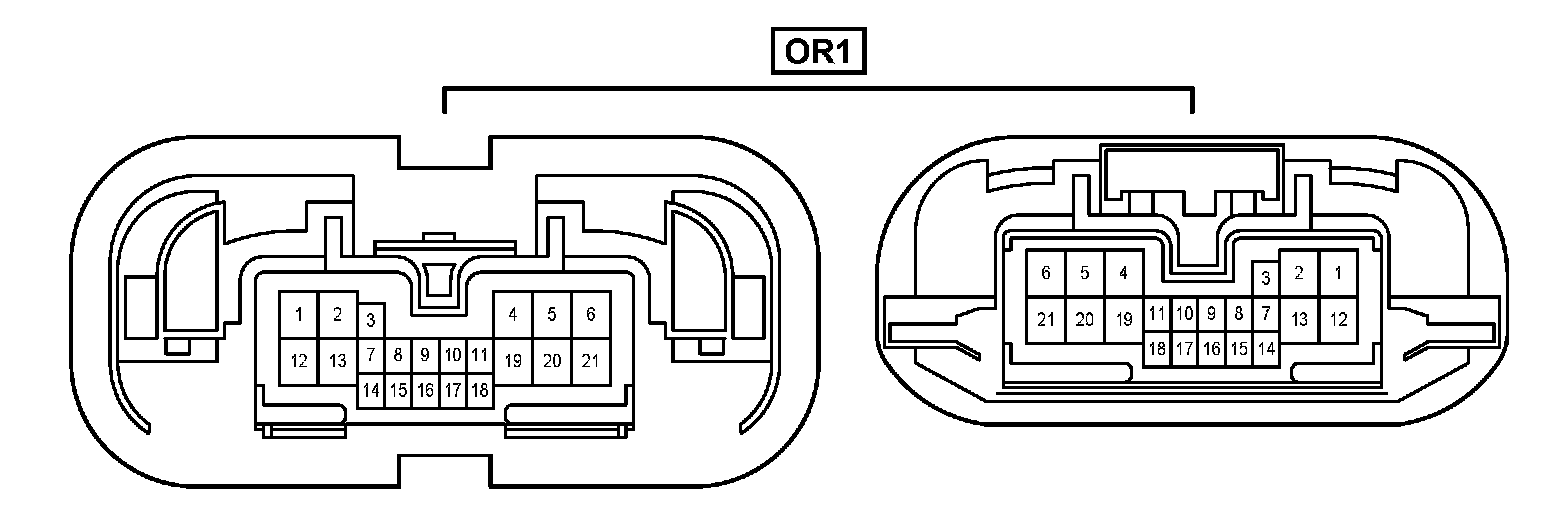

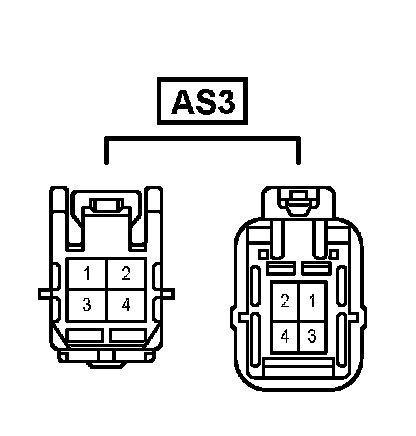

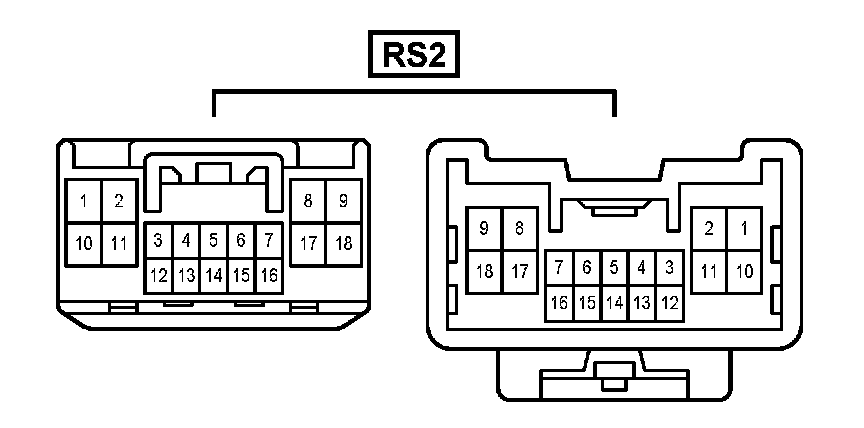

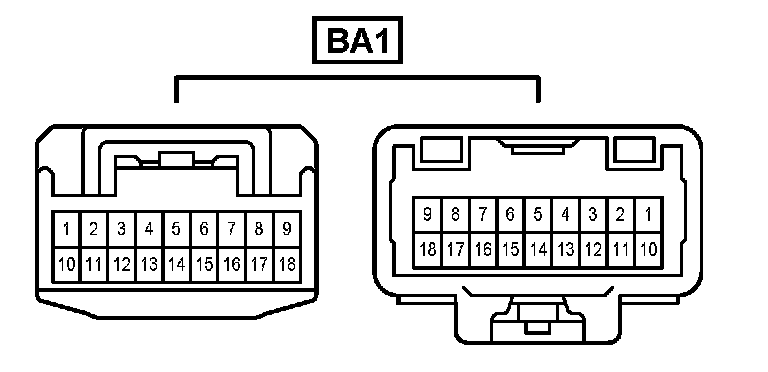

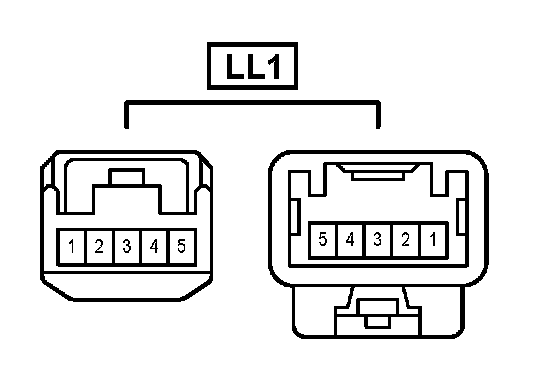

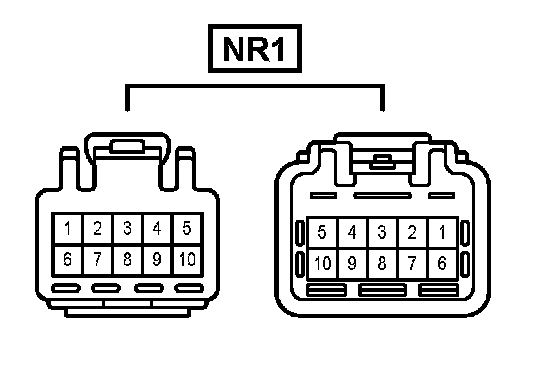

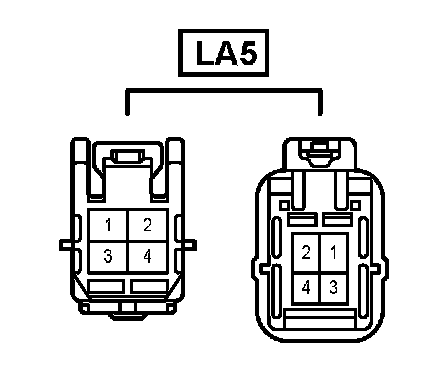

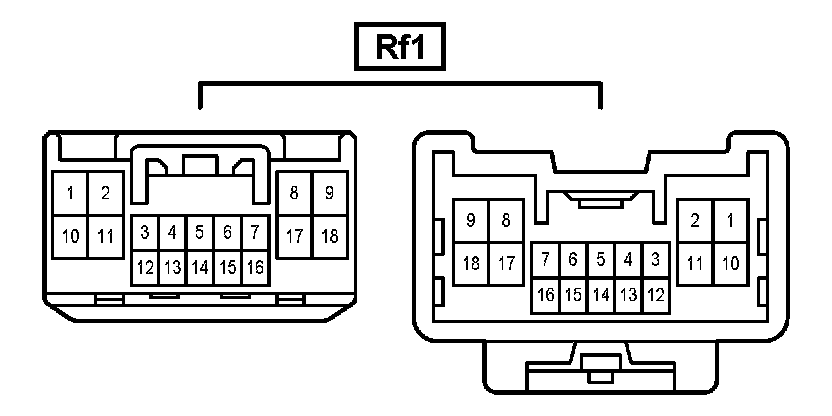

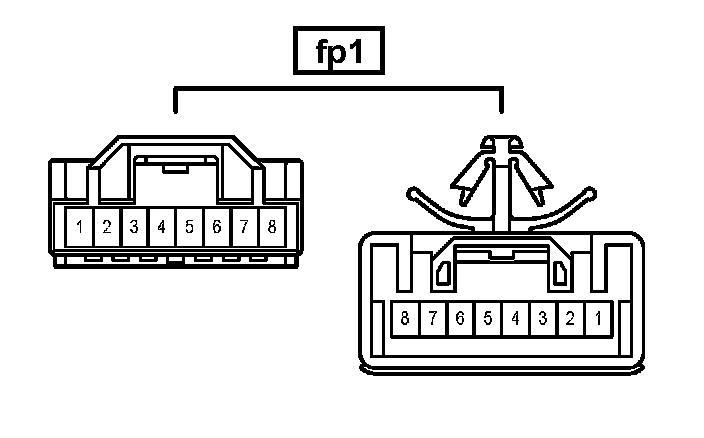

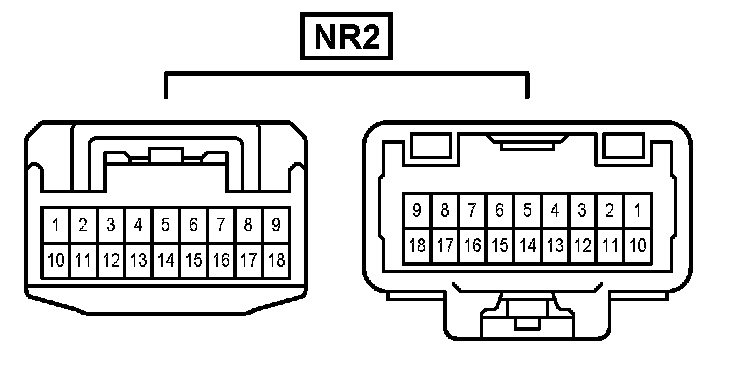

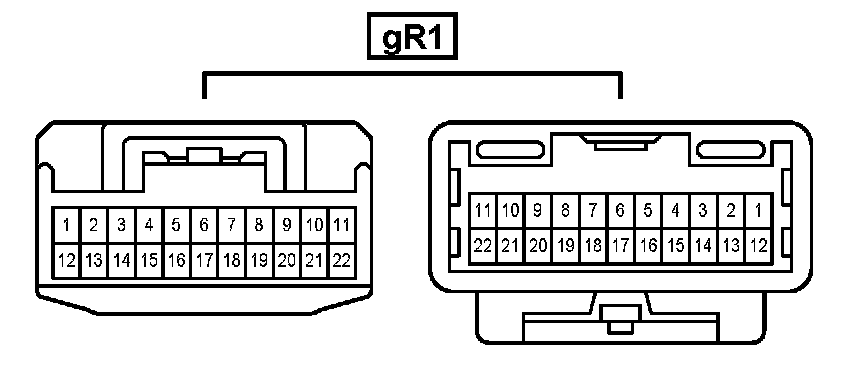

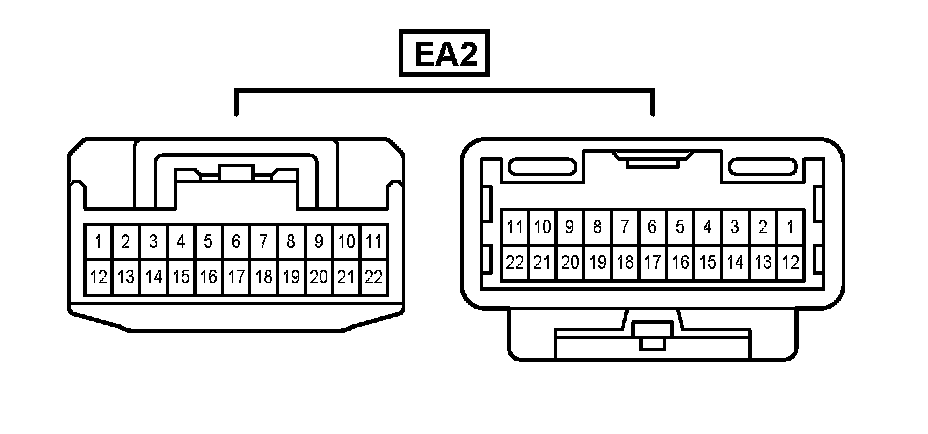

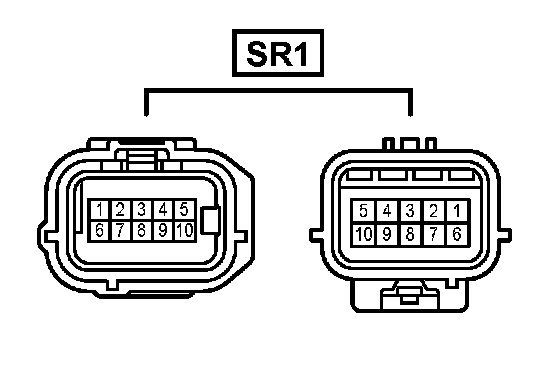

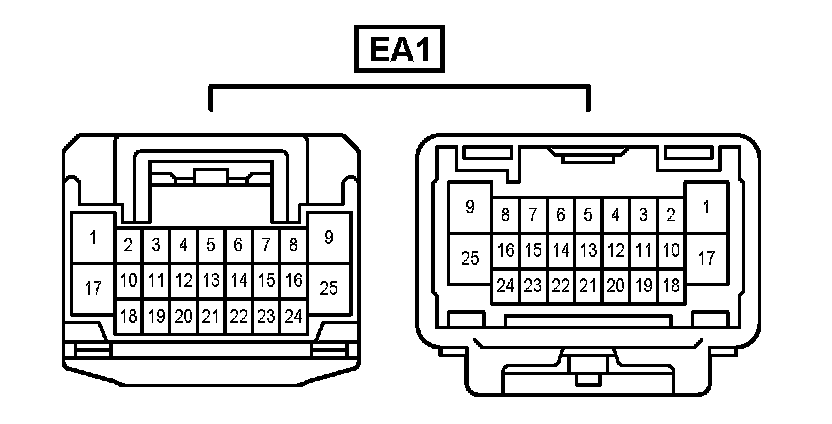

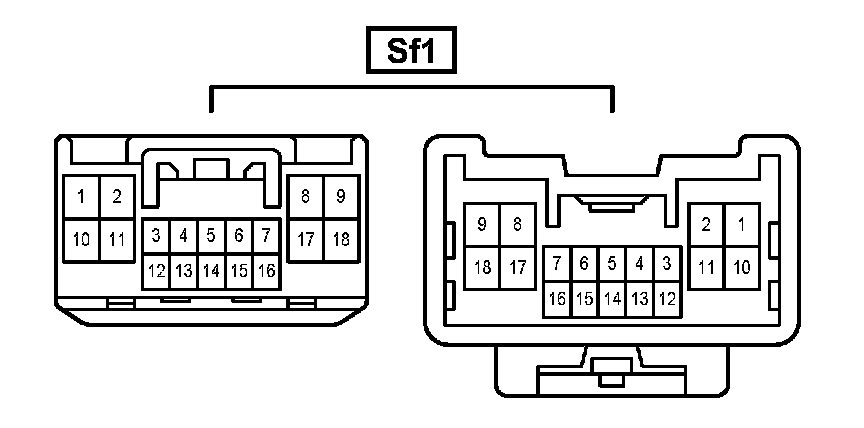

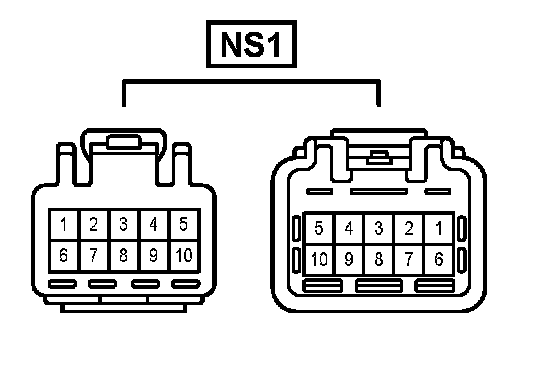

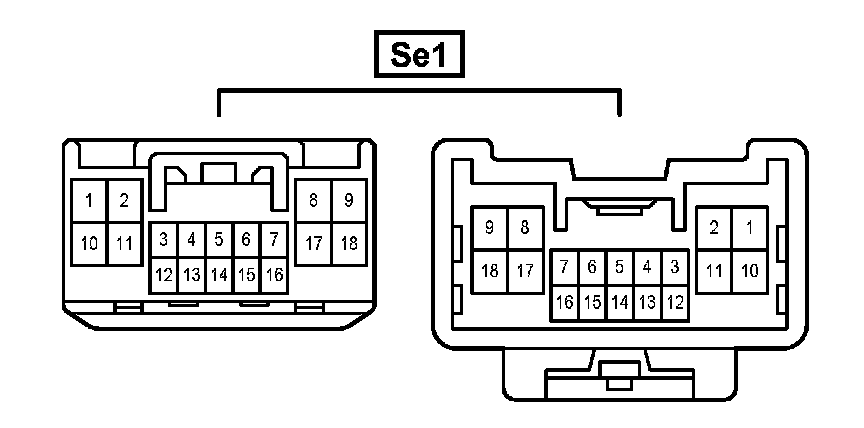

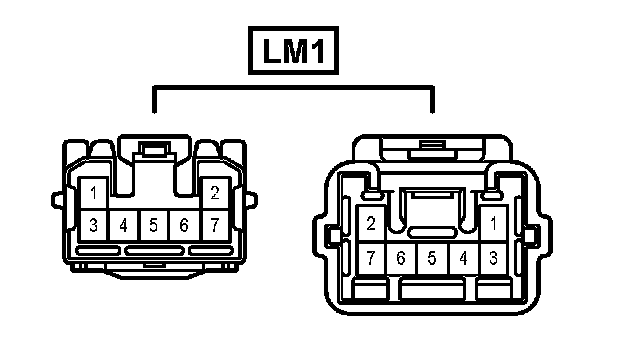

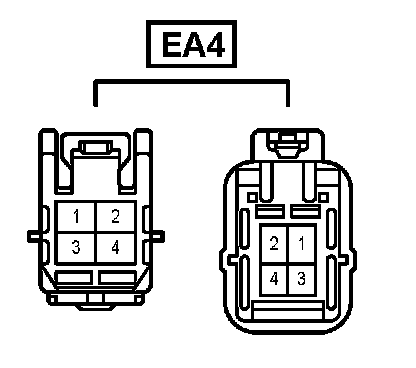

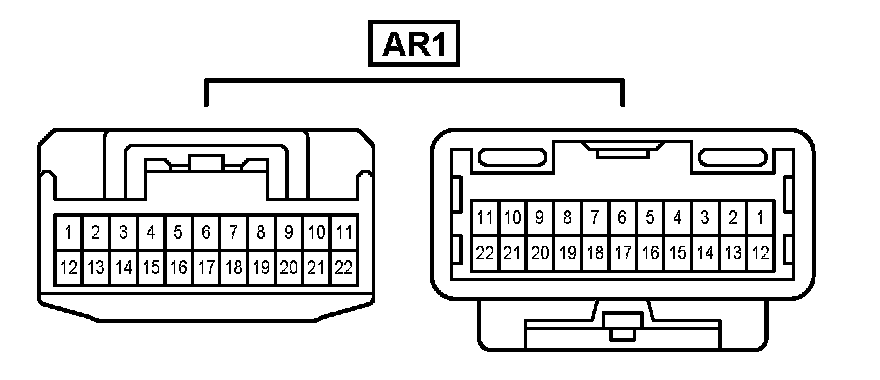

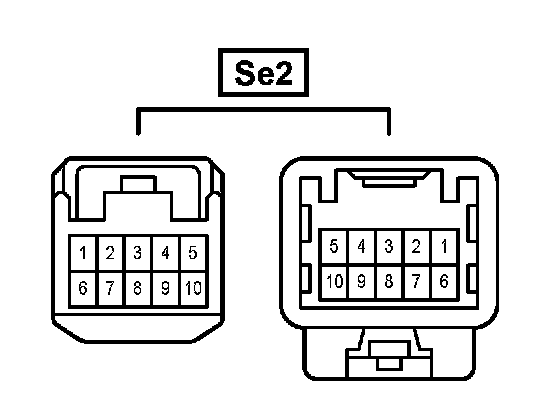

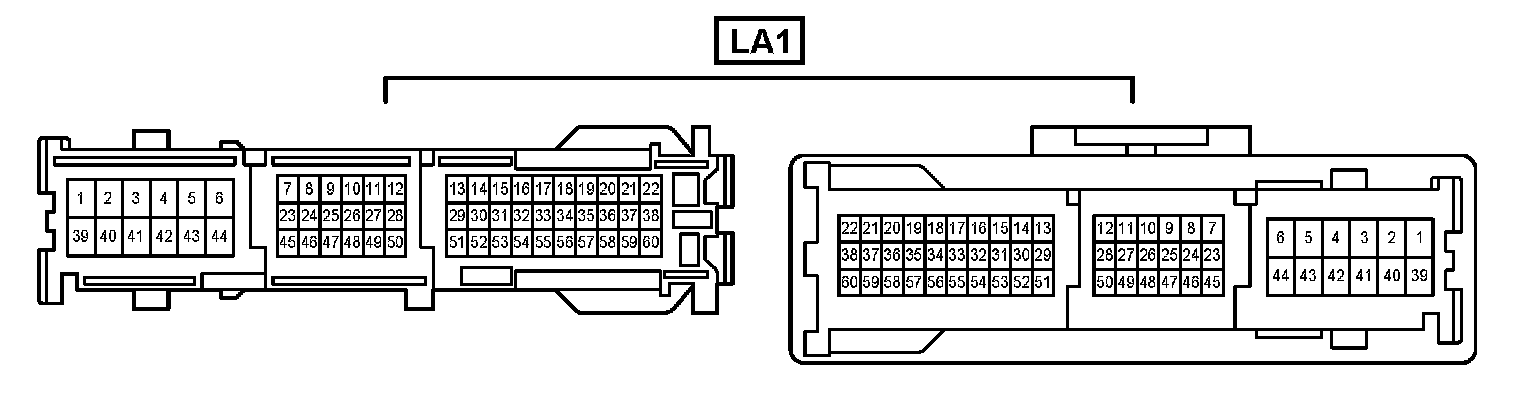

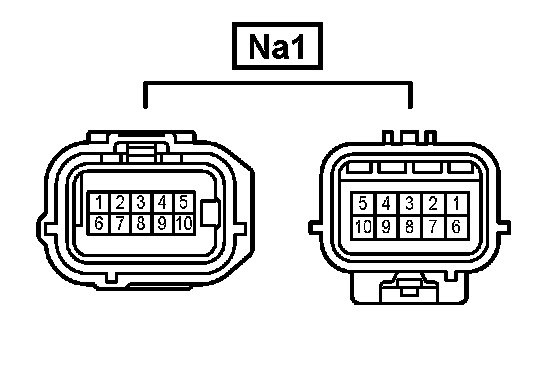

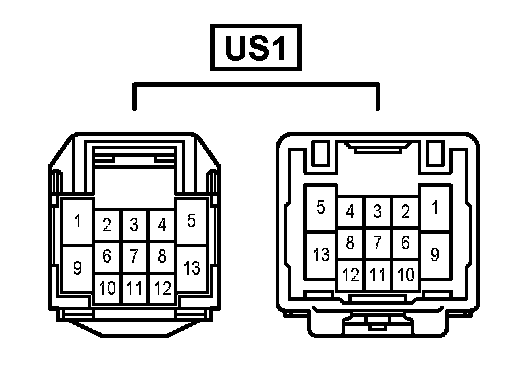

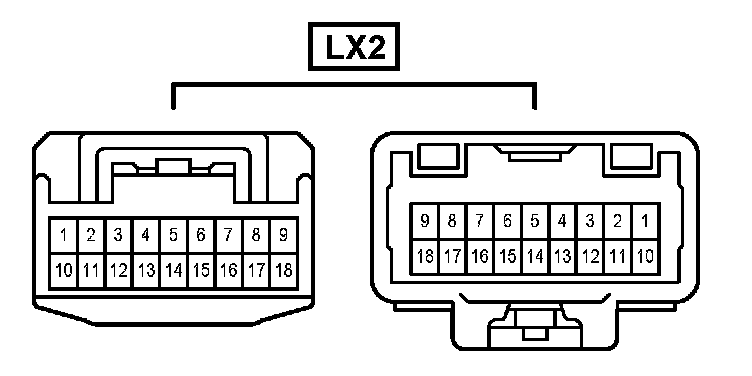

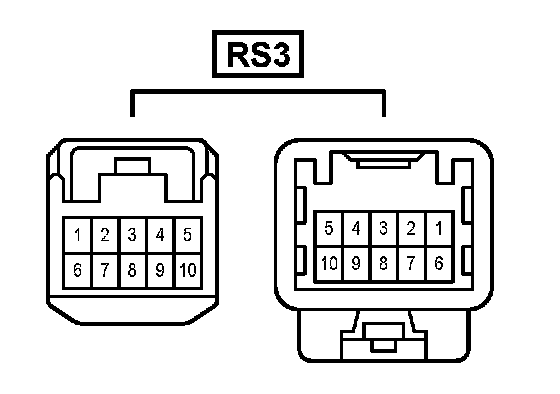

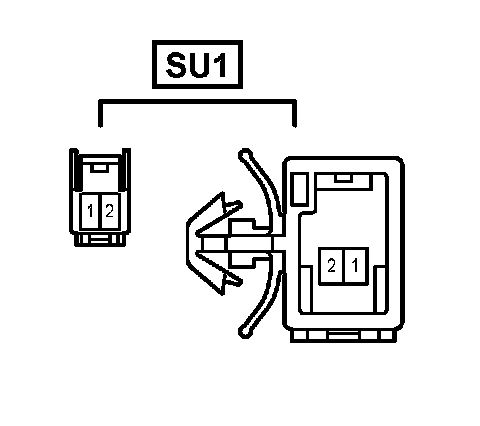

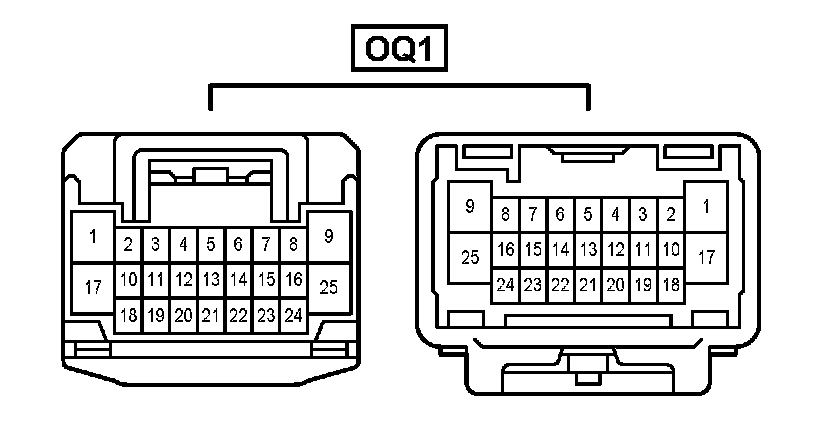

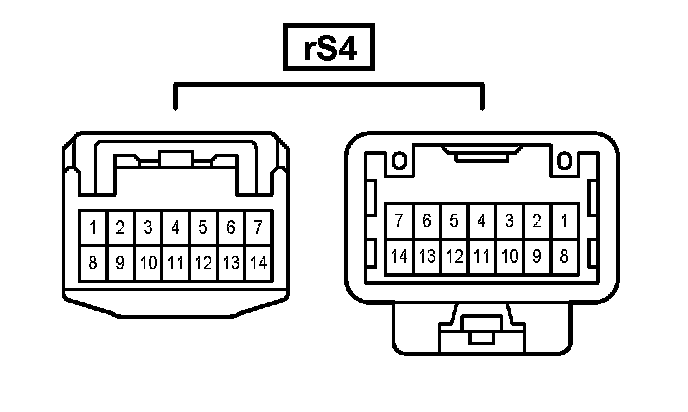

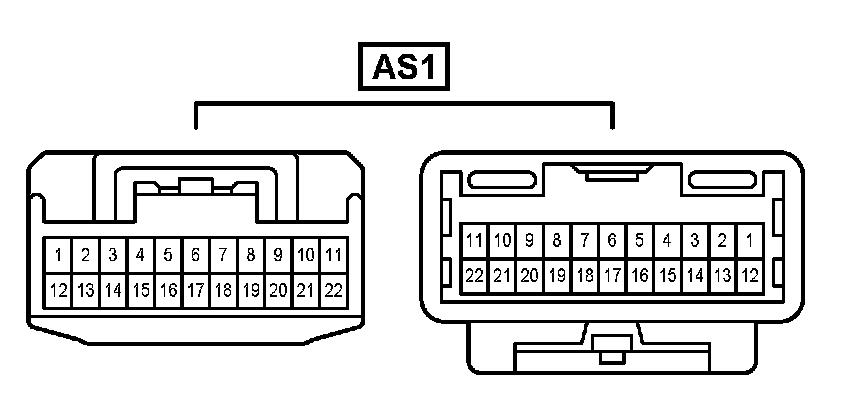

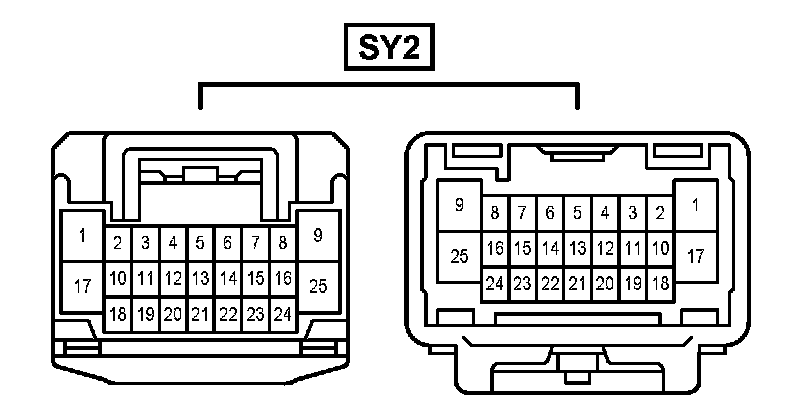

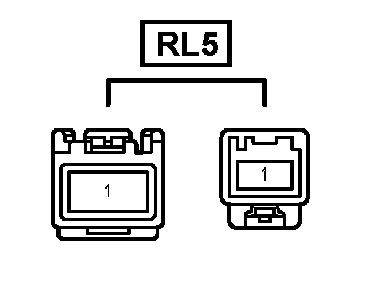

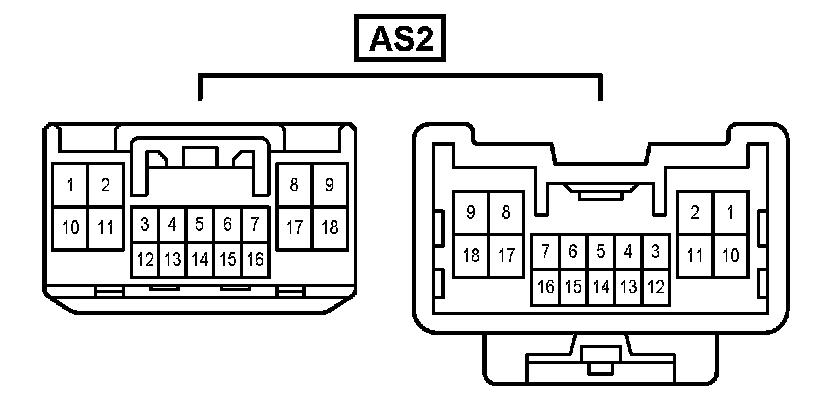

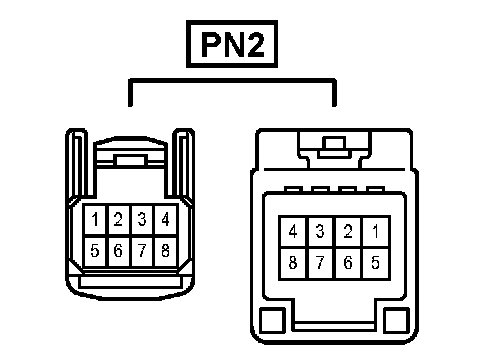

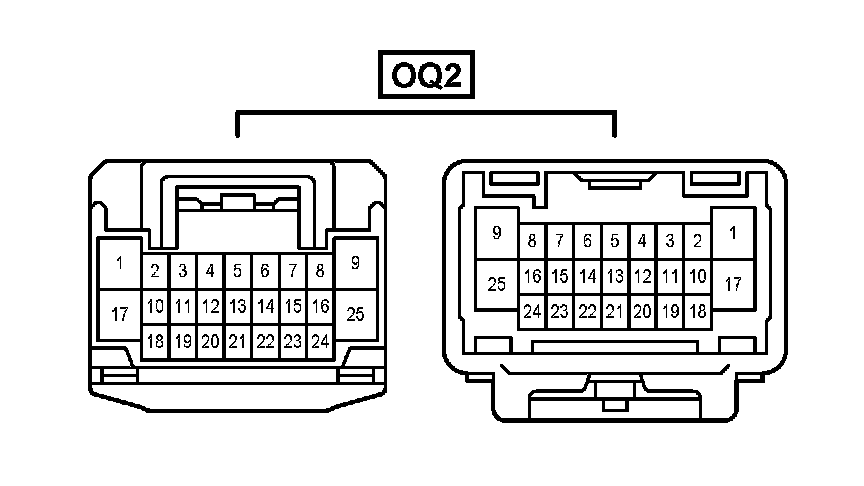

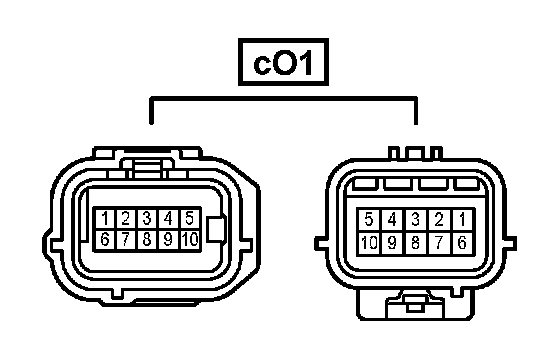

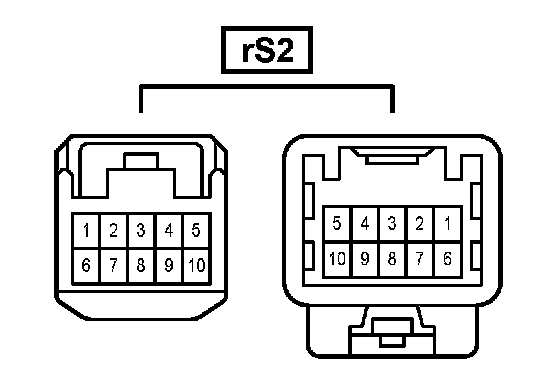

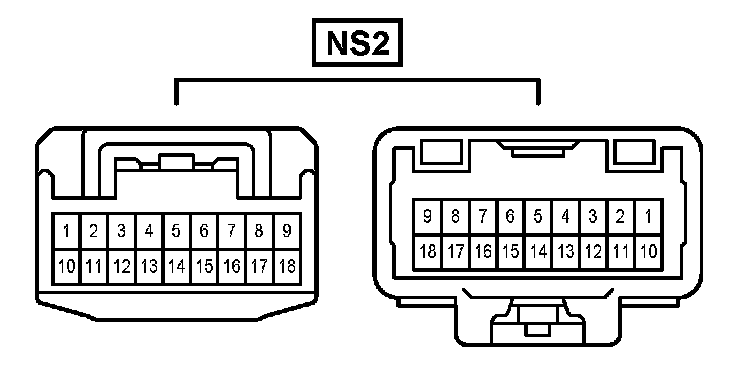

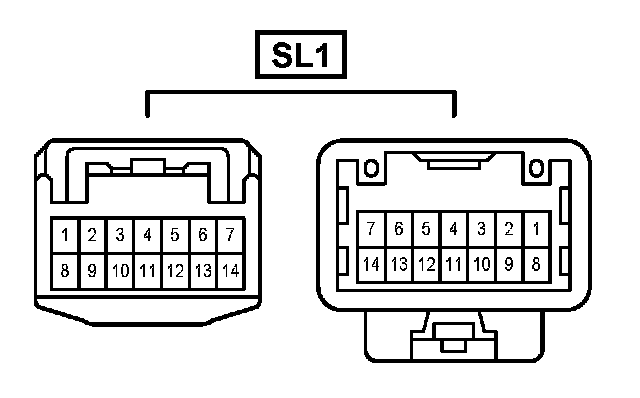

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector Colors:

Connectors with no indicated colors are white in color
