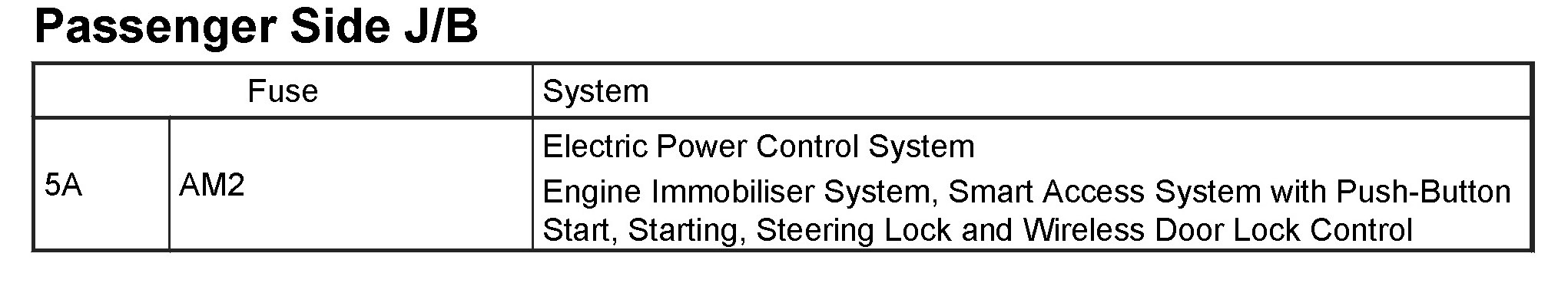

Passenger Side J/B

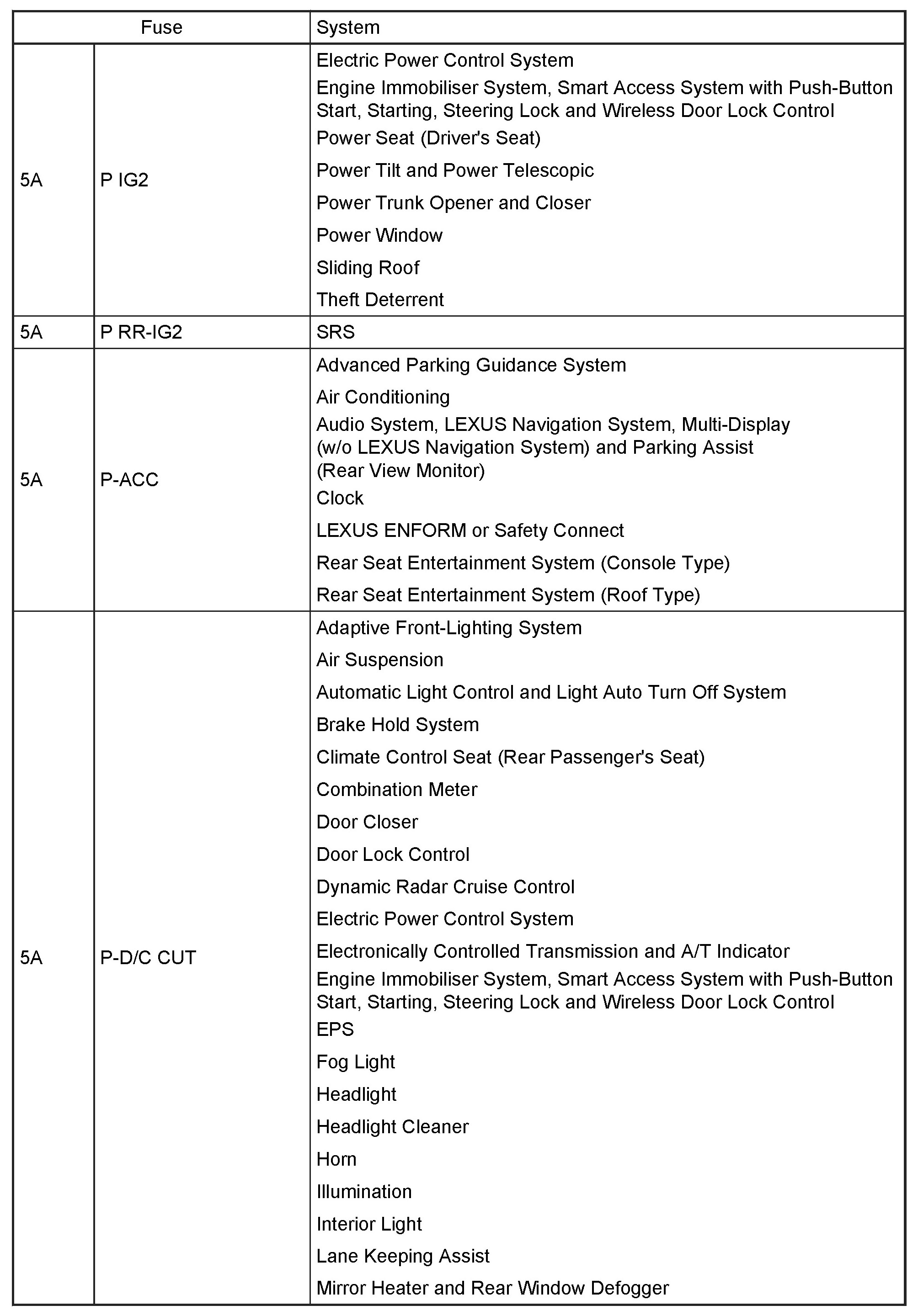

Passenger Side J/B:

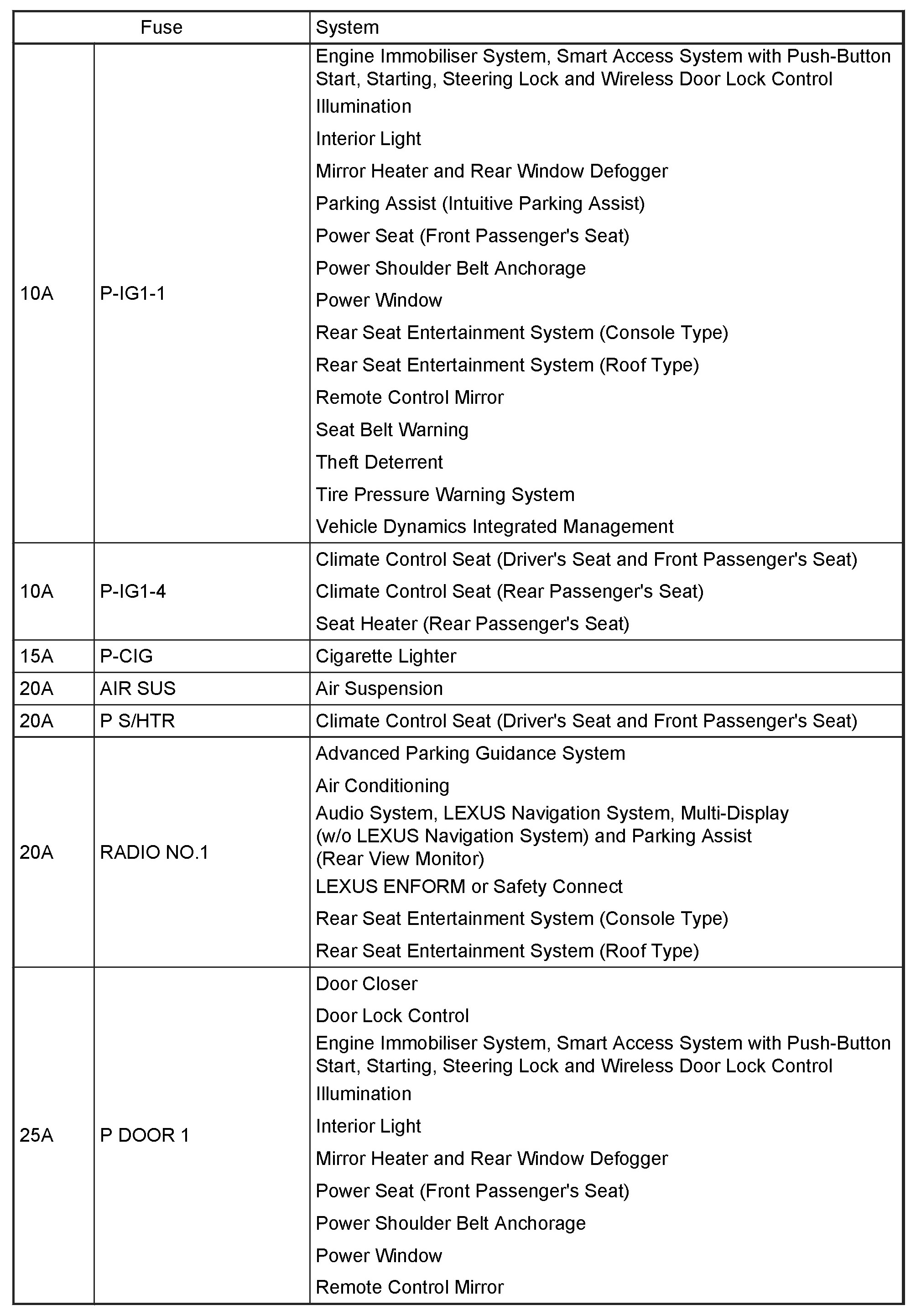

Passenger Side J/B:

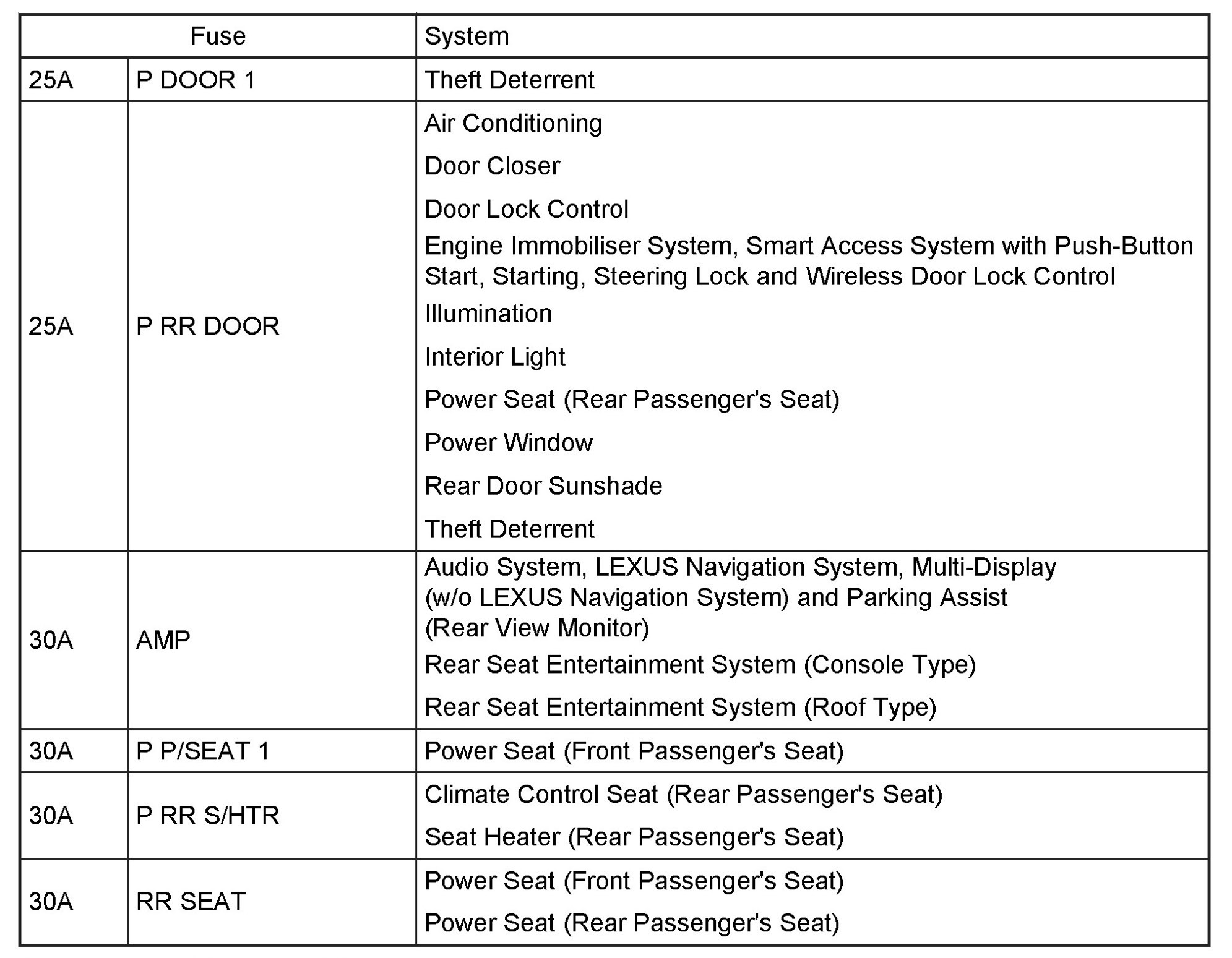

Passenger Side J/B:

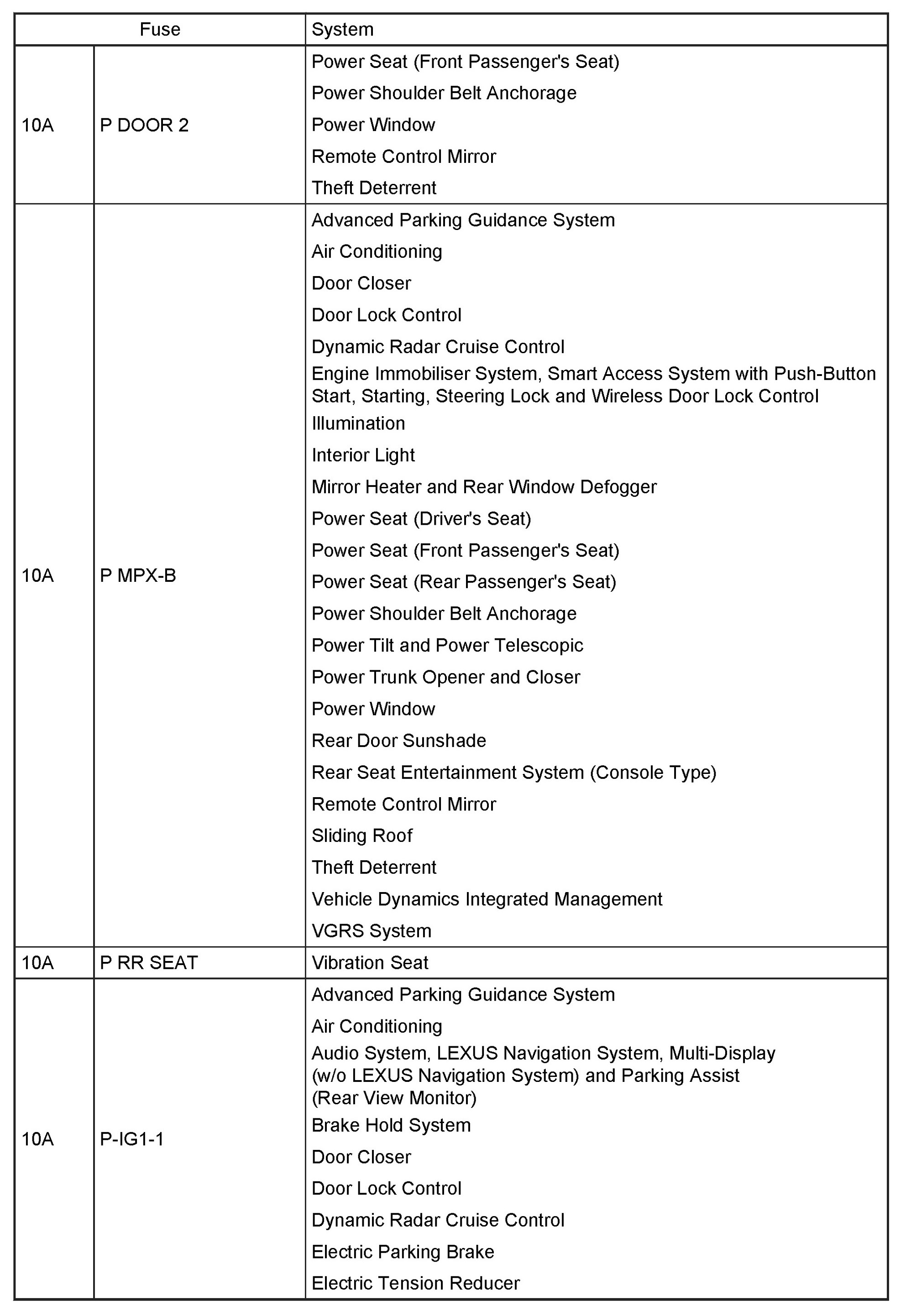

Passenger Side J/B:

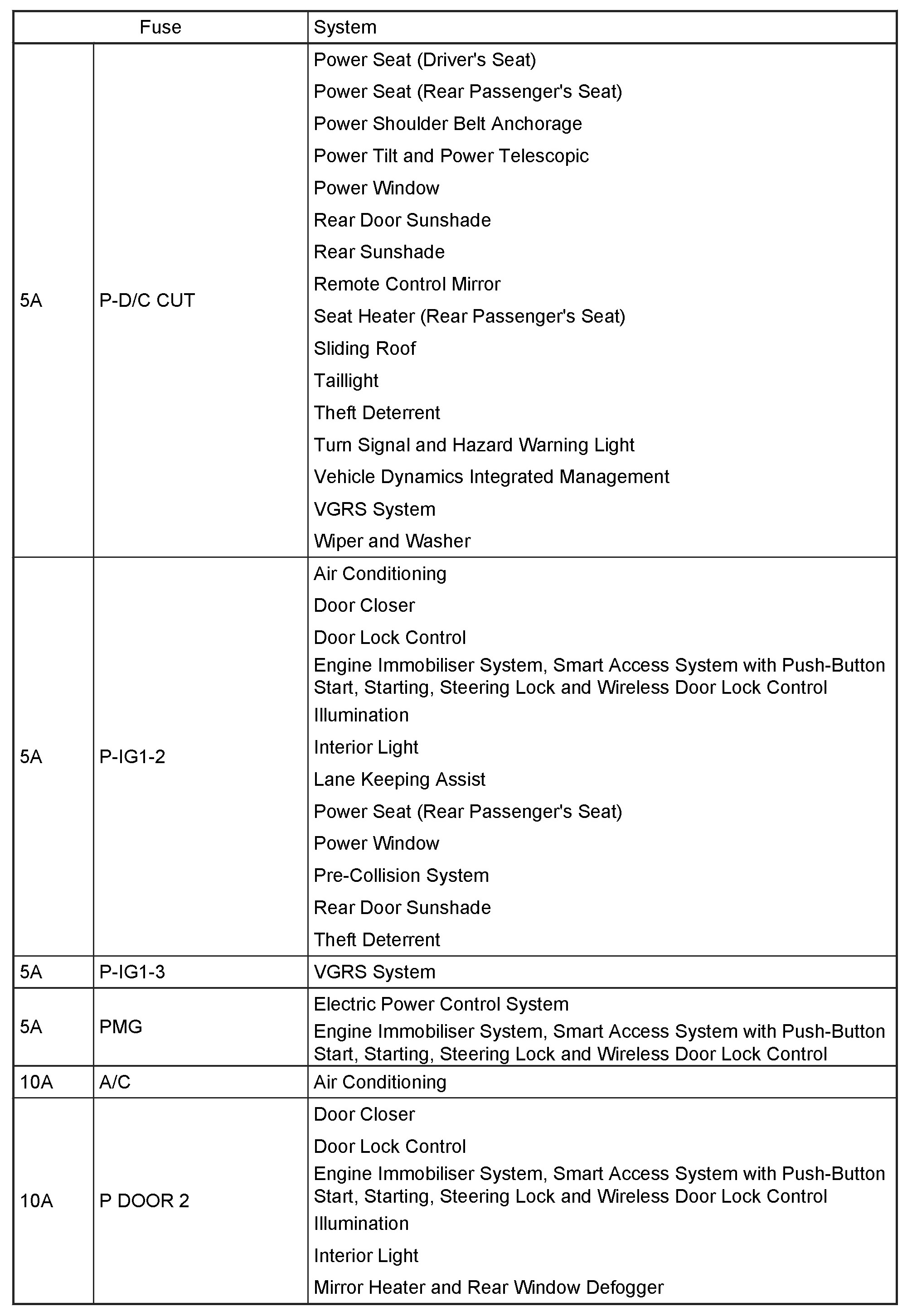

Passenger Side J/B:




Passenger Side J/B:
