Installation

OTHER SYSTEM: REAR POWER OUTLET SOCKET (for 4-Passenger with Ottoman): INSTALLATION

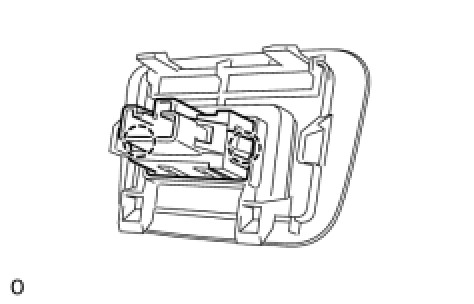

1. INSTALL POWER OUTLET SOCKET





(a) Attach the 2 claws to install the outlet socket to the box plate.

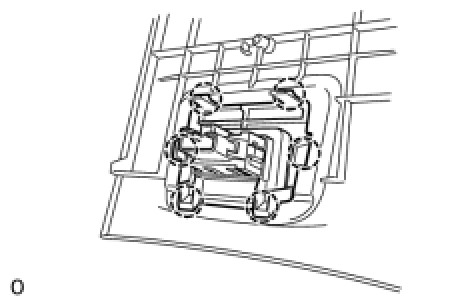

2. INSTALL CONSOLE BOX PLATE





(a) Attach the 6 claws to install the console box plate to the rear console end panel.

3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY Installation
