Installation

OTHER SYSTEM: POWER OUTLET SOCKET (for Ottoman): INSTALLATION

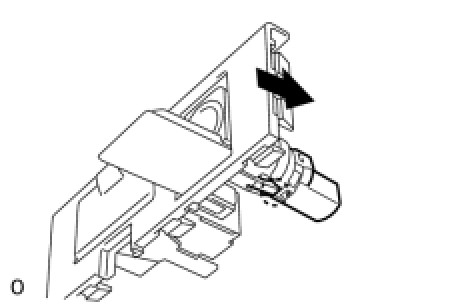

1. INSTALL POWER OUTLET SOCKET COVER NO.2

(a) Attach the 2 claws to install the socket cover.

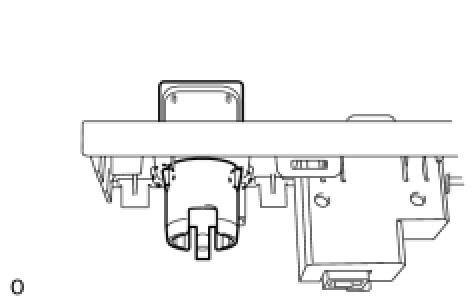

2. INSTALL POWER OUTLET SOCKET

(a) Attach the claw to install the socket.





3. INSTALL REAR SEAT CONSOLE ARMREST BASE Reassembly
