SERVICE SPECIFICATIONS: 1UR-FSE LUBRICATION: SERVICE DATA

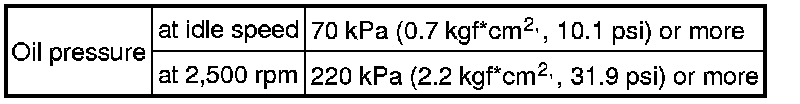

LUBRICATION SYSTEM

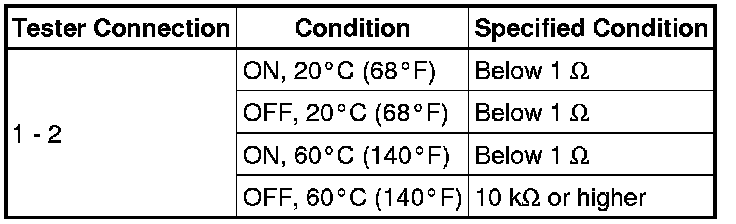

OIL LEVEL SENSOR

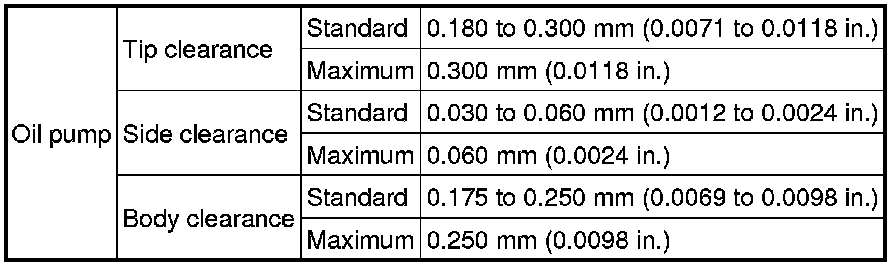

OIL PUMP
