Service Data





SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

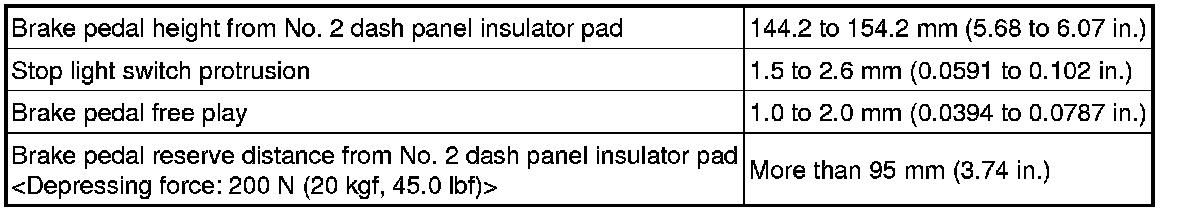

Brake Pedal

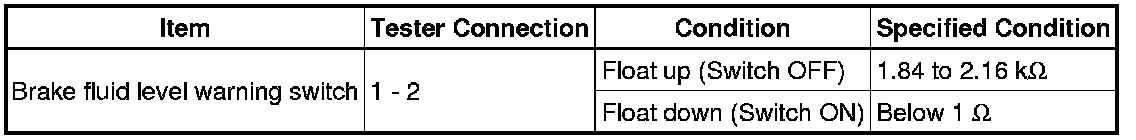

Brake Master Cylinder

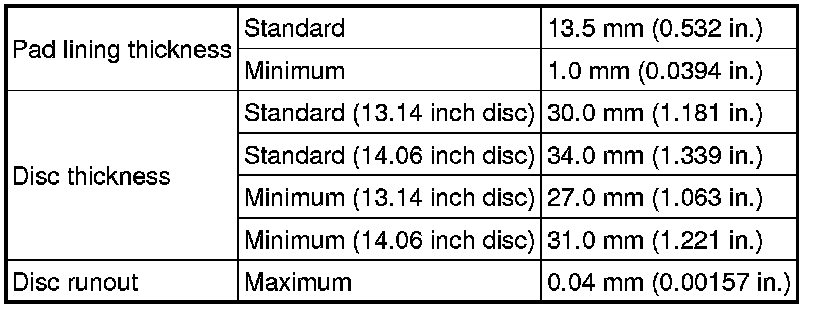

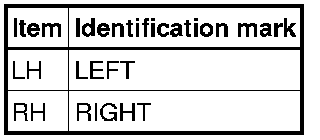

Front Brake (for 6-Pot Caliper)

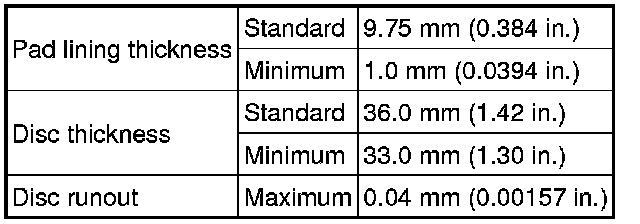

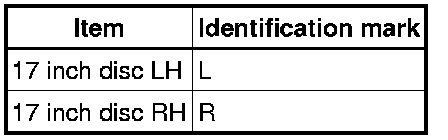

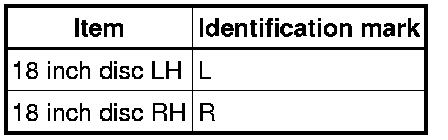

Front Brake (except 6-Pot Caliper)









Rear Brake
