Service Data





SERVICE SPECIFICATIONS: BRAKE CONTROL: SERVICE DATA

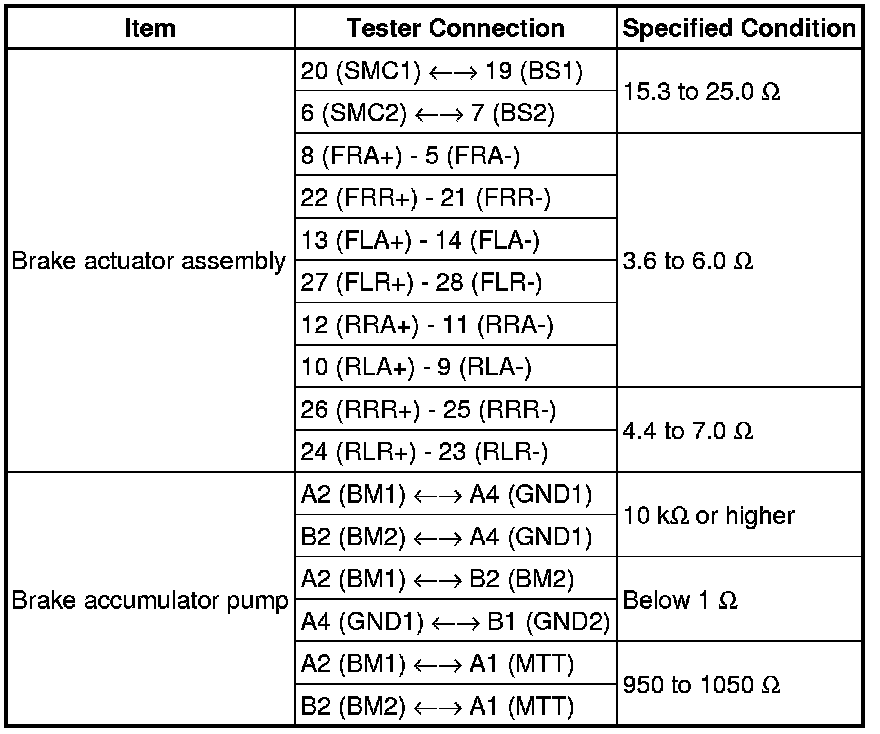

Brake Actuator

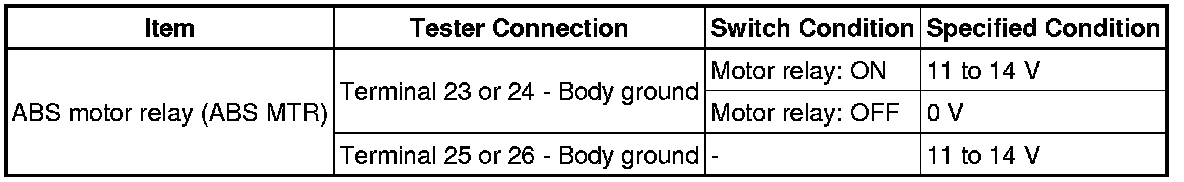

ABS Motor Relay (ABS MTR)

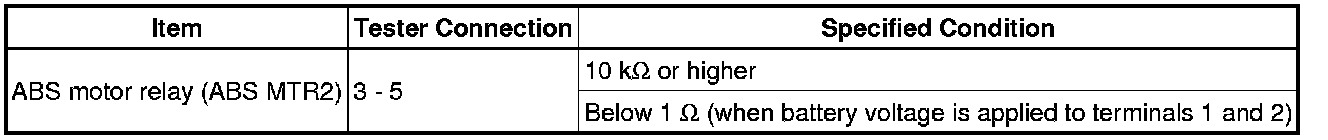

ABS Motor Relay (ABS MTR2)
