Installation

WIPER AND WASHER: RAIN SENSOR: INSTALLATION

1. INSTALL RAIN SENSOR TAPE

(a) If reusing the rain sensor:





Install new rain sensor tape.

(1) Remove the used rain sensor tape from the windshield glass or rain sensor.

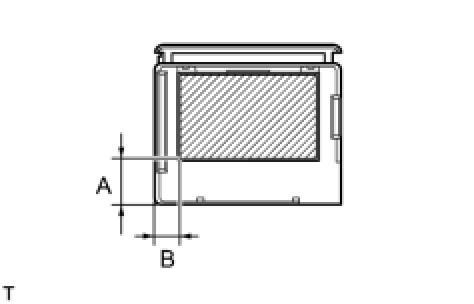

(2) Apply new rain sensor tape on the rain sensor lens surface indicated by the hatched area.

NOTICE:
* Keep the tape's exposed adhesive free from dust and fingerprints.
* Apply the tape exactly according to the specifications below.

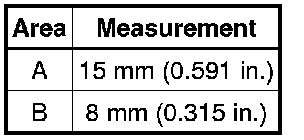

Specification:





2. INSTALL RAIN SENSOR

NOTICE:
* Make sure the adhesive between the bracket and windshield glass is normal.
* If there is any residue left from the rain sensor tape on the windshield, remove it.
* Clean the glass surface with a cloth or similar material.
* Make sure there are no air bubbles between the rain sensor and windshield.

(a) Peel the separation paper from the rain sensor tape.

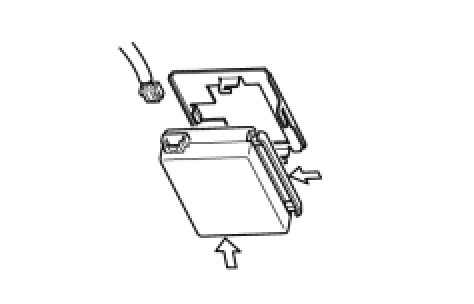

(b) Securely attach the rain sensor to the bracket.

(c) Push the stopper upward.

(d) Connect the connector.

3. INSTALL INNER REAR VIEW MIRROR ASSEMBLY Installation

4. INSTALL RAIN SENSOR COVER (w/o Lane Keeping Assist System) Installation

5. INSTALL RAIN SENSOR COVER (w/ Lane Keeping Assist System) Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
