Installation

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

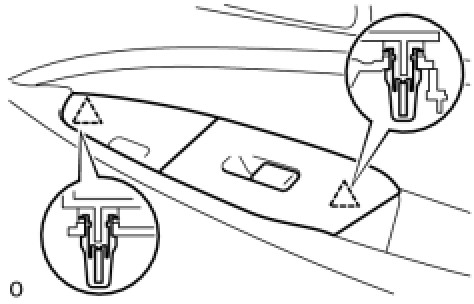

(a) Attach the 2 claws to install the power window regulator switch assembly.





(b) Connect the connector.





(c) Attach the 2 clips to install the armrest base panel assembly.
