Installation

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

1. INSTALL FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY

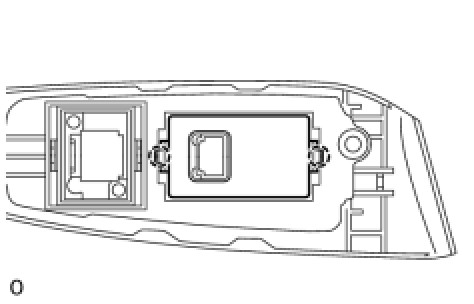

(a) Attach the 2 claws to install the power window regulator switch assembly.

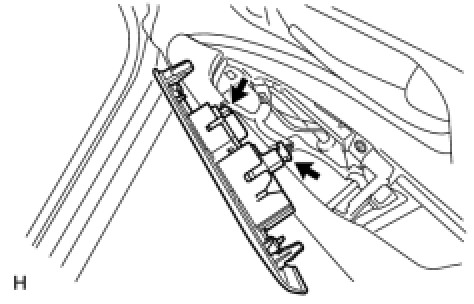

(b) Connect the 2 connectors.

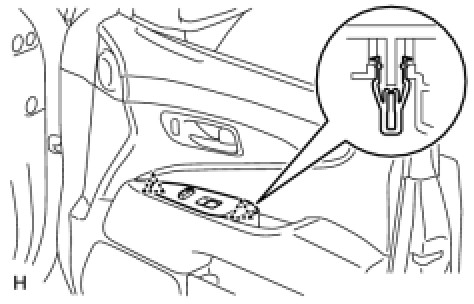

(c) Attach the 2 clips to install the armrest base panel assembly.
