AA80F Automatic Transmission

AA80F AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

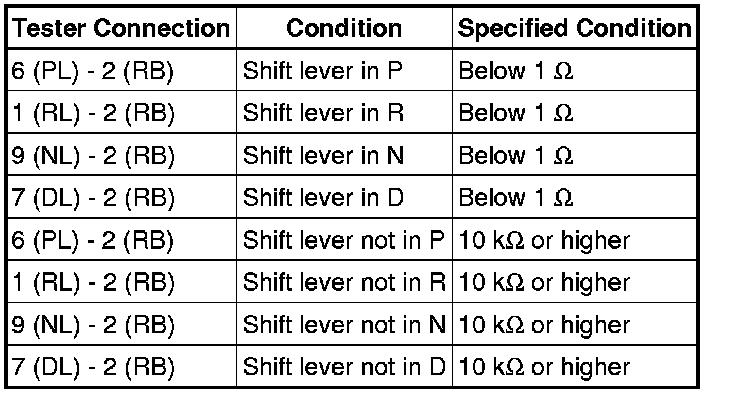

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the switch assembly.
