Removal

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR SEAT CUSHION ASSEMBLY LH (for Power Seat) Removal

3. REMOVE REAR SEAT CUSHION ASSEMBLY LH (for Ottoman) Removal

4. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type) Removal

5. REMOVE REAR SEATBACK ASSEMBLY LH (for Power Seat) Removal

6. REMOVE REAR SEATBACK ASSEMBLY LH (for Ottoman) Removal

7. REMOVE REAR SEATBACK ASSEMBLY LH (for Fixed Seat Type) Removal

8. REMOVE REAR DOOR SCUFF PLATE LH Removal

9. REMOVE REAR SEAT SIDE GARNISH LH Removal

10. REMOVE REAR AIRBAG SENSOR LH

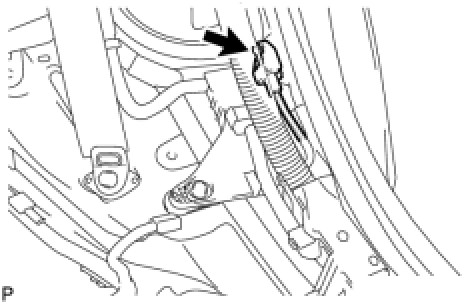

(a) Remove the bolt and rear airbag sensor.





(b) Disconnect the connector.
