Fuel Pressure Sensor/Switch: Testing and Inspection

1UR-FSE FUEL: FUEL PRESSURE SENSOR: INSPECTION

1. INSPECT FUEL PRESSURE SENSOR

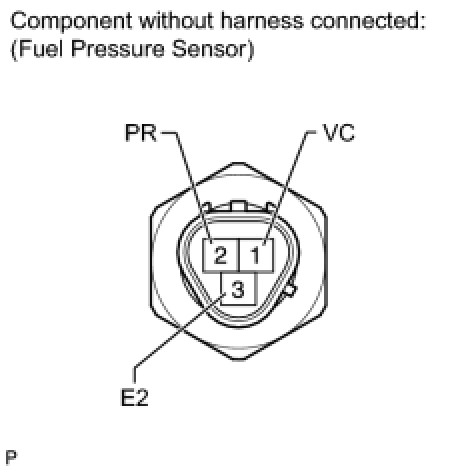

(a) Check the fuel pressure sensor output voltage.





(1) Measure the voltage according to the value(s) in the table below.

Standard voltage:





If the result is not as specified, replace the fuel pressure sensor.

HINT
The above voltage is output when pressure is not applied (0 kPa (0 kgf/cm2, 0 psi)) to the sensor.
