Removal

LIGHTING: HEIGHT CONTROL SENSOR: REMOVAL

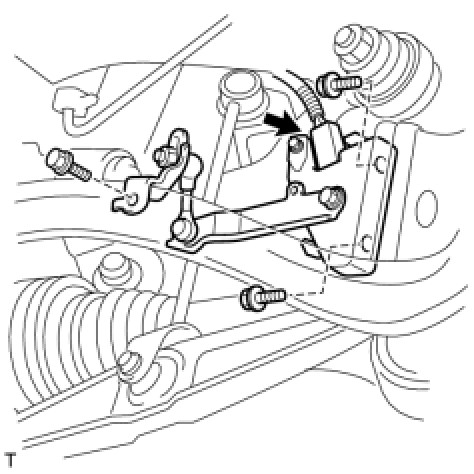

1. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY





(a) Disconnect the connector.

(b) Remove the 3 nuts and front height control sensor.

2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY





(a) Disconnect the connector.

(b) Remove the 3 nuts and rear height control sensor.
