Inspection

LIGHTING: HAZARD WARNING SWITCH: INSPECTION

1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

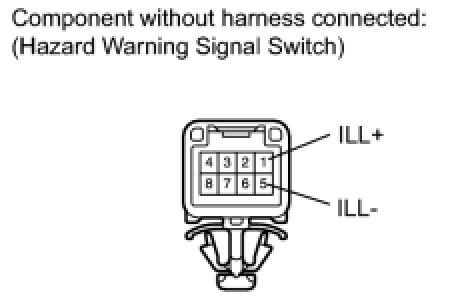

(a) LED illumination inspection





(1) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

OK:

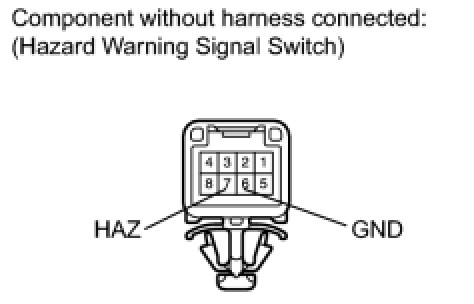

(b) Measure the resistance according to the value(s) in the table below.

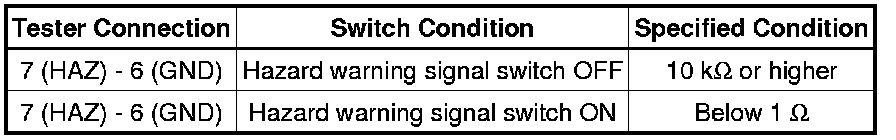

Standard resistance:





* If the result is not as specified, replace the hazard warning signal switch.
