Removal





LIGHTING: REAR DOOR COURTESY SWITCH: REMOVAL

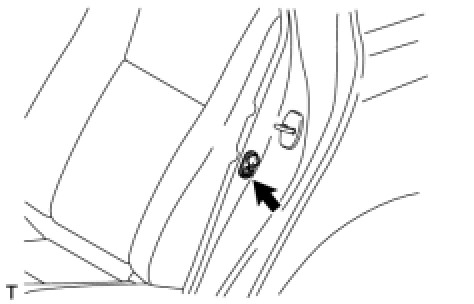

1. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY





(a) Remove the bolt and switch.

(b) Disconnect the connector.
