Room Temperature Sensor (for Front Side)

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSPECTION

1. INSPECT ROOM TEMPERATURE SENSOR

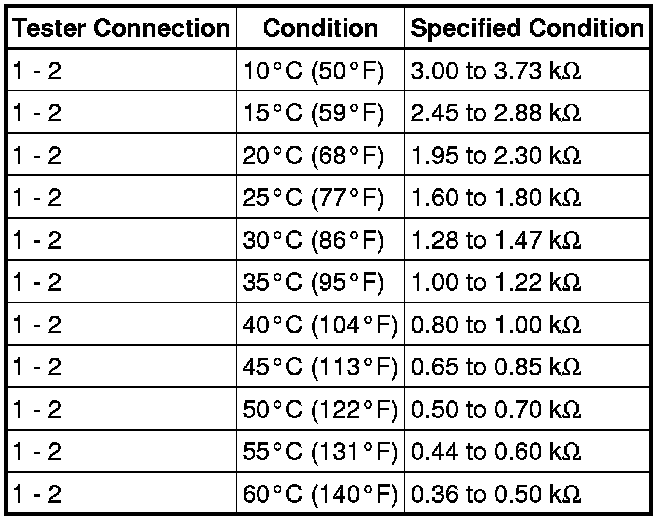

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NOTICE:
* Touching the sensor even slightly may change the resistance value. Hold the connector of the sensor.
* When measuring the resistance, the sensor temperature must be the same as the ambient temperature.

HINT

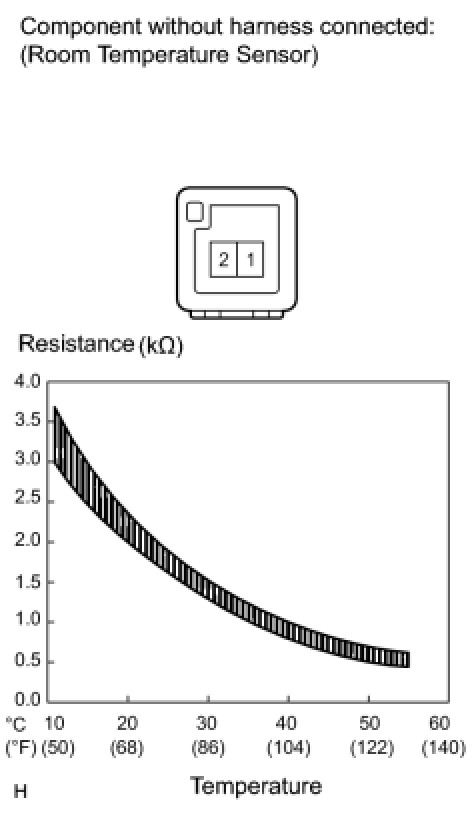

As the temperature increases, the resistance decreases (see the graph).

If the result is not as specified, replace the sensor.
